Johnson J70FLTLECS J70FLTLECS SHIFT ROD & LEVER

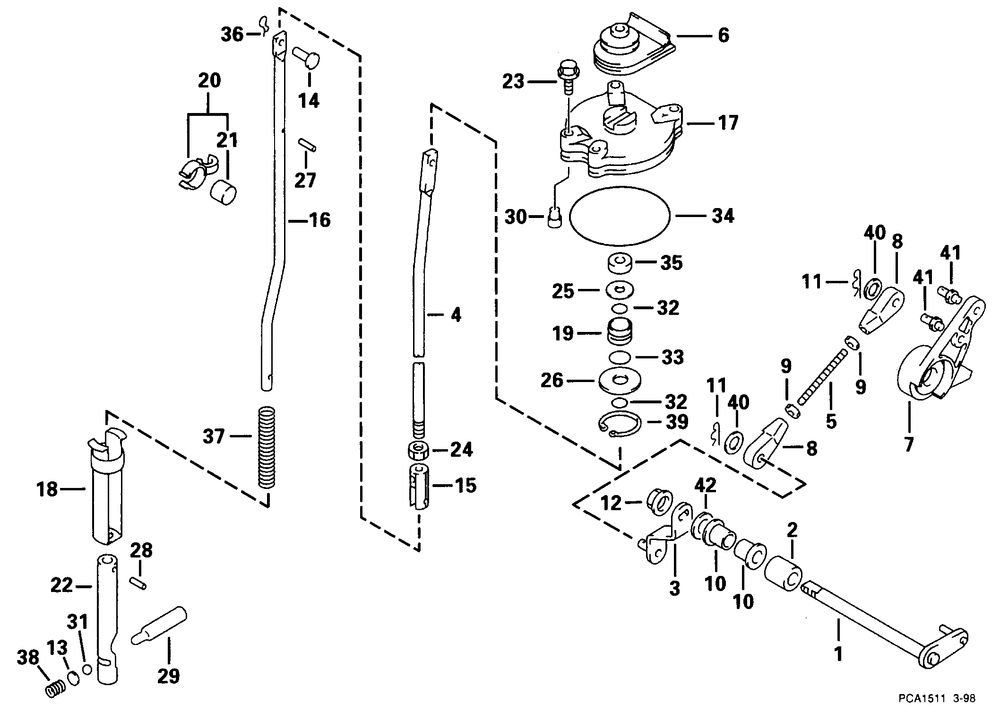

SHIFT ROD & LEVER
№ Наименование Примечание Кол-во
1 SHAFTCLUTCH 1
2 SPACER CL SHAFT 1
3 Детать 1
4 (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
5 Детать 1
6 BOOTCLUTCH ROD 1
7 LEVER CL CONTROL 1
8 CONNECTOR 2
9 NUTREMOCON CABLE 2
10 BUSH 2
11 CLIP 2
12 NUT 1
13 PLATECLUTCH NOTCH 1
14 SHFT RODCONN KIT70 1
15 (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
16 ROD SHIFT Part of Gearcase Service Assembly 1
17 HOUSING (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
18 (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
19 GUIDESHIFT ROD (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
20 MAGNET SET 1
21 (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
22 CAM CLUTCH (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
23 BOLT 6X20 3
24 NUT 1
25 Деталь 1
26 WASHER9X30X1.6 (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
27 PIN 1
28 PIN SPRING (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
29 PIN SPRING 1
30 (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
31 BALL 1
32 ORINGD:3.5 ID:7.8 (Included in SERVICE GEARCASE ASSEMBLY (Not shown). Included in GEARCASE SEAL KIT.) 2
33 ORINGID:14.8 (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
34 ORING (Included in SERVICE GEARCASE ASSEMBLY (Not shown). Included in GEARCASE SEAL KIT.) 1
35 OILSEAL (Included in SERVICE GEARCASE ASSEMBLY (Not shown). Included in GEARCASE SEAL KIT.) 1
36 PINSNAP 1
37 (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
38 SPRING (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
39 CIRCLIP 30MM (Included in SERVICE GEARCASE ASSEMBLY (Not shown).) 1
40 WASHERCONNECTOR 2
41 PINCONNECTOR 2
42 WASHER 1
