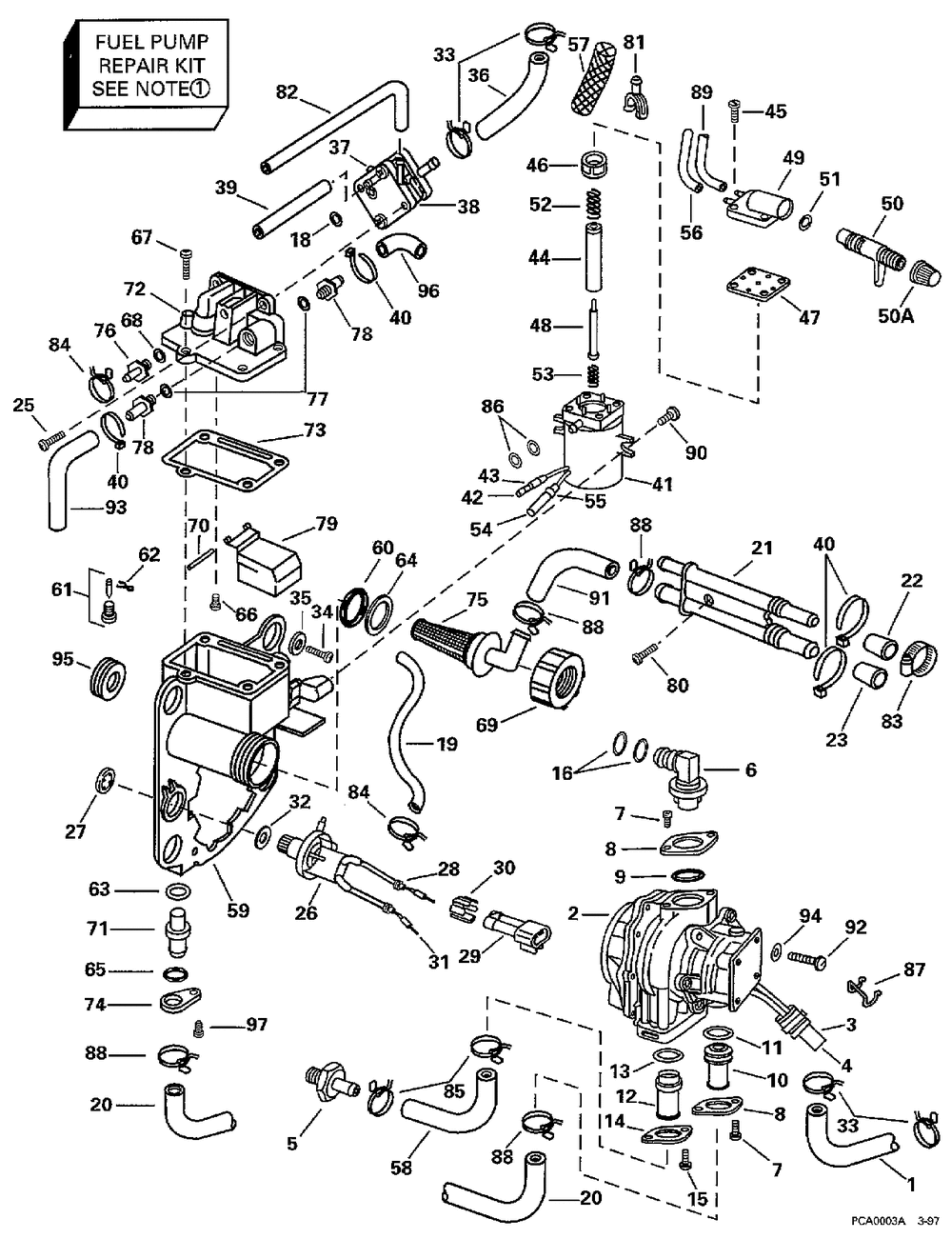

FUEL BRACKET & COMPONENTS

№	Наименование	Кол-во
1	HOSE	1
2	KIT AYF PUMP&LMTR (See Accessories Parts Catalog for Repair Kit Part Numbers.)	1
3	CONNECTOR	1
4	TERMSCKT (010 per pack)	4
5	PULSE LMTR-W/THRDS	1
6	ELBOWFUEL-OUT 6V6	1
7	SCREW	4
8	RETAINER	2
9	O-RING	1
10	FITTINGFUEL INLET	1
11	O-RING	1
12	FITTINGFUEL-INLET	1
13	O-RING	1
14	RETAINER	1
15	SCREW	2
18	O-RING (Also Available in Fuel Pump Repair Kit.)	1
20	HOSE	1
21	(WE Models.)	1
22	PLUG PUMP HSG	1
23	PLUG	1
25	SCREW	2
26	KIT AYVAC SWITCH	1
27	Детать	1
28	SEALLEAD WIRE	2
29	Детать	1
30	LOCKSECONDARY	1
31	TERMINALPIN	2
32	O-RING-SWITCH AY	1
33	CLAMPWIRE-.500	4
34	SCREW	4
35	WASHER	4
36	Детать	1
37	PUMP AYVAPOR	1
38	DIAPHRAPM-MAIN	1
40	TIE STRAP 100PK (100 per pack)	0
41	SOLENOID AYPRIMER	1
42	TERM. 521616-ADZ (010 per pack)	1
43	SLEEVEBULLET TERM	1
44	PLUNGER	1
45	SCREW	4
46	FILTER	1
47	GASKET PRIMER SOL	1
48	VALVE	1
49	COVER PRIMER SOL	1
50	VALVE 6PK (006 per pack)	1
50A	CAPVALVE	1
51	O-RING	1
52	SPRING VALVE	1
53	SPRINGPRIMER SOL	1
54	TERMINAL (005 per pack)	1
55	SLEEVESOCKET BLUE	1
57	SLEEVEBRAIDED-5" 5/8 x 5 in. (15.87 x 127 mm)	1
58	HOSE Included with P/N 5000836	1
59	BRACKET	1
60	SEAL-FUEL FILTER	1
61	FLOAT VLV/SEAT (005 per pack)	1
62	CLIPSPRING (Also Available in Carburetor Repair Kit.)	1
63	O-RING	1
64	GASKETFUEL FILTR	1
66	SCREW	1
67	SCREW	4
69	NUTFUEL FILTER	1
70	PINHINGE	1
71	NIPPLE	1
72	COVER VST 60DEG	1
73	SEAL	1
74	RETAINER	1
75	FUEL FLTR 65MIC	1
76	NIPPLE	1
77	O-RINGSCREW PLUG	2
78	NIPPLE	2
79	FLOAT & ARM AY	1
80	SCREW	1
81	PLUG HOLDER	1
83	CLAMP FUEL LINE	1
84	CLAMP Spring	2
85	CLAMPWIRE-.562	2
86	O-RING	2
87	RETAINER	1
88	CLAMPWIRE-.625	4
91	Детать	1
93	HOSE	1
94	WASHER	3
95	GROMMET	4
96	HOSE	1
0436695	SEPARATOR AYVAPOR	1
