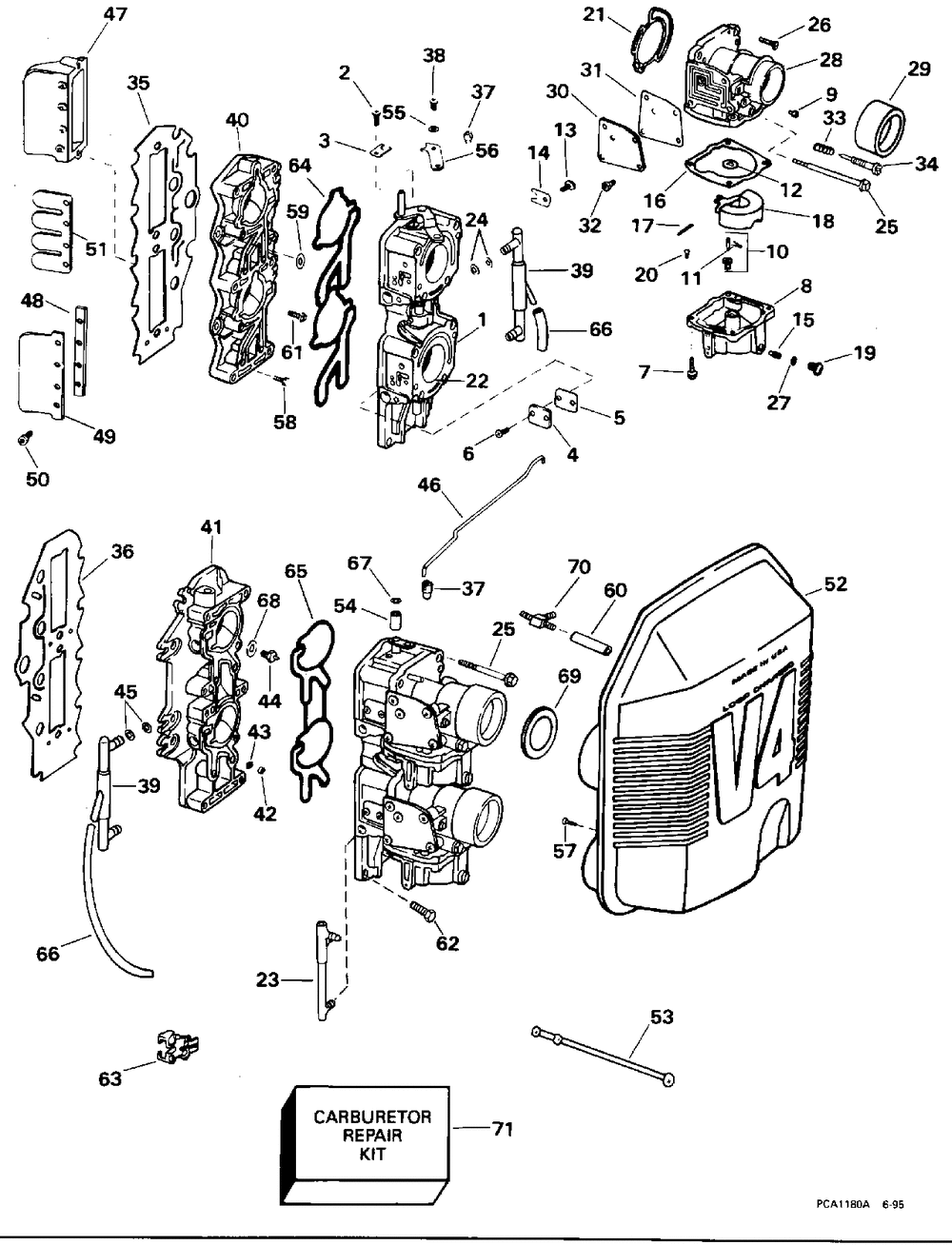

Johnson J90ELEDR J90ELEDR CARBURETOR & INTAKE MANIFOLD
CARBURETOR & INTAKE MANIFOLD
№ Наименование Примечание Кол-во
1 Детать 1
1 Детать 1
1 BODY AYTHROTTLE 1
1 BODY AYTHROTTLE 1
2 SCREW-ADJ LEVER 1
3 CLIP 1
4 COVER-CAL. POCKET 2
5 GASKET-CAL.POCKET (Also Available in Carburetor Repair Kit.) 2
6 SCREW-CAL COVER 4
7 SCREW 8
8 CHAMBER AYFLOAT 2
9 ORIFICE PLUG .027 2
9 ORIFICE tahos_20 2
10 FLOAT VALVE & SEAT (Also Available in Carburetor Repair Kit.) 2
11 CLIPSPRING (Also Available in Carburetor Repair Kit.) 1
12 GASKET CARB 5PK (Also Available in Carburetor Repair Kit.) (005 per pack) 2
14 CLIP 2
15 ORIFICE PLUG 58D 2
15 ORIFICE 69D 2
16 GASKETFLOAT BOWL (Also Available in Carburetor Repair Kit.) 2
17 PINHINGE (Also Available in Carburetor Repair Kit.) 2
18 FLOAT&ARM AY (Also Available in Carburetor Repair Kit.) 2
19 SCREW PLUG 2
20 SCREW 2
21 SEALCARBURETOR (Also Available in Carburetor Repair Kit.) 2
22 SCREENFUEL 2
23 MANF AYFUEL INLET 1
23 MANF AYFUEL INLET 1
24 O-RING 4
25 SCREW DPS manifold to trim manifold 4
27 O-RINGSCREW PLUG 2
28 (100WPX Models Only.) 2
28 Деталь 2
29 SEALAIR SILENCER (100WPX Models Only.) 1
30 COVER 1
31 GASKET (Also Available in Carburetor Repair Kit.) 1
32 SCREW 5
33 SPRING 2
34 VALVENEEDLE 2
35 GASKETINTAKE MANF (Included in POWERHEAD GASKET SET.) 1
36 GASKETINTAKE MANF (Included in POWERHEAD GASKET SET.) 1
37 RETAINER 2
38 SCREW 1
39 TUBEBALANCE 2
40 MANIFOLD AYINTAKE 1
41 MANIFOLD AYINTAKE 1
42 VALVE AYCHECK Cylinders 5 & 6 4
43 SCREEN 4
44 NIPPLE 2
46 LINK 1
47 Детать 4
48 SHIM-LEAF VALVE 1
49 LEAF STOP 2
50 SCREW 8
51 LEAF VALVE 2
52 AIR SILENCER AY 1
53 STRAPAIR SILENCER 4
54 ROLLER&SLEEVE AY 1
55 WASHER 1
56 LEVER 1
58 SCREW 14
59 WASHER Negative battery stud to center frame 4
61 SCREW 8
62 SCREW-IMP HSG 4
63 RETAINERBAL TUBE 4
64 SEALINTAKE MANF-P 1
65 SEALINTAKE MANF-S 1
67 O-RING 1
68 WASHERFIBER 2
69 SEAL 4
70 TEE See "Oil Recirculation System" 1
71 KIT AYCARB REPAIR 1
0433690 CARBURETOR AY Not Shown 1
0433691 Not Shown 1
0433692 CARBURETOR AY Not Shown . 1
0433693 CARBURETOR AYSTBD Not Shown 1
