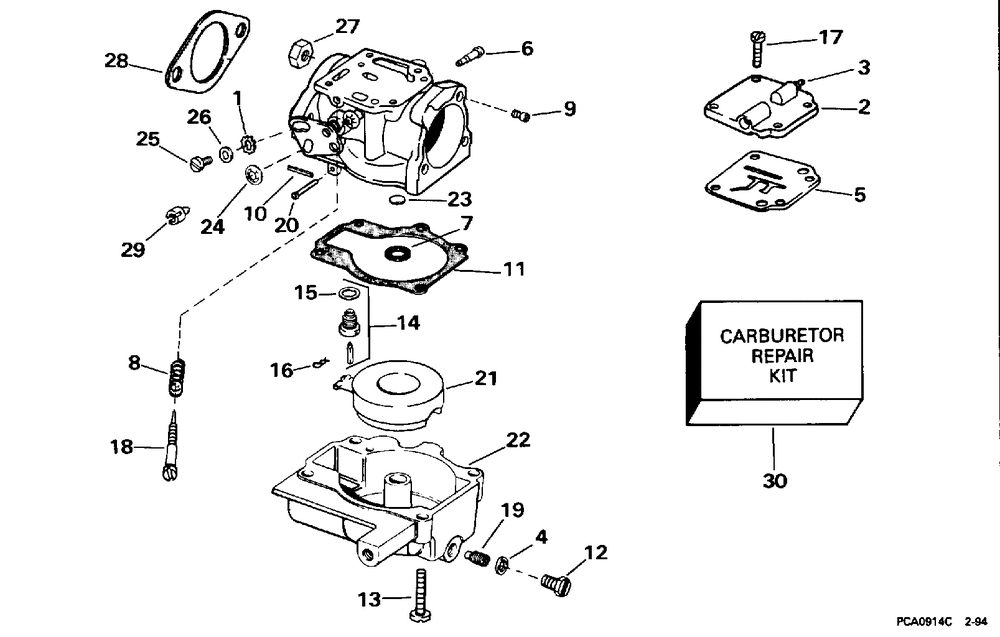

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | LOCKWASHER | 1 | |
| 2 | COVER & NIPPLE ASY | 1 | |
| 3 | NIPPLECARB BODY | 1 | |
| 4 | WASHERFIBER | 1 | |
| 5 | GASKET (Also Available in Carburetor Repair Kit.) | 1 | |
| 6 | NIPPLE | 1 | |
| 7 | GASKET CARB 5PK (005 per pack) | 1 | |
| 8 | SPRING | 1 | |
| 9 | ORIFICE PLUG-57D (55 Models.) | 1 | |
| 10 | ROLL PIN | 2 | |
| 11 | GASKET 5PK (Also Available in Carburetor Repair Kit.) (005 per pack) | 1 | |
| 12 | SCREW | 1 | |
| 13 | SCREW | 4 | |
| 14 | FLOAT VLV/SEAT (005 per pack) | 1 | |
| 15 | WASHER (Also Available in Carburetor Repair Kit.) | 1 | |
| 16 | CLIPSPRING (Also Available in Carburetor Repair Kit.) | 1 | |
| 17 | SCREW | 4 | |
| 18 | VALVENEEDLE | 1 | |
| 19 | ORIFICE PLUG 67D | 1 | |
| 20 | PIN (Also Available in Carburetor Repair Kit.) | 1 | |
| 21 | FLOAT & ARM (Also Available in Carburetor Repair Kit.) | 1 | |
| 22 | CHAMBER&NIPPLE AY | 1 | |
| 23 | PLUG (Also Available in Carburetor Repair Kit.) | 1 | |
| 24 | FASTENER (Also Available in Carburetor Repair Kit.) | 1 | |
| 25 | SCREW-ADJ LEVER | 1 | |
| 26 | WASHER | 1 | |
| 27 | NUT | 2 | |
| 28 | GASKET 5PK (Also Available in Carburetor Repair Kit.) (005 per pack) | 1 | |
| 29 | RETAINER | 1 | |
| 30 | KIT AYCARB REPAIR | 1 | |
| 0435376 | CARBURETOR AY Not Shown | 1 |
