INTAKE MANIFOLD - "C E M R" SUFFIX MODELS

Корзина пуста

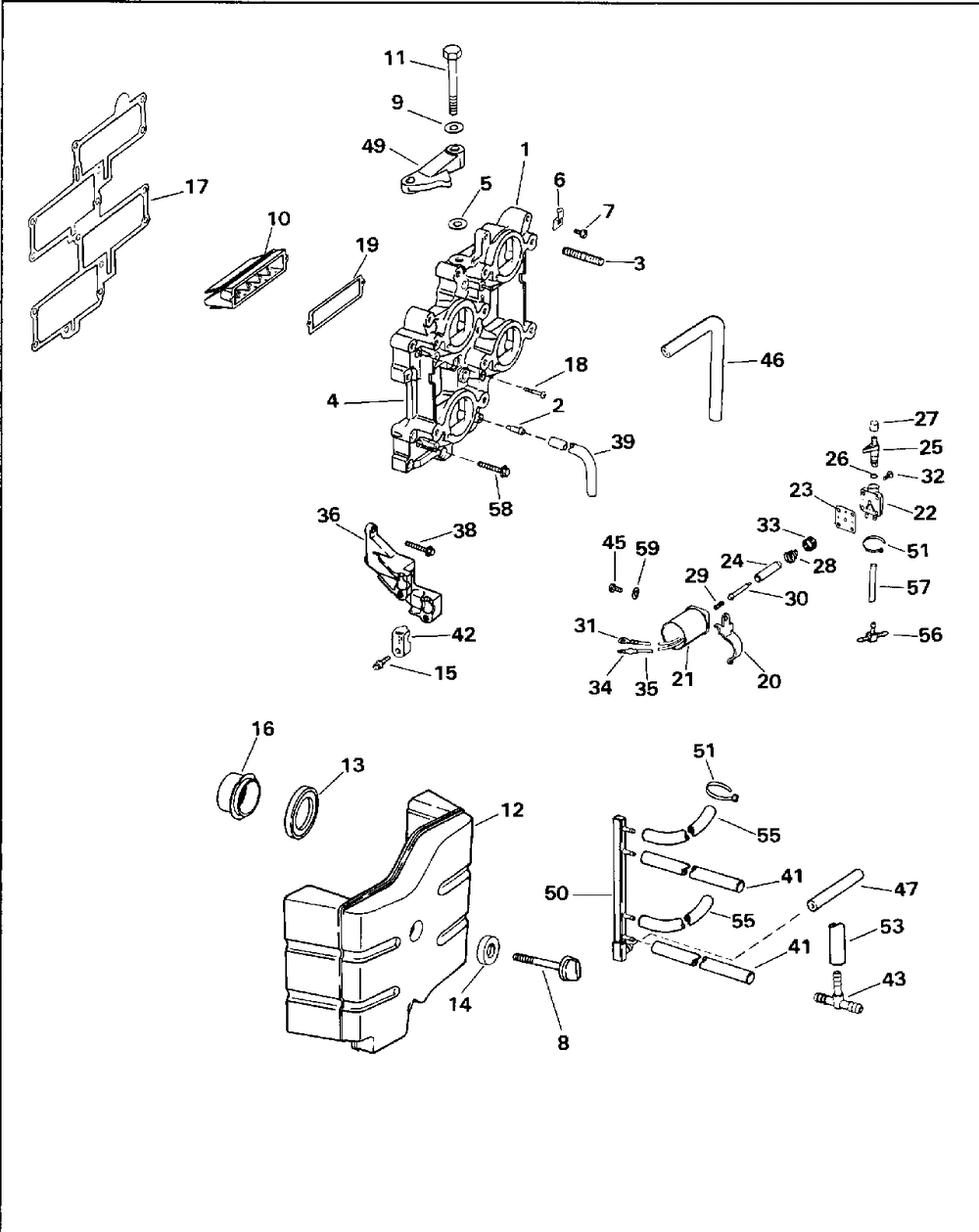

Johnson J140TXARC J140TXARC INTAKE MANIFOLD - "C E M R" SUFFIX MODELS
INTAKE MANIFOLD -
№ Наименование Примечание Кол-во
1 MANIFOLD AYINTAKE 120 125ESX Models Only 1
1 140 Models Only 1
2 NIPPLE 1
3 Детать 4
4 NIPPLE 4
5 WASHER SHIF LVR 1
6 POINTERTIMING 1
7 SCREW 1
8 KNOB & SCREW AY. 2
9 WASHER 1
10 REED BOX 4
10 120 125ESX Models Only 4
11 SCREWSHOULDER 1
12 Детать 1
13 SEAL 4
14 SEAL AIR BOX 2
15 SCREW 2
16 SLEEVE 4
17 GASKET (Included in POWERHEAD GASKET SET.) 1
18 SCREW (005 per pack) 8
18 SCREW 8
19 GASKET (Included in POWERHEAD GASKET SET.) 4
19 GASKET 4
20 BRACKETPRMR SOL 1
21 KIT AYPRMR SOL 1
22 COVER&GASKET AY 1
23 GASKET 1
24 PLUNGER 1
25 VALVE 6PK (006 per pack) 1
26 O-RING 1
27 CAPVALVE 1
28 SPRING VALVE 1
29 SPRINGPRIMER SOL 1
30 VALVE 1
31 TERM. 61867-2 0.250 in. (6.3 mm) diameter 1
32 SCREW 4
33 FILTER 1
34 TERM. 521616-ADZ (010 per pack) 1
35 SLEEVEBULLET TERM 1
36 BLOCKTRUNNION 1
37 SCREW 1
38 SCREW-IMP HSG 2
39 Детать 1
41 Детать 2
42 COVERTRUNION 2
43 TEE 1
44 Детать 1
45 Детать 2
47 Детать 1
49 THROTTLE CAM 1
50 MANIFOLD AYFUEL 1
51 TIE STRAP 100PK (100 per pack) 1
52 TIE STRAP 100PK (100 per pack) 0
53 HOSE 1
55 HOSE 2
56 TEE 2
58 SCREW-MANIFOLD-LG 6
59 WASHER 2
