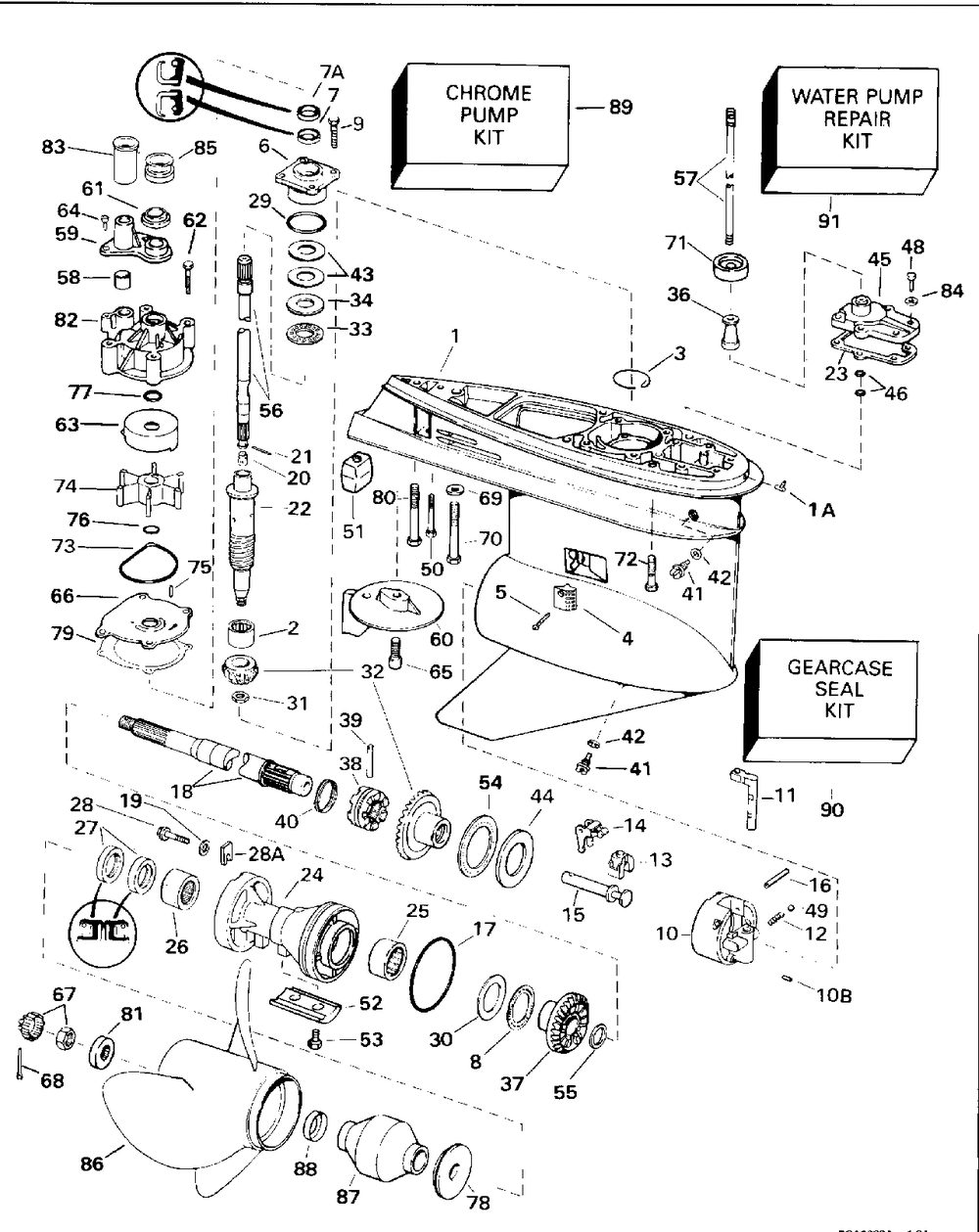

GEARCASE - STANDARD ROT.- 20"(150&175SL ONLY) ALL 25" MODELS

Корзина пуста
Наименование Примечание Кол-во
1 GCASE & BRG AY"O" 1
1A NIPPLE 1
2 ROLLER BRG AY 1
3 RINGRETAINER Models with Pinion Bearing Retaining Ring 1
4 SCREENWATER INLET 2
5 SCREW 2
6 DS BRG HSG&SEAL AY Early Production Double Seal 1
7 OIL RETAINER Contents of GEARCASE SEAL KIT 1
7A OIL RETAINER Contents of GEARCASE SEAL KIT 1
8 BEARING AYTHRUST 1
9 SCREW Contents of GEARCASE SEAL KIT 4
10 HSG.& BEARING AY 1
10B PIN 1
11 DETENT 1
12 SPRING 1
13 CRADLE-SHIFT 1
14 SHIFTER-LEVER 1
15 SHAFT-SHIFTER 1
16 PIN-SHIFTER ARM 1
17 O-RING Contents of GEARCASE SEAL KIT (010 per pack) 1
18 PROPSHAFT AYSERV 1
19 WASHER 2
20 RETAINERDR SFT 1
21 PINROLL 1
22 DRIVESHAFTLOWER 1
23 GASKET (Contents of GEARCASE SEAL KIT.) (005 per pack) 1
24 PS BRG HSG&SEAL AY 1
25 NEEDLE BRG 1
26 BEARING AYNEEDLE 1
27 SEAL Contents of GEARCASE SEAL KIT 2
28 SCREW BRG CARRIER 2
28A RETAINING TAB 2
29 O-RING (Contents of GEARCASE SEAL KIT.) 1
30 THRUST WASHER 1
31 NUT PINION 1
32 GEARSETV6 FWD&PIN 1
33 THRUST BRG AY 1
34 THRUST WASHER 1
36 SPACER-SHIFT ROD 25 30 in. Models 1
37 GEARREVERSE .54 1
38 SHIFTER-CLUTCH DOG 1
39 PIN 1
40 SPRING 1
41 DRAIN SCREW Contents of GEARCASE SEAL KIT 2
42 WASHER-10 PK (010 per pack) 1
43 SHIM-PINION-003 0
43 SHIM-PINION-004 0
43 SHIM 005 0
44 THRUST WASHER 1
45 COVER AYSHIFT ROD 1
46 O-RING (005 per pack) 2
48 SCREW (005 per pack) 6
49 BALL 1
50 SCREW ANODE 1
51 ANODE&INSERT AY 1
52 ANODE & INSERT AY 1
53 SCREW 2
54 THRUST BRG-FWD GR 1
55 WASHERTHRUST 1
56 25IN D/S KIT UP 1
56 KITUPPER D/S-20" 1
57 100WPX Models Only 1
57 RODSHIFT 20" (105WEL Models Only.) 1
58 GROMMET 3.3 L models 1
59 COVERIMPELLER HSG 3.3 L models 1
60 TABTRIM-STD DE200 1
61 GROMMET 1
63 CUPIMP HSG-CHROME Chrome 1
63 CUPIMP HOUSING Stainless 1
64 SCREW 2
65 SCREW 1
66 PLATEWATER PUMP Stainless 1
66 PLATE WATER PUMP Chrome 1
67 NUT&KEEPER AYPROP 1
68 COTTER PIN 10 PK (010 per pack) 1
69 WASHER 1
70 SCREW 0
71 GROMMET EXH HSG 1
72 SCREW 4
73 SEAL 1
74 KIT AYIMPELLER (Contents of Water Pump Repair Kit.) 1
75 IMP KEY-WHITE 1
76 O RING 1
77 O-RING (005 per pack) 1
78 BUSHINGTHRUST 1
78 BUSHINGTHRUST 1
79 GASKETWTR PMP 5PK Contents of GEARCASE SEAL KIT (005 per pack) 1
80 SCREW 1
81 SPACER PROP NUT 1
82 HOUSING AYIMPLR 1
83 SLEEVE 1
84 WASHER 6
85 GROMMET 1
87 PROP HUB SHTR 1
87 BUSHING AYPROP 1
88 SLEEVE 1
89 CUP & PLATE AY Optional 1
90 KIT AYSEAL-GC 2 Single Lip Upper Driveshaft Seals 1
91 KIT AYWATER PUMP 1
0435478 G-CASE*V6/STD/OFFS Not Shown 1
