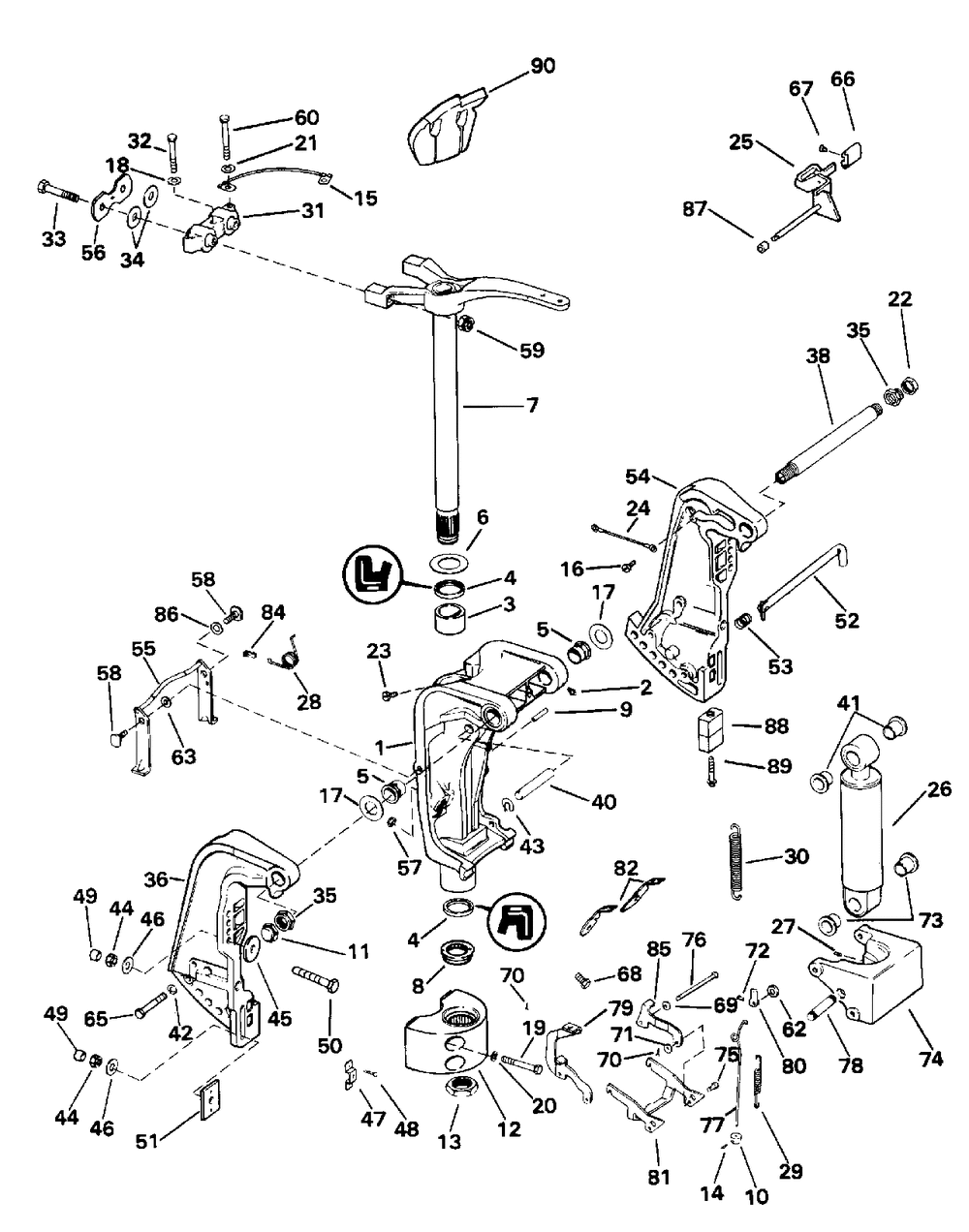

MIDSECTION - MANUAL TILT

№	Наименование	Кол-во
1	BRKT AY-SWIVEL	1
2	FITTING LUBE	4
3	BUSHING SWIV BK	1
4	SEAL SWIV BRKT	2
5	BUSHING SWIV BK	2
6	THRUST WASHER	1
7	STEER ARM & SHAFT	1
8	KEEPER70HP-V6	1
9	ROLL PIN	1
10	COLLAR	1
11	CAPSTEER-TUBE	1
12	Детать	1
13	LOCK NUT	1
14	SCREW	1
15	Детать	1
16	SCREW	1
17	THRUST WASHER	2
18	WASHER	1
19	SCREW	4
20	LOCKWASHER (WRL Models Only. 20 in. (508mm) Models Only.)	4
21	LOCKWASHER	2
22	NUT-STEERING WIPER Recommended to Prevent Corrosion in Salt Water Usage	1
24	LEAD AYBONDING	1
25	LEVER & SHAFT AY	1
26	Детать	1
27	SCREW-BRKT-GR HSG	1
28	SPRING	1
29	Детать	1
30	SPRING	2
31	MOUNT AYRUBBER	1
32	SCREW	1
33	SCREW	2
34	WASHER	2
35	LOCKNUT	0
36	STERN BRACKET AY	1
38	TILT TUBE SST	1
40	PIN TILT CYL UP	1
41	BUSHING-UPR TILT	2
43	SPRING CLIP 2PK (002 per pack)	2
44	NUT (004 per pack)	4
45	WASHER 5 PK (005 per pack)	2
46	WASHER 5 PK (005 per pack)	2
47	RETAINER Optional	2
48	SCREW RET TO PLATE Optional	4
49	CAP-TRAN SCR (004 per pack)	4
50	3 1/2" TRNSM BOLT Optional	2
50	4 3/4" TRNSM BOLT	2
50	6" TRNSM BOLT	0
50	5" TRNSM BOLT Optional	0
50	4 3/4" TRNSM BOLT	0
51	SQ PLATE 4PK (004 per pack)	2
52	ROD AYTHRUST	1
53	SPRING THRS ROD	1
54	Детать	1
55	Детать	1
56	RETAINING PLATE	1
57	NUT	2
58	SHOULDER SCREW	2
59	LOCKNUT	2
60	SCREW	2
62	SPACER	1
63	WASHER	2
65	SCREW	4
66	KNOB-TILT LOCK	1
67	SCREW	1
68	SCREW BRKT TO ARM	2
69	WASHER	1
70	COTTER PIN	3
71	WASHER	2
72	SCREW-BELLCRK	1
73	BUSHING TILT CY	2
74	SPACER	1
75	PIN	2
76	PIN	1
77	ROD-REV LOCK REL	1
78	PIN	1
79	LINK	1
80	BELLCRANK	1
81	LOCKING LEVER	1
82	RETAINER	2
84	RETAINER	1
85	LINK	1
86	WASHER	1
87	SPACER	1
88	ANODE & SCREW AY	1
89	SCREW	1
90	Детать	1
