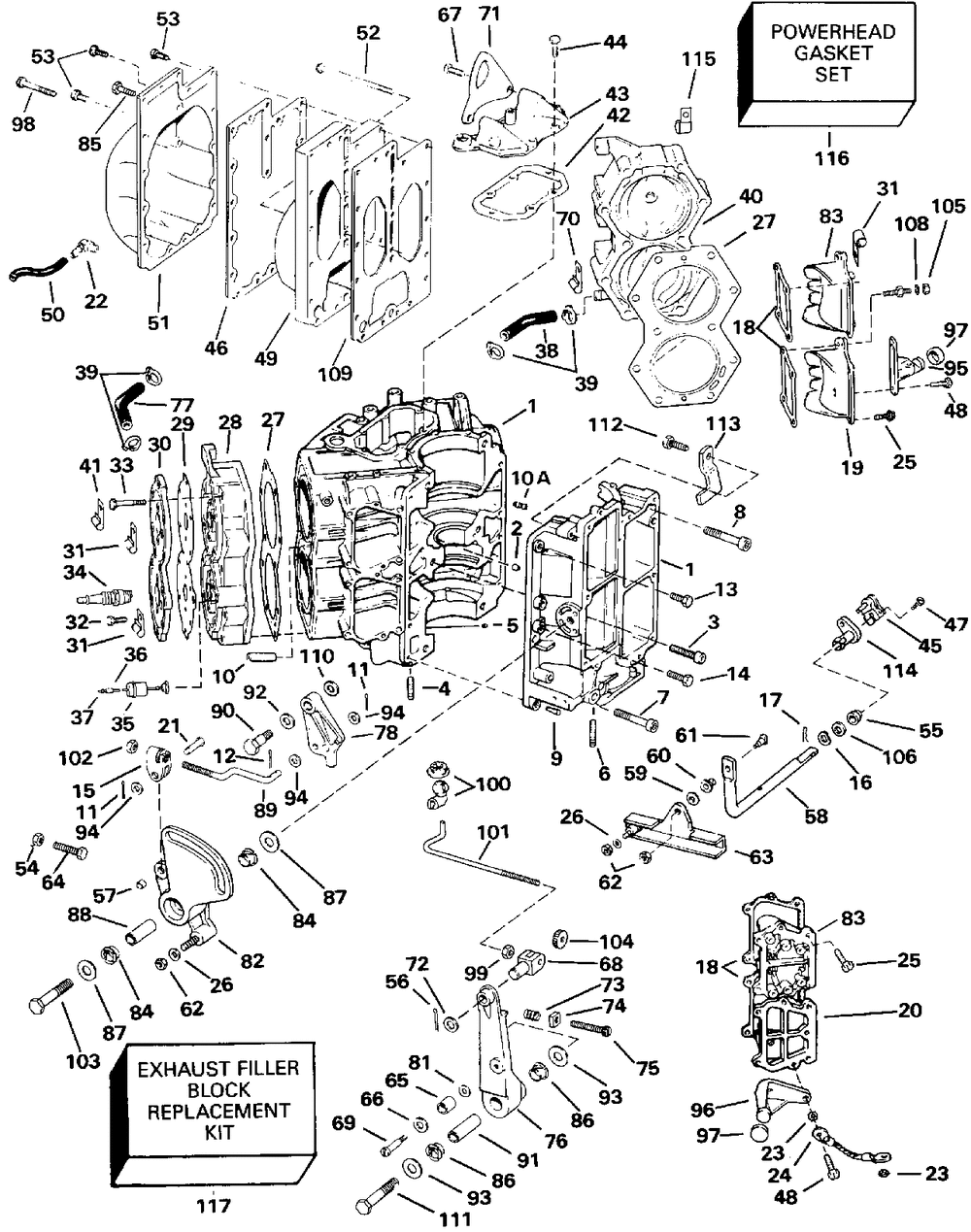

Johnson VJ100SLEIE VJ100SLEIE CYLINDER & CRANKCASE
CYLINDER & CRANKCASE
№ Наименование Примечание Кол-во
1 CYLCRKC&PLUG AY 1
1 80 Jet Models 1
1 Детать 1
2 DOWEL 1
3 SCREW 2
4 STUD 2
5 PLUG 1
6 STUD 2
7 SCREW 2
9 PIN 4PK (004 per pack) 2
10 DEFLECTOR 5PK (005 per pack) 4
10A CHECK VALVE AY 1
11 COTTER PIN 10PK (010 per pack) 2
13 SCREW 2
14 SCREW HX TSX Models Only 6
15 YOKE AY 1
16 WASHER 1
17 PIN-RETAINER 1
18 GASKET 5PK (005 per pack) 4
19 Детать 1
20 Детать 1
21 ANCHOR PIN 1
22 ELBOW90DEG-5PK 40 HO 60 HP Models (005 per pack) 1
23 LOCKWASHER (005 per pack) 4
24 Детать 1
25 SCREW 19
26 WASHER 2
27 HD GASKET CV4 2
28 Детать 1
29 GASKETWTR JCKT 2
30 Детать 2
31 CLAMP 'J' 3
33 SCREW 20
34 QL16V-PLUG 4PK (Radio Noise Suppression Spark Plug.) (004 per pack) 4
34 SP PLG QL77JC4 (Optional.) (004 per pack) 4
35 SWITCHTEMP-TAN 2
36 TERM. 521616-ADZ (010 per pack) 1
37 SLEEVEBULLET TERM 1
38 HOSE CYL HD PORT 1
39 SNAP CLMP tahos_19 25PK (025 per pack) 4
40 Детать 1
42 GASKET-CVR-WTR PSG 1
43 COVER 88 Models 1
44 SCREW 6
45 LEVER&PIN AYSHIFT 1
46 GASKETEXHAUST 2
46 GSKT-EXH MAN 1
47 SCREW 1
48 SCREW 4
49 85 Models 1
49 80 Jet Models 1
50 HOSE 3/16 X 28" 1
51 85 Models 1
51 EXH MANIFOLD COVER 1
52 SCREW 1
53 SCREW CYL HD 17
53 SCREW 21
54 NUT-SCREW THRTL 1
55 BUSHING 1
56 COTTER PIN 1
57 Детать 1
58 SHIFT LEVER 1
59 WASHER 1
60 BUSHING 1
61 SHOULDER PIN 1
62 NUT 3
63 Детать 1
64 SCREW-THROTTLE 1
65 KITROLLER&WASHER 1
66 WASHER 1
67 SCREW 2
68 RETAINER 1
69 SCREW 1
70 CLAMP 1
71 LIFT BRKT HL TSL Models Only 1
72 WASHER 1
73 SPRING 1
74 NUT 1
75 SCREW-IDLE ADJ 1
76 Детать 1
77 HOSE CYL HD STBD 1
78 THROTTLE CAM 1
81 WASHER 1
82 Детать 1
83 Детать 2
84 BUSHING 5-PK (005 per pack) 2
85 SCREW 1
87 WASHER 2
88 SLEEVE 1
89 Детать 1
90 SCREW-THROTTLE CAM 1
92 WAVE WASHER 1
94 WASHER 3
95 SUPPORT BRACE 1
96 SUPPORT BRACE 1
97 BUMPER 2
98 SCREW-IMP HSG 1
100 JOINT KIT 5 PK (005 per pack) 1
101 ROD SPARK CONTL 1
102 NUT 1
103 SCREW 1
104 THUMBWHEEL 1
105 NUT 1
106 BOW WASHER 1
107 Детать 1
109 GASKETEXHST CVR 1
110 WASHER Negative battery stud to center frame 1
112 SCREW 1
113 PLATE-IDLE STOP 1
114 BUSH & ROD KEEPER 1
116 GSKT SET PWHD CV4 1
117 80 Jet Models 1
