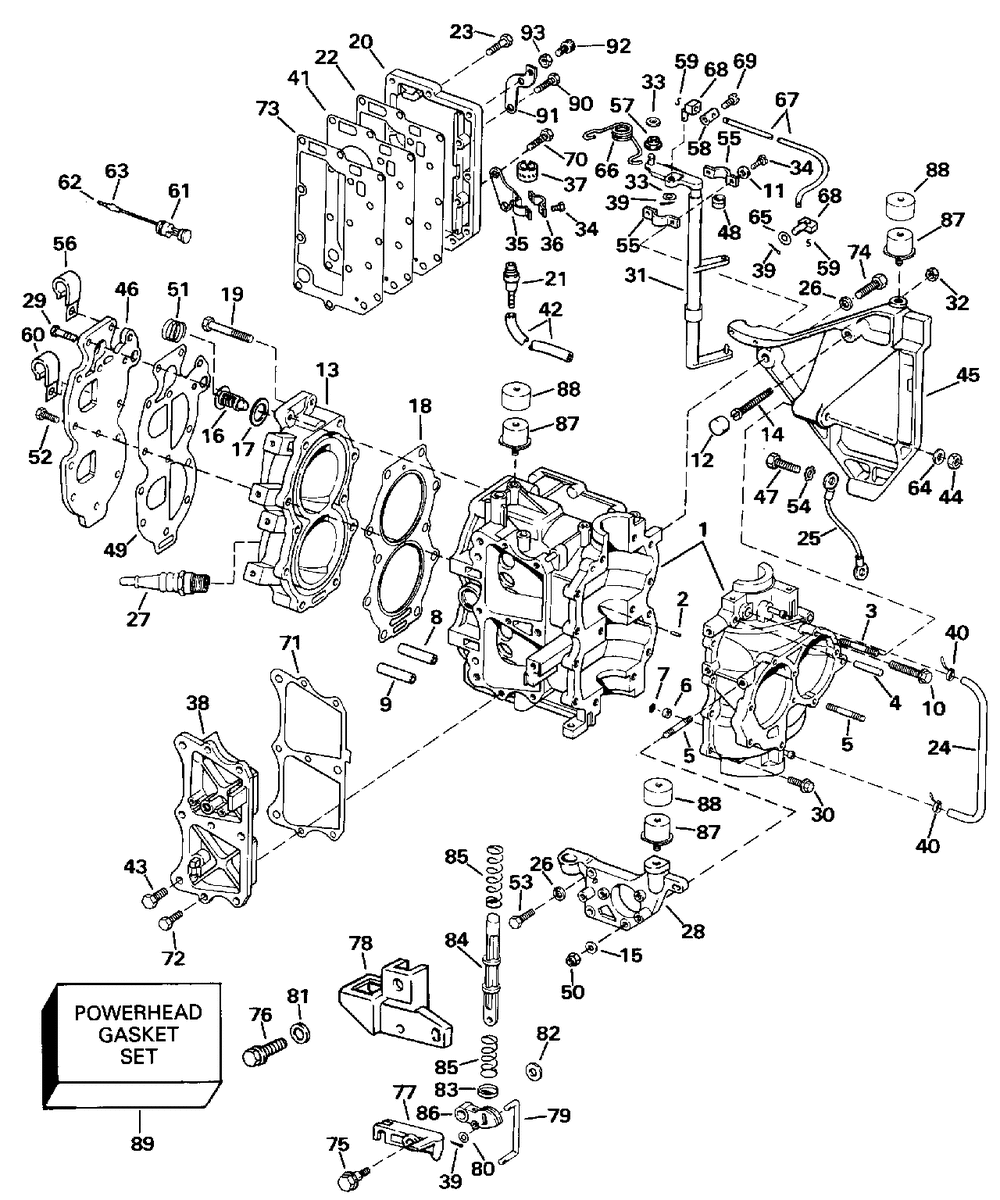

CYLINDER & CRANKCASE

Корзина пуста
Наименование Примечание Кол-во
1 Детать 1
2 DOWEL 1
3 STUD 1
4 PIN 4PK (004 per pack) 1
5 Детать 7
6 CHECK VALVE AY 1
7 SCREEN 1
8 DEFLECTOR 2
9 DEFLECTOR 1
10 SCREW 6
11 LOCKWASHER 2
12 BUMPER 1
13 HEADCYLINDER 1
14 SCREW 1
15 WASHER Trim manifold to DPS manifold 2
16 THERMOSTAT AY 1
17 GASKET 1
18 HD GASKET32CU" (Included in Powerhead Gasket Set.) 1
19 SCREW 10
20 Детать 1
21 NIPPLE 1
22 GASKET-EXH CVR 1
23 SCREW 11
25 TERMINAL & LEAD AY 1
26 LOCKWASHER 5 PK (005 per pack) 2
27 SPARK PLUG L16V (Optional.) (004 per pack) 2
27 QL16V-PLUG 4PK (Radio Noise Suppression Spark Plug.) (004 per pack) 2
27 SP PLG QL77JC4 (Optional.) (004 per pack) 2
28 BRACKET 1
29 SCREW 3
30 SCREW EXH CVR 8
31 Детать 1
32 NUT-SPARK ADJ 1
33 SHIM 2
34 Детать 4
35 CLAMP 1
36 BEARING CLAMP 1
37 BEARING 1
38 20SR - 20SRL - 25RA - 25RAL 1
39 COTTER PIN 4
40 TIE STRAP 100PK (100 per pack) 2
41 EXH CVR-INNER 1
43 SCREW 3
44 NUT (105WEL Models Only.) 1
45 BRACKET 1
46 Детать 1
47 SCREW 1
48 Детать 1
49 GASKET 1
51 SPRING 1
52 SCREW 11
54 LOCKWASHER (005 per pack) 1
55 FF BEARING CLAMP 2
56 CLAMP 'J' 1
57 SLEEVE 1
58 COLLAR 1
59 PIN 2
61 SWITCH AYTEMP 1
62 TERM. 521616-ADZ (010 per pack) 1
63 SLEEVEBULLET TERM 1
65 WASHER 1
66 SPRING 1
67 FF THROTTLE CON RD 1
68 FF PIVOT PIN 2
69 SCREW 1
71 FF GASKET CVR CYL 1
73 GASKET-EXH CVR 1
75 SCREW 1
75 SCREW 1
76 SCREW 1
77 Детать 1
78 BRACKET 1
79 Детать 1
80 WASHER 2
81 WASHER Negative battery stud to center frame 1
82 WASHER 1
83 RETAINER 1
84 PLUNGER 1
85 SPRING 2
86 LVR & ROLLER AY 1
87 MOUNT-STARTER HSG 3
88 CUP-RUBBER MOUNT 3
89 GASKET SET PWHD 1
