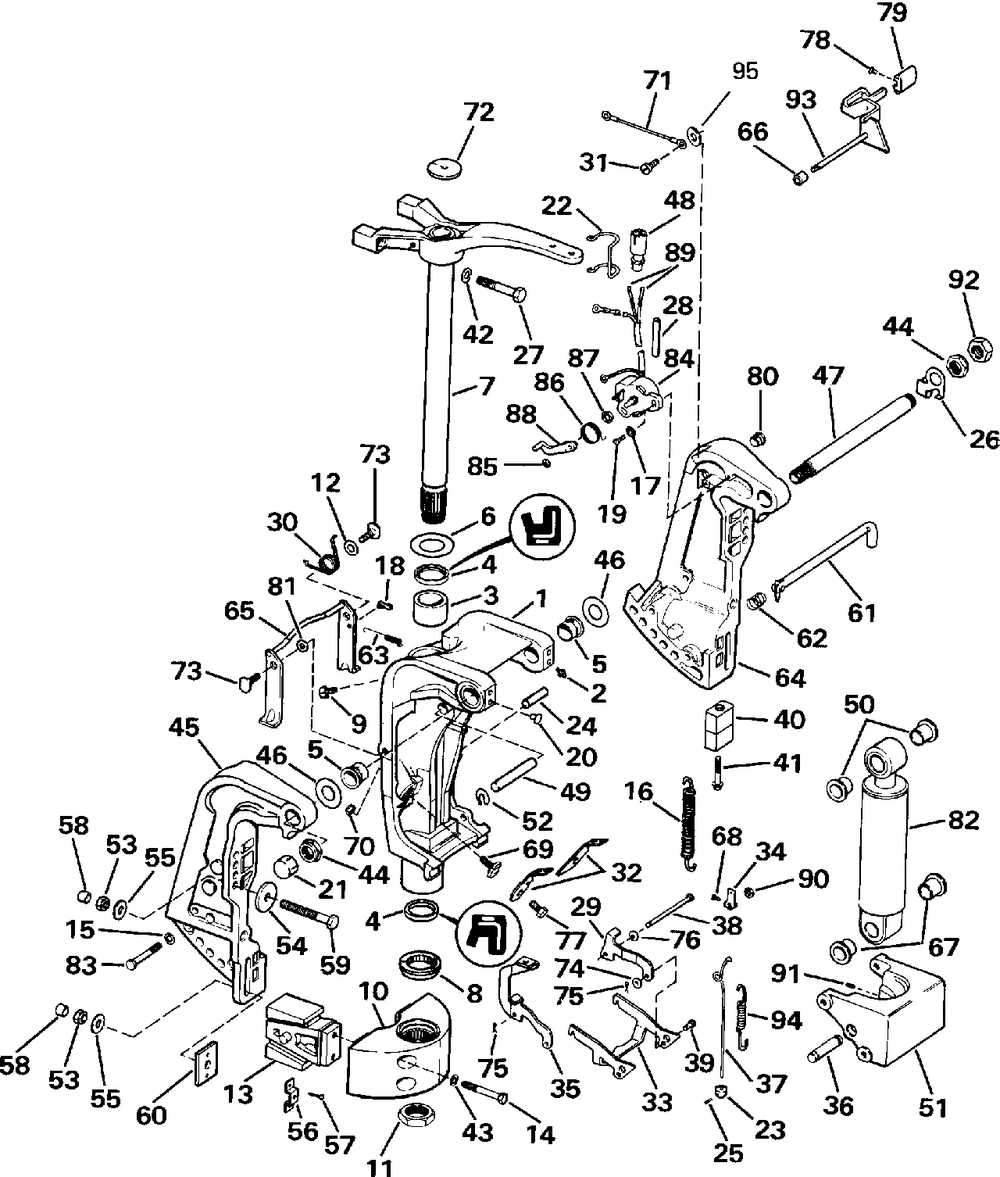

Johnson J100STLCEM J100STLCEM MIDSECTION
MIDSECTION
№ Наименование Примечание Кол-во
1 20 in. (508mm) Transom Models Only 1
1 25 in. (635mm) Transom Models Only 1
2 FITTING LUBE 0
3 BUSHING SWIV BK 1
4 SEAL SWIV BRKT 2
5 BUSHING SWIV BK 2
6 THRUST WASHER 1
7 STEER ARM & SHAFT 20 in. (508mm) Transom Models Only 1
7 STEER ARM & SHAFT 25 in. (635mm) Transom Models Only 1
8 KEEPER70HP-V6 1
9 SCREW 1
10 BRACKETMOUNT-20" 1
11 LOCK NUT 1
12 WASHER 1
13 Детать 1
13 MOUNT AYRUBBER 1
14 SCREW 4
15 LOCKWASHER (WRL Models Only. 20 in. (508mm) Models Only.) 0
16 O-RING (005 per pack) 1
17 WASHER 2
18 RETAINER 1
19 SCREW 2
20 PLUG 1
21 CAPSTEER-TUBE 1
22 RETAINER 1
23 COLLAR 1
24 ROLL PIN 1
25 SCREW 1
26 CLAMP 1
27 Детать 2
28 Детать 1
29 LINK 1
30 SPRING 1
31 SCREW-ADJ LEVER 1
32 RETAINER 2
33 LOCKING LEVER 1
34 BELLCRANK 1
35 LINK 1
36 PIN 1
37 ROD-REV LOCK REL 1
38 PIN 1
39 PIN 1
40 ANODE & SCREW AY 1
41 SCREW 2
42 WASHER 2
43 LOCKWASHER 4PK (004 per pack) 4
44 LOCKNUT 2
45 STERN BRACKET AY 1
46 THRUST WASHER 1
47 TILT TUBE SST 1
48 CONN 2 PIN RCPT (Tiller Electric Models Only.) 1
49 PIN TILT CYL UP 1
50 BUSHING-UPR TILT 2
51 SPACER 2
52 SPRING CLIP 2PK (002 per pack) 2
53 NUT (004 per pack) 4
54 WASHER 5 PK (005 per pack) 2
55 WASHER 5 PK (005 per pack) 4
56 RETAINER Optional 2
57 SCREW RET TO PLATE Optional 4
58 CAP-TRAN SCR (004 per pack) 4
59 3 1/2" TRNSM BOLT Optional 0
59 3 1/2" TRNSM BOLT Optional 0
59 5" TRNSM BOLT Optional 0
59 6" TRNSM BOLT 0
59 4 3/4" TRNSM BOLT 2
59 4 3/4" TRNSM BOLT 2
60 SQ PLATE 4PK (004 per pack) 2
61 ROD AYTHRUST 1
62 SPRING THRS ROD 1
63 SPRING-TRAIL LOCK 1
64 Детать 1
65 Детать 1
66 SPACER 1
67 BUSHING TILT CY 2
68 SCREW-BELLCRK 1
69 THRUST PAD 2
70 NUT 2
71 Детать 1
72 Детать 1
73 SHOULDER SCREW 2
74 WASHER 2
75 COTTER PIN 3
76 WASHER 1
77 SCREW BRKT TO ARM 2
78 SCREW 1
79 KNOB-TILT LOCK 1
80 BUSHING STERN B 1
81 WASHER 2
82 SHOCK ABSORBER Manual Tilt Models Only 1
83 SCREW 2
83 SCREW 2
84 With Power Trim & Tilt 1
85 RETAINER 1
86 SPRING-TILT TRIM 1
87 NUT 1
88 ARM SENDING UNIT 1
89 PIN(10)44-100-1414 (010 per pack) 1
90 SPACER 1
91 SCREW-BRKT-GR HSG 1
92 NUT-STEERING WIPER Recommended to Prevent Corrosion in Salt Water Usage 1
93 LEVER & SHAFT AY 1
94 Детать 1
95 LOCKWASHER 1
