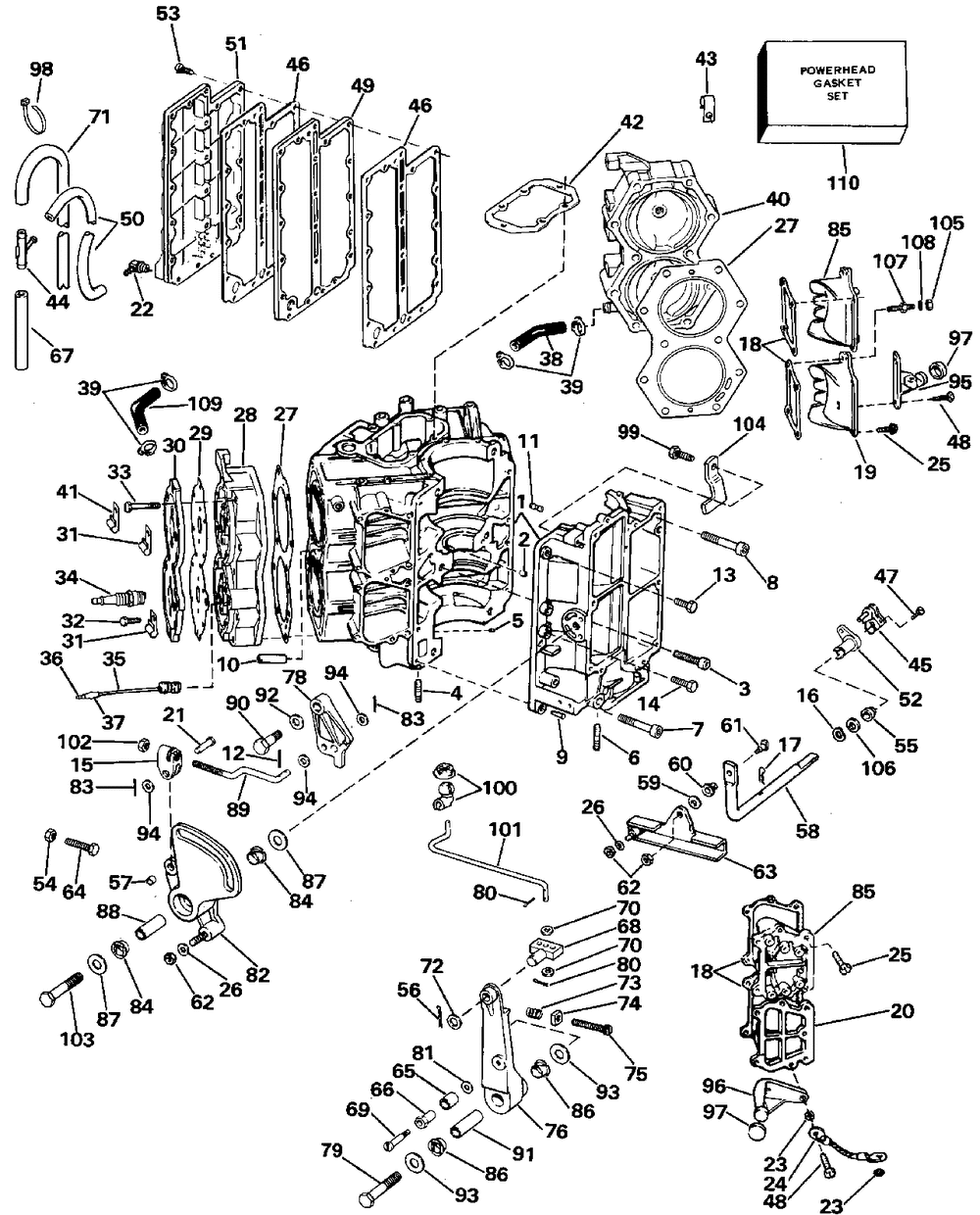

CYLINDER & CRANKCASE

Johnson D100WTXM D100WTXM CYLINDER & CRANKCASE

№	Наименование	Кол-во
1	Детать	1
2	DOWEL	1
3	SCREW	2
4	STUD	2
5	PLUG	1
6	STUD	2
7	SCREW	2
9	PIN 4PK (004 per pack)	2
10	DEFLECTOR 5PK (005 per pack)	4
11	CHECK VALVE AY	1
12	COTTER PIN 10PK (010 per pack)	1
13	SCREW	2
14	SCREW HX TSX Models Only	6
15	YOKE AY	1
16	WASHER	1
17	PIN-RETAINER	1
18	GASKET 5PK (005 per pack)	4
19	Детать	1
20	Детать	1
21	ANCHOR PIN	1
22	ELBOW90DEG-5PK 40 HO 60 HP Models (005 per pack)	1
23	LOCKWASHER (005 per pack)	4
24	Детать	1
25	SCREW	19
26	WASHER	2
27	HD GASKET CV4	2
28	Детать	1
29	GASKETWTR JCKT	2
30	Детать	2
31	CLAMP 'J'	5
33	SCREW	20
34	QL16V-PLUG 4PK (Radio Noise Suppression Spark Plug.) (004 per pack)	4
34	SP PLUG L78V 8PK (Optional.) (008 per pack)	4
34	QL16V-PLUG 4PK Radio Noise Suppression Optional (004 per pack)	4
35	SWITCHTEMP-TAN	2
36	TERM. 521616-ADZ (010 per pack)	1
37	SLEEVEBULLET TERM	1
38	HOSE CYL HD PORT	1
39	SNAP CLMP tahos_19 25PK (025 per pack)	4
40	Детать	1
42	GASKET-CVR-WTR PSG	1
43	CLAMP	1
44	30 DEG. TEE	1
45	Детать	1
46	GASKETEXHAUST	2
47	Детать	1
48	SCREW	4
49	85 Models	1
50	HOSE 3/16 X 28"	1
51	85 Models	1
52	BUSH & ROD KEEPER	1
53	SCREW	21
54	NUT-SCREW THRTL	1
55	BUSHING	1
56	COTTER PIN	1
57	Детать	1
58	SHIFT LEVER	1
59	WASHER	1
60	BUSHING	1
61	SHOULDER PIN	1
62	NUT	3
63	Детать	1
64	SCREW-THROTTLE	1
65	ROLLER	1
66	ECCENT ROLLER	1
67	HOSE	1
68	RETAINER	1
69	SCREW	1
70	WASHER	2
71	HOSE	1
72	WASHER	1
73	SPRING	1
74	NUT	1
75	SCREW-IDLE ADJ	1
76	Детать	1
78	THROTTLE CAM	1
79	SCREW	1
81	WASHER	1
82	Детать	1
84	BUSHING 5-PK (005 per pack)	2
85	Детать	2
87	WASHER	2
88	SLEEVE	1
89	Детать	1
90	SCREW-THROTTLE CAM	1
92	WASHER Negative battery stud to center frame	1
94	WASHER	3
95	SUPPORT BRACE	1
96	SUPPORT BRACE	1
97	BUMPER	2
98	TIE STRAP 100PK (100 per pack)	1
99	SCREW	1
100	JOINT KIT 5 PK (005 per pack)	1
101	ROD-SPARK CONTROL	1
102	NUT-SPARK ADJ	1
104	PLATE-IDLE STOP	1
105	NUT	1
106	BOW WASHER	1
107	Детать	1
109	HOSE CYL HD STBD	1
110	GSKT SET PWHD CV4	1
