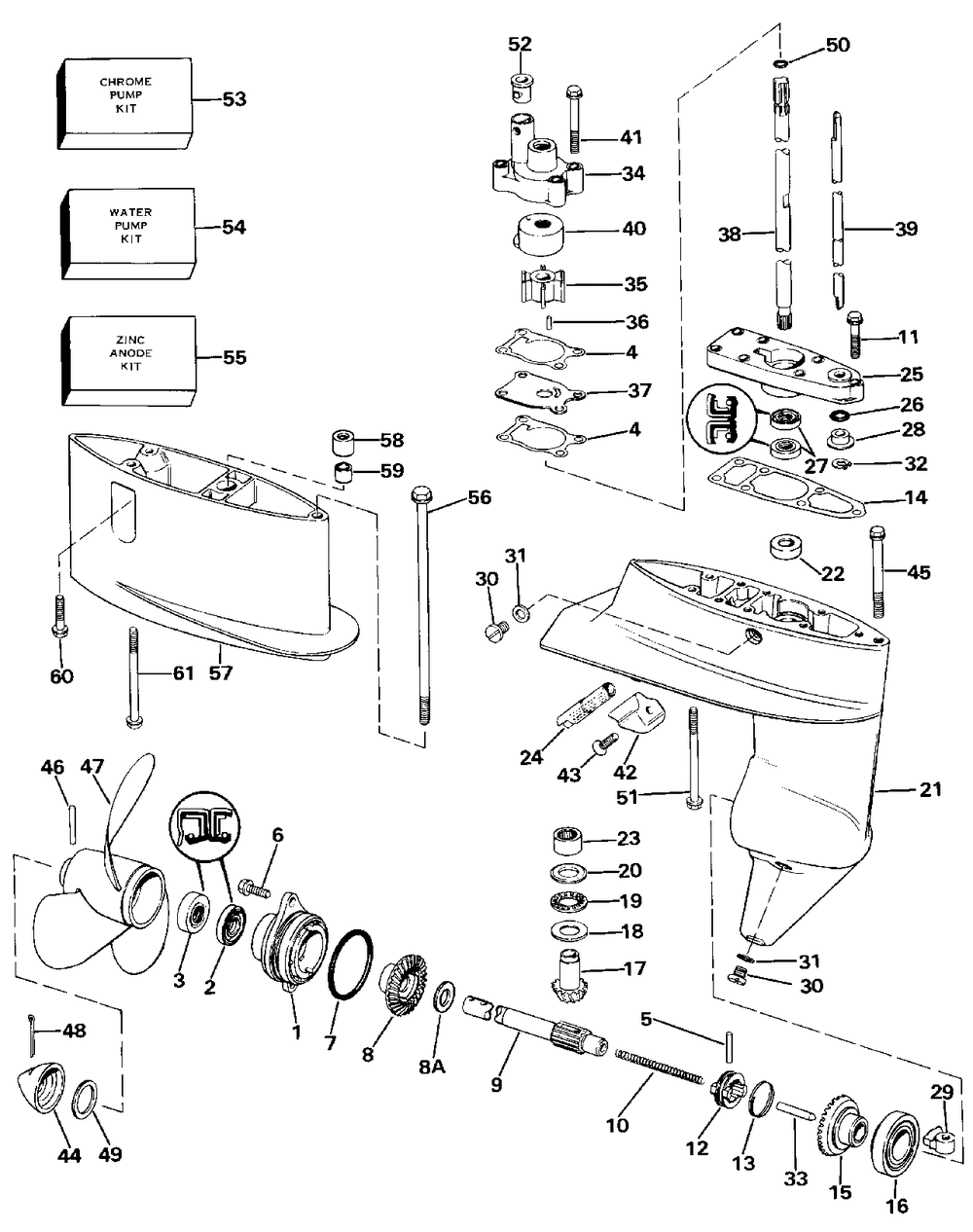

Johnson J4RDHLCUD J4RDHLCUD GEARCASE
GEARCASE
№ Наименование Примечание Кол-во
1 Детать 1
2 SEAL-PROP SHFT 1
3 SEAL-PROP SHFT 1
4 GASKET (Contents of Water Pump Repair Kit.) 2
5 PIN 1
6 SCREW 2
7 O-RING 1
8 Детать 1
8A Детать 1
9 SHAFT PROPELLER 1
10 Детать 1
11 SCREW 5 INCH LONGER PARTS 3
12 SHIFTER 1
13 RETAINER(SPRING) 1
14 GASKET 1
15 GEAR AYFORWARD 1
16 ROLLER BRG AY 1
17 PINIOND-SHAFT 1
18 THRUST WASHER 1
19 THRUST BRG AY-PIN 1
20 THRUST WASHER 1
21 Детать 1
22 BRG&SLEEVE 1
23 BEARING AY 1
24 KITSCREEN&PLUG AY 1
25 G/C CVR & SEAL AY 1
26 O RING 1
27 SEAL-D-SHAFT 2
28 BUSHING 1
29 CAM 1
30 DRAIN FILL PLG 10P (010 per pack) 2
31 O-RING (010 per pack) 1
31 WASHER-10 PK (010 per pack) 1
32 RET RING 1
33 PLUNGER 1
34 IMPELLER HSG 1
35 IMPELLER (Contents of Water Pump Repair Kit.) 1
36 KEY (Contents of Water Pump Repair Kit.) 1
37 PLATE-IMP HSG (Contents of Water Pump Repair Kit.) 1
38 D-SHAFT 15"4-8HP 1
38 5 INCH LONGER PARTS 1
39 E4RDHLETB J4RDHLETB 5 INCH LONGER PARTS 1
39 SHIFT ROD-STD 1
40 CUP-IMP HSG (Contents of Water Pump Repair Kit.) 1
41 SCREW-IMP HSG 4
42 ANODE KIT 1
43 SCREW-TIE BAR 1
44 CAP-PROP SHFT 1
45 SCREW 1
46 DRIVE PIN 5 PK (005 per pack) 1
47 PROPAL 8X7/PIN 1
48 COTTER PIN 10 PK (010 per pack) 1
49 THRUST WASHER 1
50 O RING 1
51 SCREW DPS manifold to trim manifold 2
52 GROMMET WATER TUBE 5 INCH LONGER PARTS 1
53 Детать 1
54 WTR PUMP REP KIT 1
55 ANODE KIT 1
56 SCREW 1
57 G-CSE EXT AY (RL Models.) 1
58 BUSHINGFLAT-STYLE (RL Models.) 1
59 SLEEVE (RL Models.) 1
0323286 Детать 1
0324601 WTR TUBE-LNG 1
0324604 Детать 1
0324611 GASKET 1
0389979 Not Shown 5 INCH LONGER PARTS 1
0397397 Детать 1
