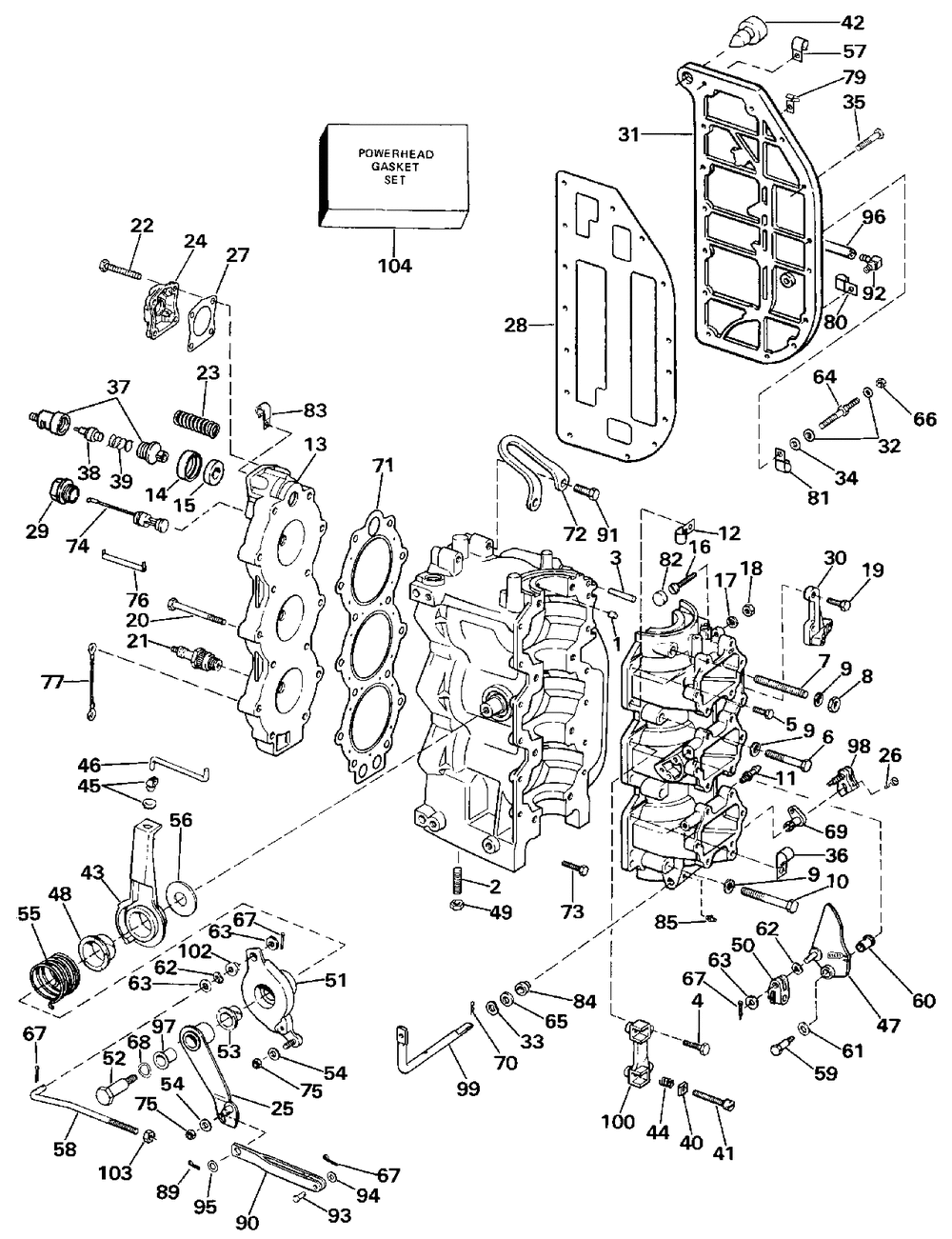

Johnson J65WMLCUA J65WMLCUA CYLINDER & CRANKCASE
CYLINDER & CRANKCASE
№ Наименование Примечание Кол-во
1 DOWEL 3
2 STUD 1
3 PIN 4PK (004 per pack) 1
4 SCREW 2
5 SCREW 6
6 Детать 4
7 STUD 2
8 LOCKNUT CCASE CYL 2
9 WASHER 8
10 SCREW 2
11 PULSE LMTR-W/THRDS 1
12 CLAMP 'J' Rope Start Models Only 1
13 KIT AYCYL HEAD 1
14 THERMOSTAT CUP 1
15 SEAT VALVE 5PK (005 per pack) 1
16 Детать 1
17 LOCKWASHER 5 PK (005 per pack) 1
18 NUT-SPARK ADJ 1
20 SCREW-CYL HEAD 14
21 SP PLG QL77JC4 (Optional.) (004 per pack) 3
23 SPRING 1
24 CVR-THERMOSTAT 1
25 BELLCRANK & PIN AY 1
26 SCREW 1
27 GASKET-COVER 5PK (005 per pack) 1
28 GASKET EXHST CVR 1
29 COVER-TEMP.SWITCH 1
31 COVER 1
32 LOCKWASHER (005 per pack) 2
33 WASHER 1
34 WASHER 60 ELC - 60 TLC Models Only 1
37 THERMOSTAT AY 1
38 VERNATHERM AY 1
39 THERMOSTAT AY 1
40 NUT 2
41 Детать 2
42 BUMPER 1
43 LEVER 1
44 SPRING 2
45 JOINT KIT 5 PK (005 per pack) 2
46 60EL 60TL Only 1
47 Детать 1
48 BUSHING 1
49 NUT 1
50 YOKE AY 1
51 THROTTLE LVR&PIN 1
52 SHOULDER SCRE 1
53 BUSHING 1
54 WASHER 1
55 SPRING 1
56 WASHER 1
58 LINK 60EL 60TL Only 1
59 SCREW 1
60 Детать 1
61 WAVE WASHER 1
62 SPRING WASHER 2
63 WASHER 2
64 Детать 1
65 BOW WASHER 1
66 NUT 5 in. LONGER PARTS 1
67 COTTER PIN 10PK (010 per pack) 4
68 SPRING WASHER 1
69 BUSH & ROD KEEPER 1
70 PIN-RETAINER 1
71 HD GASKET 1
72 BRACKET-LIFT 1
73 SCREW 4
74 Детать 1
75 NUT 2
76 Детать 1
77 Детать 1
79 SPRING 1
80 CLAMP 'J' 1
82 BUMPER 1
84 Детать 1
85 FITTING LUBE 1
89 COTTER PIN 1
90 LINK SHFT LVR 1
91 Детать 2
92 ELBOW90DEG-5PK 40 HO 60 HP Models (005 per pack) 1
93 PIN 1
95 WASHER 1
96 HOSE .188 X 39" 20" Transom Models 1
97 BUSHING 1
98 Детать 1
99 LEVERSHIFT 1
100 BRACKET 1
101 BUSHING 1
104 GASKET SET PWHD 1
0397737 CYL&C-CASE KIT 3CY Not Shown 1
