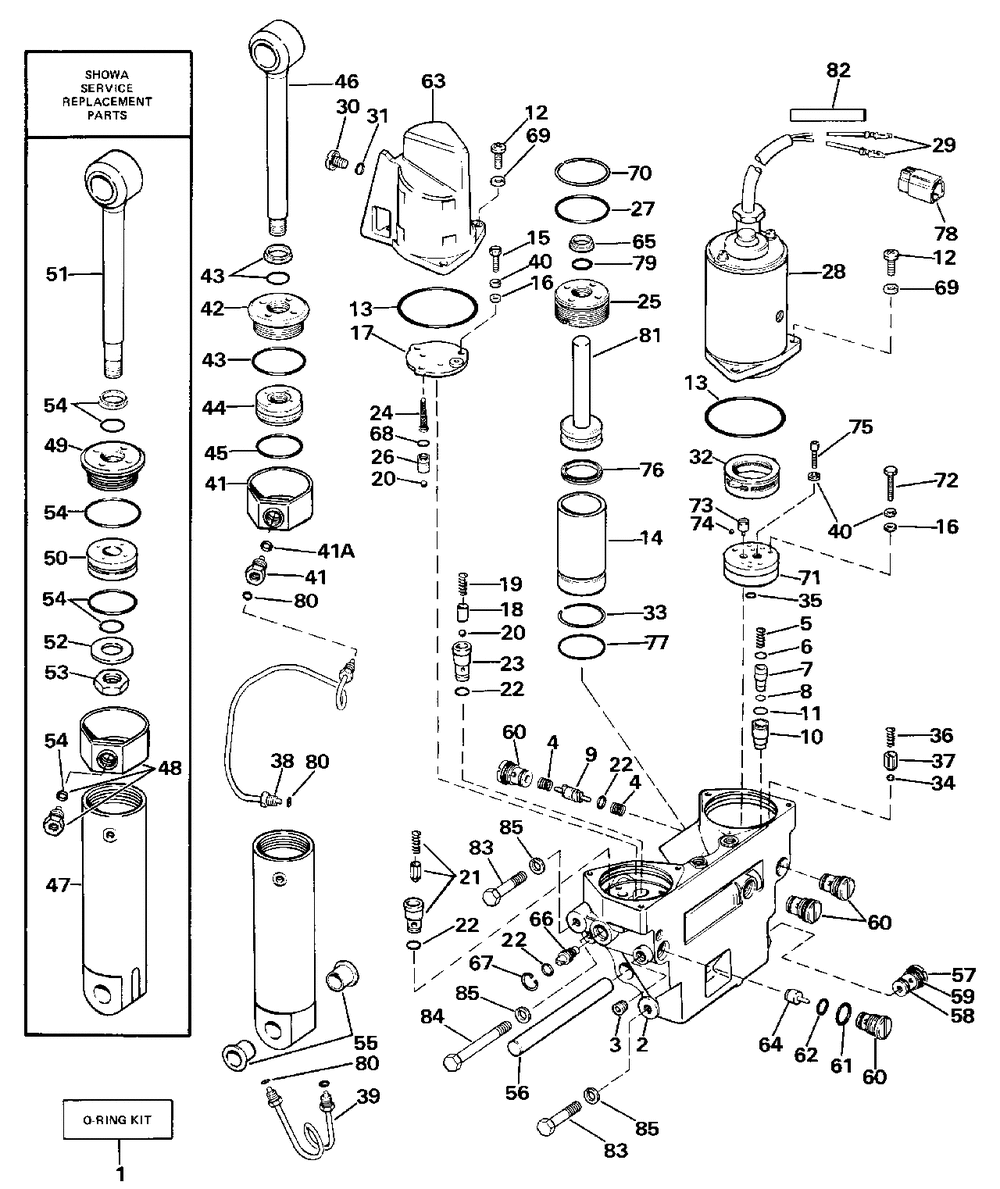

POWER TRIM / TILT HYDRAULIC ASSEMBLY

Корзина пуста
Наименование Примечание Кол-во
1 KIT O-RING TNT Includes All O-rings Required for Service of Complete Hydraulic Assy. (Does notInclude Tilt Cylinder O-rings) 1
2 MANIFOLD T&T 1
3 PLUG LARGE MANIFD 1
4 SPRING 2
5 SPRING 1
6 O-RING 1
7 VALVE CORE 1
8 O-RING 1
9 PISTON T&T 1
10 SEAT&O-RING 1
11 O-RING 1
12 SCREW 6
13 O RING 5PK (005 per pack) 2
14 SLEEVE 2
15 Детать 3
16 WASHER 4
17 Детать 1
18 VALVE CORE SEAT 1
19 SPRING SHOCK VALVE 1
20 BALL 2
21 RLF VALVETILT UP 1
22 O-RING (005 per pack) 4
23 SEAT PILOT VALVE 1
24 Детать 1
25 END CAPTRIM CY 2
26 VALVE SEAT 1
27 O-RING (005 per pack) 2
28 T&T MOTOR 1
29 TERMINAL 2
30 PLUG RESERVOIR 1
31 O RING 1
32 FILTER OIL PUMP 1
33 RING 2
34 SEAL-VALVE BODY 1
35 O RING 1
36 Детать 1
37 POPPET 1
38 Детать 1
39 OIL LINE AYLOWR 1
40 LOCKWASHER Stator screw 6
41 Prestolite Tilt Cylinder 1
41A Prestolite Tilt Cylinder 1
42 END HEAD AY Prestolite Tilt Cylinder 1
43 O-RING PACKAGE Prestolite Tilt Cylinder 1
44 HEAD AYPISTON Prestolite Tilt Cylinder 1
45 O-RING Prestolite Tilt Cylinder 1
46 Prestolite Tilt Cylinder 1
47 Детать 1
48 Детать 1
49 CAP-O-RING & SEAL 1
50 Детать 1
51 Детать 1
52 WASHER 1
53 HEX NUT 1
54 O-RING KITTILT CY 1
55 BUSHING TILT CY 2
56 PIVOT PIN 1
57 VALVE SEAT&SEAL AY 1
58 O-RING DLR 5PK (005 per pack) 1
59 O-RING (65WRY Model Only.) (005 per pack) 1
60 VALVE SEAT HSG AY 4
63 Детать 1
64 PISTON 1
65 WIPERROD 2
66 VALVEMAN RELEASE 1
67 RET RING MANIFOLD 1
68 ORING 1
69 LOCKWASHER 5 PK (005 per pack) 6
70 RING 2
71 OIL PUMP AY 1
72 Детать 1
73 COUPLINGTNT PUMP 1
74 Детать 1
75 Детать 2
76 SEAL 2
77 O RING 2
78 CONNECTOR 1
79 QUAD RING 2
80 O RING (005 per pack) 4
81 Детать 2
82 Детать 1
83 SCREW 4
83 SCREW 4
84 SCREW 2
84 SCREW 2
85 LOCKWASHER (WRL Models Only. 20 in. (508mm) Models Only.) 6
0387248 Детать 1
0390002 Not Shown 1
0390987 BRUSH&SEAL KIT Not Shown Motor With Part No. PMP4001 Stamped on Bottom 3 in. (76mm) Diameter Motor 1
0392202 Not Shown Motors With Part No. 20478 or 43728 Stamped on Bottom 2.5 in. (64mm) Diameter Motor 1
0398424 Not Shown 1
0398606 Not Shown 3 in. (76mm) Diameter Trim Motor "S" Stamp on End Cap 1
0583522 BRUSH&SEAL AY Not Shown 2.4 in. (61mm) Diameter Trim Motor "S" Stamp On End Cap 1
