Johnson J35ARLCDE J35ARLCDE GEARCASE

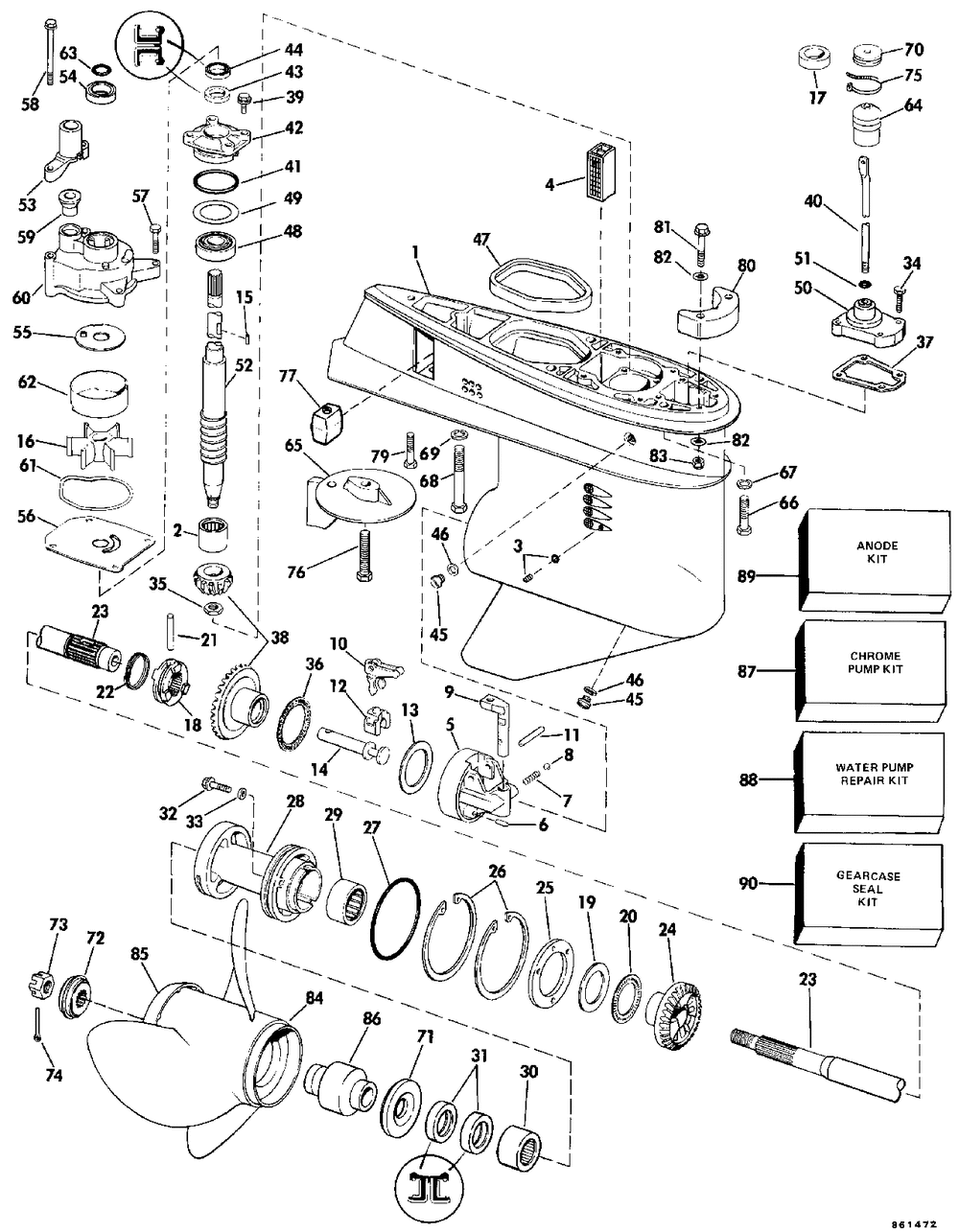

GEARCASE
№ Наименование Примечание Кол-во
1 Детать 1
2 NEEDLE BRG DS LOWR 1
3 RETAINING SCREW 1
4 Детать 1
5 Детать 1
6 PIN 1
7 SPRING 1
8 BALL 1
9 DETENT-SHIFTER 1
10 Детать 1
11 PIN 1
12 CRADLE-SHIFT 1
13 THRUST WASHER 1
14 SHAFT SHIFTER 1
15 KEYIMPELLER-BLK 1
16 IMPELLER Also included in Water Pump Repair Kit 396932 1
17 SEAL RING (WRL Models Only.) 1
18 SHIFTER CLUTCH DOG 1
19 THRUST WASHER 1
20 Детать 1
21 PIN CLUTCH DOG 1
22 SPRING CLUTCH DOG 1
23 PROPELLER SHAFT AY 1
24 GEAR-REVSEE PR BK On 1979-88 40 48 50-55 & 60 hp use part number tahos_433570 On 1975-78 Models use part number 433618 1
25 Детать 1
26 RET RING BRG HSG 2
27 O RING BRG HSG 1
28 Детать 1
29 NDLE BRG REV GEAR 1
30 NDLE BRG PROP SHFT 1
31 SEAL Early Production Double Seal 2
32 SCREW BRG HSG Contents of Gearcase Seal Kit 3
34 SCREW (005 per pack) 4
35 NUT 1
36 THRUST BRG. 1
37 GASKET 5 PK Contents of Gearcase Seal Kit (005 per pack) 1
38 GEARSET AY 1
39 SCREW-RET PLATE 4
40 SHIFT ROD STD (WRL Models Only. 20 in. (508mm) Models Only.) 1
40 (20 in. (508mm) Models Only.) 1
41 O RING 5 PK (005 per pack) 1
42 Детать 1
43 OIL RET 5 PK Early Production Double Seal (005 per pack) 1
44 OIL RETAINER 1
45 DRAIN FILL PLG 10P (010 per pack) 2
46 WASHER-10 PK (010 per pack) 2
46 O-RING (010 per pack) 2
47 SEAL Contents of Gearcase Seal Kit 1
48 ROLLER BRG AY 1
49 Детать 0
49 SHIM DSHAFT .004 0
49 Детать 0
49 SHIM DSHAFT .006 0
49 SHIM DSHAFT .007 0
50 CVR&BUSH AY SHFTRD 1
51 O-RING (005 per pack) 1
52 D-SHAFT 20" 1
52 Детать 1
53 BRKT-WTR TUBE 1
54 GROMMET Also included in Water Pump Repair Kit 433549 1
55 PLATE LINER HSG Stainless Steel Also included in Water Pump Repair Kit 396932 1
56 PLATE IMP HSG Stainless Steel Also included in Water Pump Repair Kit 396932 1
58 SCREW (Contents of Water Pump Repair Kit.) 2
59 GROMMET Also included in Water Pump Repair Kit 396932 1
60 IMPELLER HSG Also included in Water Pump Repair Kit 396932 1
61 SEAL Also included in Water Pump Repair Kit 396932 1
62 LINER IMPELLER HSG Stainless Steel Also included in Water Pump Repair Kit 396932 1
63 O-RING 1
64 SEAL 1
65 TABTRIM-STD 1
66 SCREW (WRL Models Only. 20 in. (508mm) Models Only.) 4
67 LOCKWASHER (WRL Models Only. 20 in. (508mm) Models Only.) 4
68 SCREW 1
69 LOCKWASHER 4PK (004 per pack) 1
70 GROMMET 1
71 THRUST BUSHING 1
72 SPACER (005 per pack) 1
73 PROP NUT 1
74 COTTER PIN (010 per pack) 1
75 TIE STRAP 100PK (100 per pack) 1
76 SCREWTRIM TAB LNG (22.5 in. (571mm) Models Only.) 1
76 Детать 1
77 ANODE&INSERT AY 1
77 FILLER BLOCK 88 Models 1
79 SCREW ANODE 1
79 SCREW 1
80 ANODE & INSERT AY 1
81 SCREW-IMP HSG 2
82 LOCKWASHER 4
83 NUT 2
84 Детать 1
84 PROPAL 12.5X13 1
84 PROP AL 13 X 11 1
84 Детать 1
84 Детать 1
84 SS PROP 12X17 1
84 SS PROP 12 1/4X15 1
84 SS PROP 12 1/2X13 1
84 Детать 1
84 PROPAL 12 X 17 1
84 PROPAL 12.25 X 15 1
85 CONVERG RING45X 1
86 PROP HUB 50 & 75 1
87 Детать 1
88 KIT AYWATER PUMP 1
88 KIT AYWATER PUMP 1
89 ANODE KIT (Not Shown.) 1
90 SEAL KIT G-CASE 1
0332584 WASHER 5PK (005 per pack) 1
0396939 Not Shown 1
0396940 Not Shown 1
