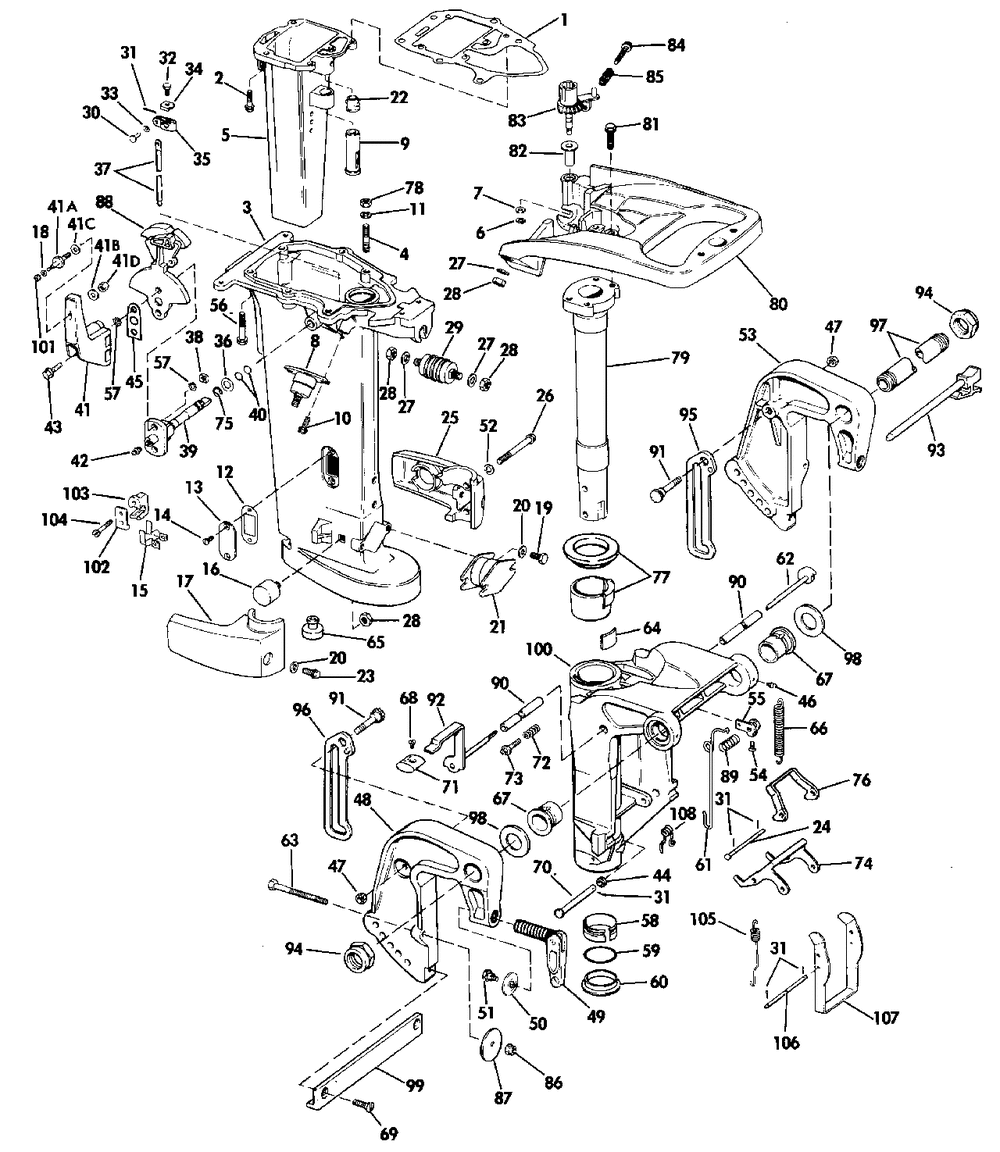

Johnson J25TELCRD J25TELCRD MIDSECTION - ELECTRIC START ONLY
MIDSECTION - ELECTRIC START ONLY
№ Наименование Примечание Кол-во
1 GASKET 1
2 SCREW 5
3 Детать 1
4 STUD 2
5 TUBE AY 1
6 Детать 1
7 WASHER 1
8 RUBBER MOUNT 2
8 RUBBER MOUNT 25R 30R . 2
9 Детать 1
10 SCREW 4
11 WASHER 2
12 GASKET 1
13 COVER PLATE 1
14 SCREW (004 per pack) 2
15 SPRING CLIP 1
16 RUBBER MOUNT 2
16 RUBBER MOUNT 25R 30R . 2
17 HSG-LWR MT-STBD 1
18 WASHER Electric Start Models 1
19 SCREW NEGATIVE 2
20 WASHER 4
21 RUBBR MOUNTLOWER 1
22 GROMMET (005 per pack) 1
23 SCREW 2
24 PIN 1
25 HSG-LWR MT-PORT 1
26 SCREW 2
27 WASHER 4
28 NUT 6
29 Детать 1
30 PIN 1
31 COTTER PIN 10PK (010 per pack) 4
32 SCREW SHIFT ROD 1
33 BOW WASHER 1
34 CLIP 1
35 LEVER SHIFT ROD 1
36 WASHER 2
37 Детать 1
38 NUT 2
39 ADJ LEVER & SHAFT 1
40 O RING 2
41 SHIFT LVR & PIN Not Shown 1
41A PIN 1
41B WASHER 1
41C WASHER 1
41D NUT 1
42 LUB FITTING 1
43 SCREW 1
45 SPACER 1
46 FITTING LUBE 5
47 NUT 2
49 C-SCREW KIT SST Stainless optional accessory 1
50 PLATESWIVEL 1
51 SCREW-CLMPSCRW (005 per pack) 1
52 WASHER 2
54 SCREW-BELLCRK 1
55 FF BELLCRANK 1
56 SCREW-EXH HSG 4
57 LOCKWASHER (005 per pack) 2
58 BUSHING 1
59 O RING Included in Powerhead Gasket & Seal Kit 1
60 WASHER 1
61 RODREV LOCK RLSE 1
62 CAM&SHAFT-TILT LK 1
63 SCREW & NUT AY 2
64 Детать 1
65 BUMPER 1
66 SPRING LOCK 2
67 BUSHING SWIV BRKT 2
68 SCREW 1
69 SCREW-TIE BAR 2
70 PIN 2
71 KNOB 1
72 SPRINGSTEER FRICT DT models 1
73 SCREW STRG ADJ 1
74 LINK-REVERSE LOCK 1
75 RETAINER 1
76 LOCKING LEVER 1
77 Детать 1
78 LOCKNUT 2
79 PILOT SHAFT 1
80 Детать 1
81 SCREW Contents of GEARCASE SEAL KIT 4
82 Детать 1
83 GEAR AYTHTTL 1
84 KIT AYSCREW&SPR 1
85 SPRING 1
87 WASHER SB 2
88 ACTUATOR CAMSHIFT 1
89 FF SPRING TILT LK 1
90 FF BUSHING TILT LK 1
91 FF PIN TILT LOCK 2
92 LVR&SHAFT AY 1
93 PIN AYTILT 9.8" 1
94 LOCKNUT 2
95 LOCK AYTILT-PORT 1
96 LOCK AYTILT-STBD 1
97 TUBE TILT SST 1
98 FF WASHER 2
99 BARTIESTERN BRKT 1
100 SWIVEL BRKT 1
101 NUT 1
102 CLAMP 2
103 ANCHOR BLOCK 2
104 SCREW 2
105 FF SPRING 1
106 PIN 1
107 LINK 1
108 SPRING 1
