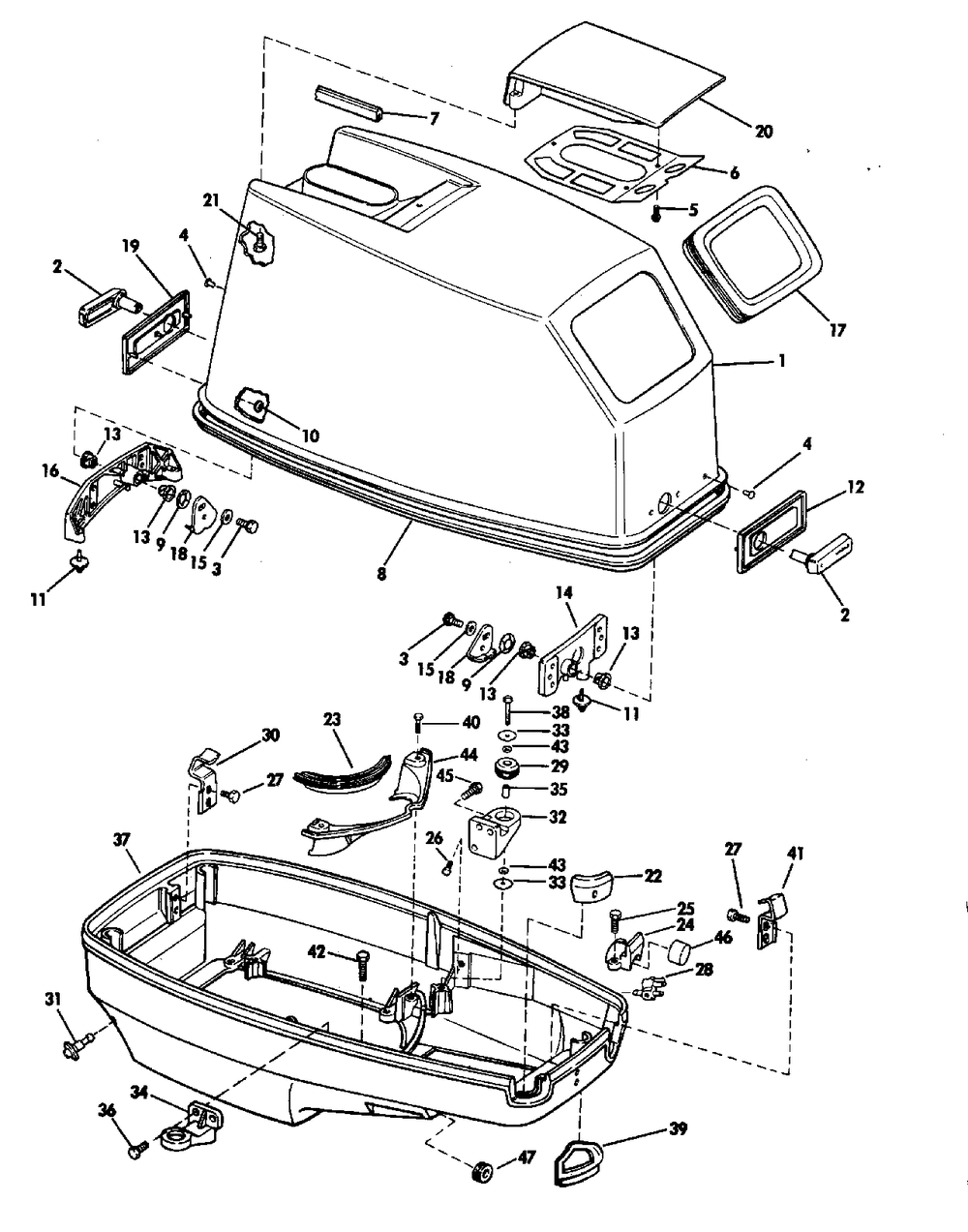

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Детать | 1 | |
| 2 | LATCH HANDLE | 2 | |
| 3 | SCREW | 3 | |
| 4 | RIVET | 8 | |
| 5 | SCREW-BFL TILT HND | 3 | |
| 6 | BAFFLE | 1 | |
| 7 | Детать | 0 | |
| 8 | Детать | 1 | |
| 9 | WASHER | 2 | |
| 10 | NUTPUSH ON | 6 | |
| 11 | Детать | 3 | |
| 12 | APPLIQUE-EV | 1 | |
| 13 | BUSHING 5-PK (005 per pack) | 4 | |
| 14 | Детать | 1 | |
| 15 | WASHER Negative battery stud to center frame | 2 | |
| 16 | BRACKET&HNDL AY | 1 | |
| 17 | SEAL-MTR CVR BRKT | 1 | |
| 18 | LATCH | 2 | |
| 19 | APPLIQUE-EV | 1 | |
| 20 | TILT HANDLE | 1 | |
| 21 | SCREW Bracket to foam seal | 1 | |
| 21 | SCREW Baffle to center frame | 2 | |
| 22 | 40R Models Only 40TE Models Only | 1 | |
| 23 | Детать | 1 | |
| 24 | CLAMP | 1 | |
| 25 | SCREW (005 per pack) | 2 | |
| 26 | SCREW | 1 | |
| 28 | FUEL CONN. BODY AY | 1 | |
| 29 | GROMMET | 4 | |
| 30 | HOOK-MTR CVR-LWR | 1 | |
| 31 | NIPPLE MC LWR 5PK (005 per pack) | 1 | |
| 32 | SUPPORT CCASE | 1 | |
| 33 | WASHER-MOUNT | 8 | |
| 34 | SUPPORT | 1 | |
| 35 | SPACER | 4 | |
| 36 | SCREW | 4 | |
| 37 | 40R Models Only 40TE Models Only | 1 | |
| 38 | SCREW | 4 | |
| 39 | Electric Start Models Only | 1 | |
| 40 | SCREW | 2 | |
| 42 | SCREW | 4 | |
| 43 | WASHER | 8 | |
| 44 | FRAME | 1 | |
| 45 | SCREW | 3 | |
| 46 | PLUG | 1 | |
| 47 | GROMMET | 1 | |
| 0210096 | Not Shown MODELS WITH "A OR J" SERIAL NUMBER PREFIX ONLY | 1 | |
| 0282054 | Not Shown | 1 |
