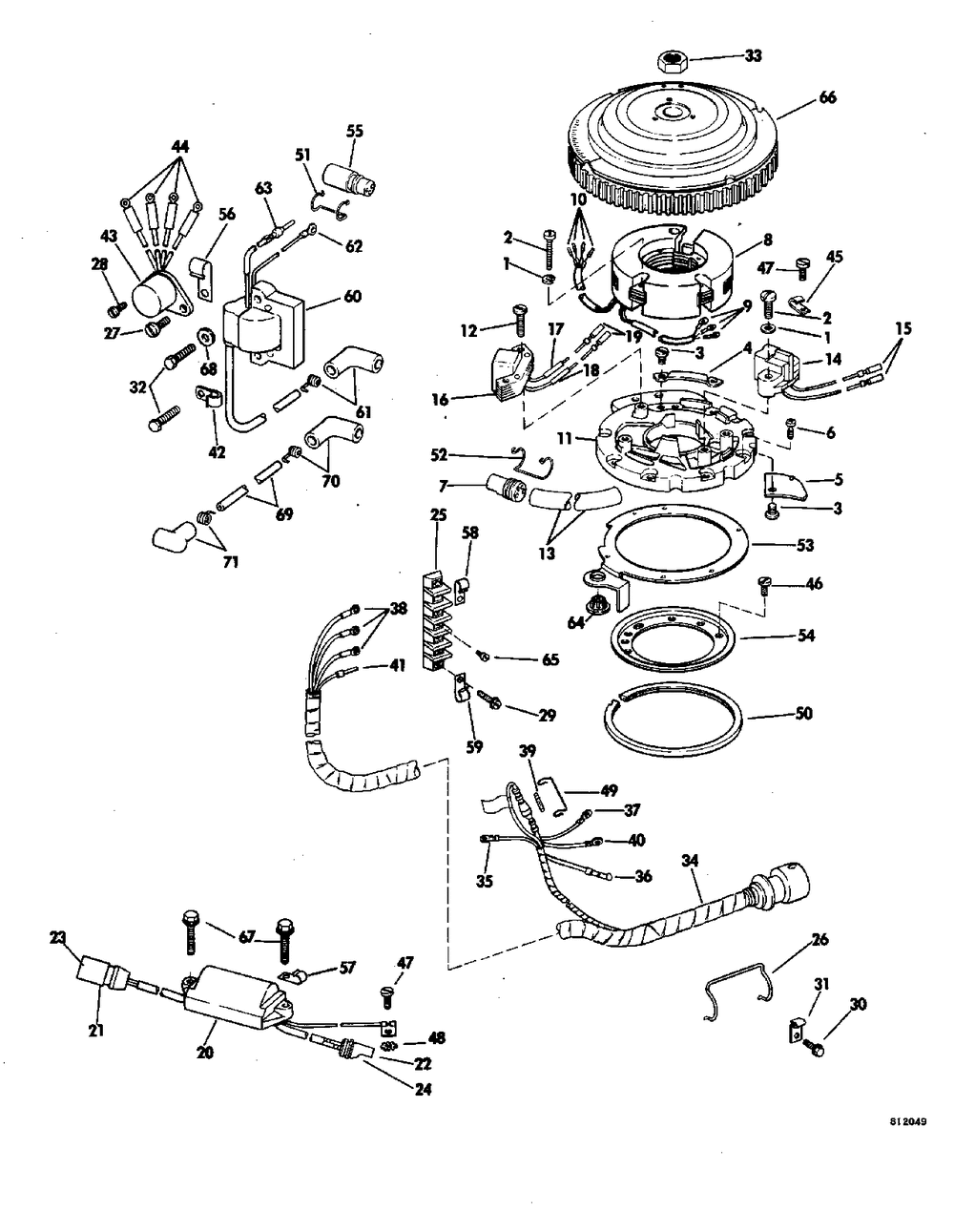

IGNITION SYSTEM

Корзина пуста
Наименование Примечание Кол-во
1 LOCK WASHER 3
1 WASHER 2
2 SCREW 3
2 SCREW 2
3 SCREW 3
3 SCREW 3
4 CLAMP-LEADS 1
5 COVER-LEADS 1
6 SCREW-RET TO PLATE 5
7 4-PIN CONNECTOR 110TLCDF Models Only 1
8 STATOR AY 5AMP 1
9 TERM. 40724 (005 per pack) 3
10 TERMSCKT (010 per pack) 4
11 Детать 1
11 PLATE SLEEVE AY 1
12 SCREW 45RC - 45RCL - 55RW Models Only 2
13 TUBING 1
14 SENSOR AY ROPE START MODELS 1
16 CHARGE COIL ROPE START MODELS ONLY MODELS WITH "A OR E" SERIAL NUMBER PREFIX ONLY 1
17 TERM.485043-1 2
18 SLEEVE 2
20 PWR PACK CD2 1
21 CONNECTOR 110TLCDF Models Only 1
22 3-PIN CONNECTOR 1
23 PIN(10)44-100-1414 (010 per pack) 4
25 TERMINAL BLOCK 1
26 CLAMP 1
27 SCREW 1
28 SCREW 1
29 SCREW 2
30 SCREW Electric Start Models Only 1
31 SPRING 1
32 SCREW 4
33 NUT CRANKSHAFT 1
33 NUT FLYWHEEL 1
34 CABLE AY MOTOR 40TE Models Only 1
35 TERM. 40977 1
36 TERMINAL 1
37 RING TERMINAL 0.312 in. (7.9mm) diameter 1
39 FUSE-20AMP/10 PACK (010 per pack) 1
40 TERM. 61867-2 1
42 J-CLAMP 2
43 RECTIFIER AY 1
45 CLAMP 0
46 SCREW 4
47 SCREW 0
48 LOCKWASHER (005 per pack) 3
49 RETAINER 1
50 BEARING SUPPORT 1
51 RETAINER-CABLE CON 1
52 RETAINER-CABLE CON 1
53 Детать 1
54 SUPPORT PLATE 1
55 CONNECTORAMPEHNOL 1
56 CLAMP 'J' Rope Start Models Only 1
57 CLAMP 1
58 CLAMP 1
60 KIT AYIGN COIL 2
61 SP PLUG BOOT 10PK (010 per pack) 1
62 TERM. 61867-2 0.250 in. (6.3 mm) diameter 1
64 JOINT KIT 5 PK (005 per pack) 1
65 SCREW 5
66 Детать 1
67 SCREW 2
68 WASHER 3
69 SP PLUG LEAD AY 2
71 COIL BOOT 10 PK (010 per pack) 1
0581853 SENSORCOILPLATE ROPE START MODELS Not Shown 1
0581855 Not Shown 1
