Johnson J35RLCSM J35RLCSM GEARCASE - 35

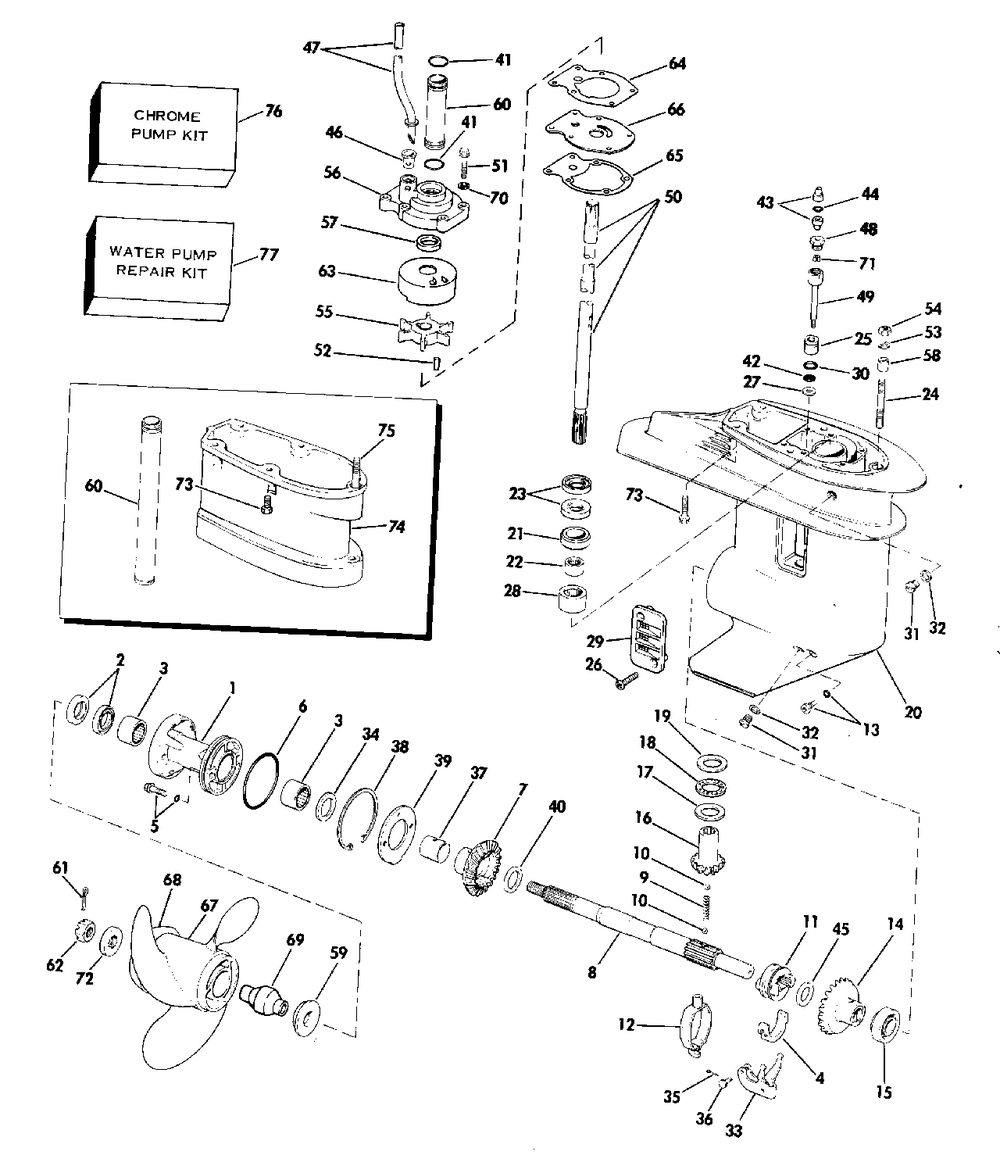

GEARCASE - 35
№ Наименование Примечание Кол-во
1 PS BRG HSG&SEAL AY 1
2 OIL SEAL Contents of Gearcase Seal Kit (005 per pack) 2
3 BRG AY NEEDLE 2
4 CRADLE CLUTCH DOG 1
5 SST SCREW 2
6 O-RING (005 per pack) 1
7 GEAR REV 14:27 1
8 FF PROP SHAFT AY 1
9 Детать 1
10 BALL DETENT (005 per pack) 2
11 FF SHIFTER C DOG 1
12 YOKE & CONNECTOR 1
13 PIVOT PIN & WASHER 1
14 GEAR & BUSHNGFWD 1
15 ROLLER BRG AY 1
16 PINION GEAR14:27 1
17 THRUST WASHER-LWR 1
18 THRUST BRG AY 1
19 FF THRUST WASHER 1
20 Детать 1
21 BEARING HSG DSHAFT 1
22 BEARING AY 1
23 OIL RET BRG HSG DS Contents of Gearcase Seal Kit 2
24 FF STUD 1
25 BUSHING 1
26 SCREW (005 per pack) 4
27 WASHER Contents of Gearcase Seal Kit 1
29 SCREENWATER INLET 2
30 O RING Contents of Gearcase Seal Kit 1
31 DRAIN FILL PLG 10P (010 per pack) 2
32 WASHER-10 PK (010 per pack) 1
33 FF LEVER SHIFTING 1
34 FF THRUST WASHER 1
35 COTTER PIN 1
36 PIN 1
37 FF BUSHING REV GR 1
38 FF RETAINING RING 1
39 FF RETAINER PLATE 1
40 FF THRUST WASHER 1
41 O RING 2
42 O RING Contents of Gearcase Seal Kit (005 per pack) 1
43 SCRAPER&O-RING Also included in WATER PUMP REPAIR KIT (incl.impeller housing) 391636 2
44 O-RING 1
45 FF THRUST WASHER 1
46 GROMMET (005 per pack) 1
47 5 INCH LONGER PARTS 1
47 Детать 1
48 CONNCTRSHFT ROD 1
49 KIT AYSHIFT ROD 1
50 DRIVESHAFT 15" 1
50 Детать 1
51 SCREW Also included in kit 388891 6
52 DOWEL (Contents of Water Pump Repair Kit. RL RVL EL EVL Models.) 1
53 LOCKWASHER 1
53 LOCKWASHER 1
54 NUT 1
55 IMPELLER AY. Also included in Water Pump Repair Kit 394393 1
56 IMPELLER HSG AY 1
57 SEAL PROP SHAFT 1
58 BUSHING 1
59 FF THRUST BUSHING 1
60 SPACER LONG 1
60 SPACER STD/SHORT 1
61 FF COTTER PIN 5PK (005 per pack) 1
62 FF PROP NUT 1
63 CUP IMP HSG Also included in WATER PUMP REPAIR KIT (Includes impeller housing) 391390 1
64 GASKET Also included in WATER PUMP REPAIR KIT (incl.impeller housing) 391636 1
65 GASKET 1
66 PLATE-IMPELLER HSG Also included in WATER PUMP REPAIR KIT (includes impeller hou 391636 1
67 Детать 1
67 PROPAL/10.3X13 1
67 PROPAL 11 X 9 RH 1
67 PROPSS-10X11 3BLD 1
67 Детать 1
67 Детать 1
67 Детать 1
67 Детать 1
67 PROPAL 10.5X11 RH 1
68 CONVERGING RING 1
69 Детать 1
70 WASHER 6
71 KEEPER 1
72 SPACER PROP NUT 1
73 SCREW-PIVOT CAP 235 MODELS ONLY 4
73 SCREW 4
74 Детать 1
76 Детать 1
77 WTR PUMP KIT 1
77 WTR PUMP KIT 1
0317178 SEAL (010 per pack) 1
0325541 SHIFT ROD-LNG 1
0390383 Not Shown 1
0390855 Not Shown 1
