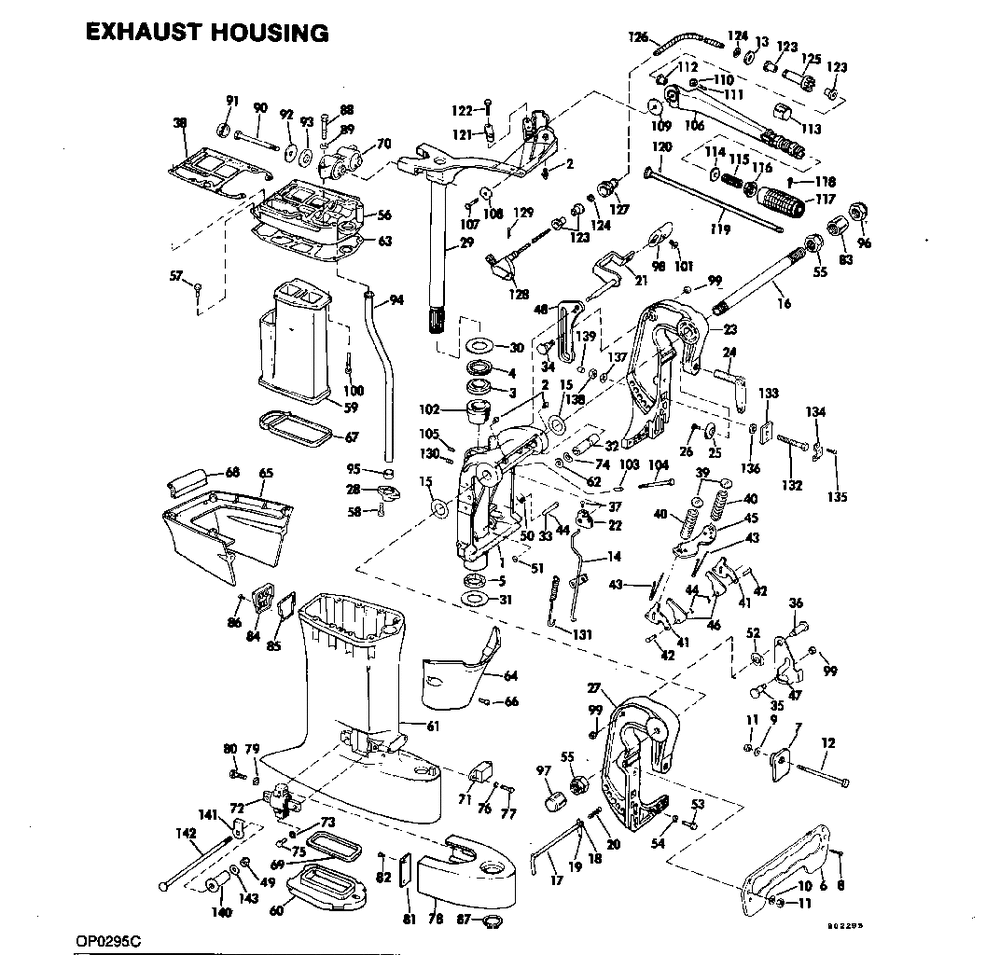

EXHAUST HOUSING

Корзина пуста
Наименование Примечание Кол-во
1 SWIVEL BRKT (WR Models Only.) 1
1 SWIVEL BRKT (WRL Models Only. WRY Models Only.) 1
1 Детать 1
1 BRACKET SWIVEL 1
2 FITTING LUBE 0
3 BUSHING 1
3 BUSHING 1
4 SEAL 1
5 SEAL 1
6 PLATE TRANSOM 1
7 PAD-S BRKT 2
8 SCREW 4
9 WASHER SB 2
10 WASHER 2
11 NUT 4
12 SCREW 4
13 WASHER 1
14 ROD&BRKT AY 1
15 THRUST WASHER 2
16 TUBE TILT SST 1
17 THRUST ROD 1
19 RETAINER STRN 1
20 SPRING 1
21 LVR ROD&BELLCRANK MODELS WITHOUT POWER TILT & TRIM 1
22 BELLCRANK TILTLOCK 1
23 STERN BRKT PORT 1
23 Rope Start Models 1
24 CLAMPSCREW KIT Aluminum 1
25 PLATE&SCREW AY 40RC - 40RL 1
26 PLATE&SCREW AY 1
27 STERN BRKT STBD 1
27 Rope Start Models 1
28 CVR-WTR TUBE 1
29 PIVOT SHAFT&ARM ELECTRIC START MODELS MODELS WITH "H" MODEL NUMBER SUFFIX ONLY 1
29 PIVOT SHAFT&ARM ELECTRIC START MODELS MODELS WITH "H" MODEL NUMBER SUFFIX ONLY 1
29 Rope Start Models 1
29 Rope Start Models 1
30 THRUST WASHER 1
31 THRUST WASHER 1
32 BUSHING 1
33 PIN-LINK 2
34 SCREW 1
35 SCREW 1
36 SCREW 1
37 SCREW-BELLCRK 1
38 GASKET PWHD-ADAPT 1
39 CUP 2
40 SPRING 2
41 LINK LOCK LVR 2
42 PIN-LINK 2
43 RETAINER 2
44 COTTER PIN 4
45 PLATE REVERSE LOCK 1
46 LEVER-LOCKING 2
47 Детать 1
48 Детать 1
49 NUT 30RC-30RLC-35RC-35RLC Models Only 30TEC-30TELC Models Only 1
50 SPRING-LINK 2
51 WASHER Electric Start Models Only 2
52 WASHER/SPRING 2
53 SCREW 2
54 LOCKWASHER 2
55 LOCKNUT 2
57 SCREW 2
58 SCREW 2
59 HOUSINGEXHAUST 15 in. (381mm) Long Models Only 1
59 EXH HSG INNER 1
60 EXH HSG INNER (WR Models Only.) 1
60 Детать 1
61 15 in. (381mm) Long Models Only 1
61 Детать 1
61 EX HSG LONG 1
61 ROPE START MODELS 1
62 WASHER 1
63 GASKETADPTR-HSG 1
64 COVER EXH HSG FRNT 1
65 Детать 1
66 SCREW 2
67 SEAL-EXH HSG (WR Models Only.) 1
68 Детать 1
69 SEAL-EXH HSG (WR Models Only.) 1
70 MOUNT AYRUBBER 1
71 RUBBER MT LOW 1
72 RUBBER MT AY-LWR 2
74 SPRING WASHER 1
76 LOCKWASHER 5 PK (005 per pack) 2
77 SCREW 2
78 Детать 1
80 SCREW MT BRKT 4
81 Детать 2
82 SCREW COVER 4
83 PLUG 1
84 CVR EXH RELIEF 1
85 GASKET EX RLF CVR 1
86 SCREW 2
87 RETAIN RING 1
88 SCREW 3
90 SCREW 2
91 BUMPER 2
92 RETAINING WASHER 2
93 WASHER 2
94 15 in. (381mm) Long Models Only 1
94 Детать 1
95 WASHER WTR TUBE 1
96 NUT-STEERING WIPER Recommended to Prevent Corrosion in Salt Water Usage 1
97 CAPSTEER-TUBE 1
98 KNOB-TILT LOCK Models Without Power Trim & Tilt 1
99 NUT 3
100 SCREW 6
101 SCREW 1
102 THRUST RING 1
103 PIN 1
104 SCREW-STRING 1
105 SCRW THRST RG 1
106 STEERING HDLE 1
107 SCREW 1
108 WASHER SPRING 1
109 WASHER THRUST 1
110 NUT 1
111 COTTER PIN 1
112 BUSHING STRG HNDL 1
113 Детать 1
114 WASHER 1
115 Детать 1
116 BLOCK 1
117 Rope Start Models 1
118 Детать 1
119 5ROO-GEAR&SHAFT Rope Start Models 1
120 GROOVE PIN 1
121 CLMAP Rope Start Models 2
122 SCREW 2
123 BUSHING 4
124 SNAP RING Rope Start Models 2
125 GEAR & SHAFT Rope Start Models 1
126 CASING Rope Start Models 1
127 GROMMET Rope Start Models 1
128 LEVER&CABLE AY Rope Start Models 1
129 COTTER PIN 10PK (010 per pack) 1
130 SCREW 1
131 SPRING 1
132 3 1/2" TRNSM BOLT Optional 4
132 6" TRNSM BOLT 4
132 4 3/4" TRNSM BOLT 4
133 SQ PLATE 4PK (004 per pack) 2
134 RETAINER Optional 2
135 SCREW RET TO PLATE Optional 4
136 WASHER 5 PK (005 per pack) 2
137 WASHER 5 PK (005 per pack) 4
138 NUT (004 per pack) 4
139 CAP-TRAN SCR (004 per pack) 4
140 BUSHING (9.9 Rope Models. 9.9 Tiller Electric High Thrust Models. 15 Rope Models.) 2
141 WASHER-TILT PIN (9.9 Rope Models. 9.9 Tiller Electric High Thrust Models. 15 Rope Models.) 1
142 BOLT-TILTING SHAFT 30RC-30RLC-35RC-35RLC Models Only 30TEC-30TELC Models Only 1
143 WASHER 1
0172912 Not Shown Models Without Power Trim and Tilt 1
0384189 TRANSOM PLATE KIT Not Shown 1
0391275 Not Shown 1
