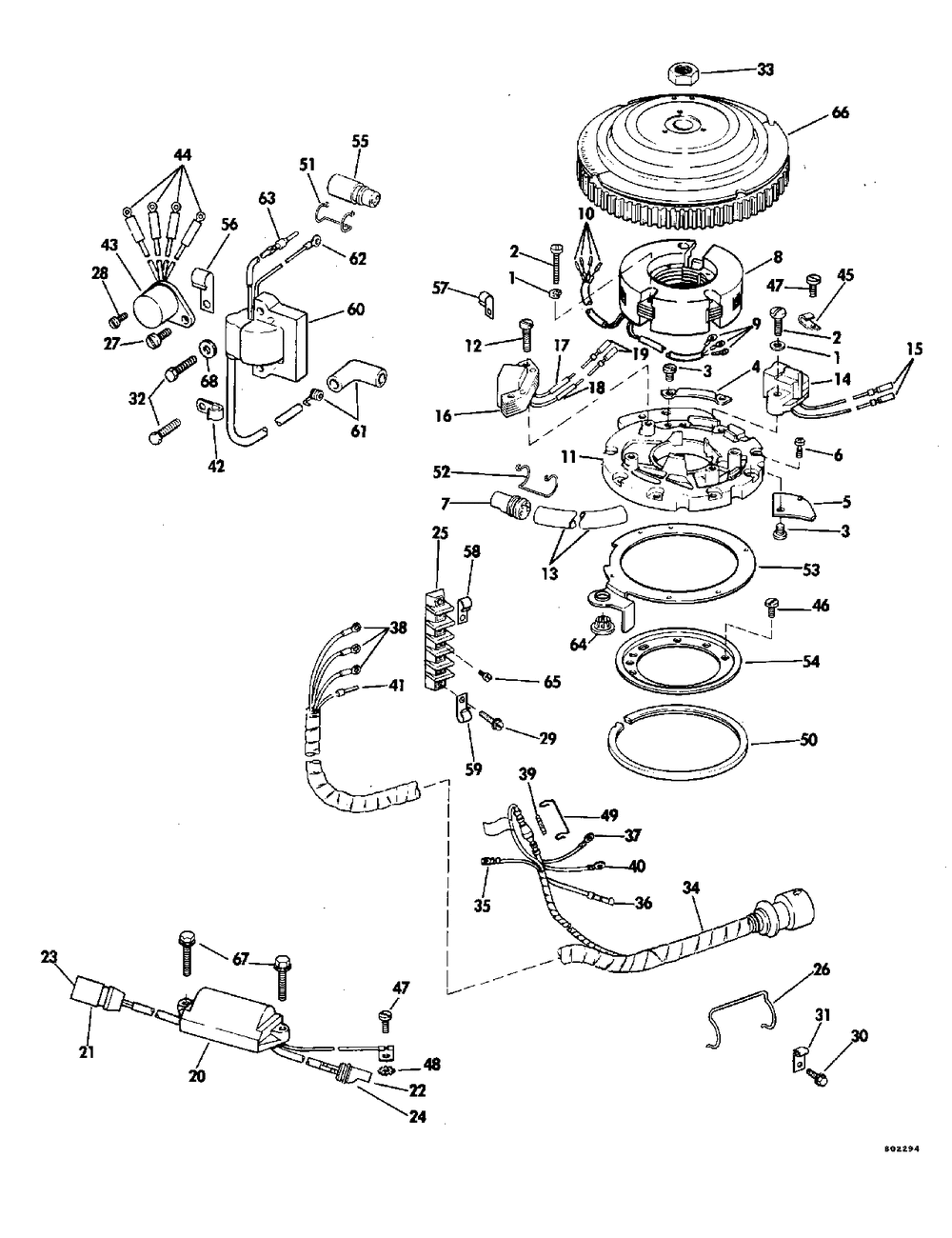

IGNITION SYSTEM

№	Наименование	Кол-во
1	LOCK WASHER	3
1	WASHER	2
2	SCREW	2
2	SCREW	3
3	SCREW	3
3	SCREW	3
4	CLAMP-LEADS	1
5	COVER-LEADS	1
6	SCREW-RET TO PLATE	5
7	4-PIN CONNECTOR	1
8	STATOR AY 5AMP	1
9	TERM. 40724 (005 per pack)	3
10	TERMSCKT (010 per pack)	4
11	PLATE SLEEVE AY	1
11	Детать	1
12	SCREW 45RC - 45RCL - 55RW Models Only	2
13	TUBING	1
14	SENSOR AY ROPE START MODELS	1
16	CHARGE COIL ROPE START MODELS ONLY MODELS WITH "A OR E" SERIAL NUMBER PREFIX ONLY	1
17	TERM.485043-1	2
18	SLEEVE	2
20	PWR PACK CD2	1
21	CONNECTOR 110TLCDF Models Only	1
22	3-PIN CONNECTOR	1
23	PIN(10)44-100-1414 (010 per pack)	4
25	TERMINAL BLOCK	1
26	CLAMP	1
27	SCREW	1
28	SCREW	1
29	SCREW	2
30	SCREW Electric Start Models Only	1
31	SPRING	1
32	SCREW	4
33	NUT CRANKSHAFT	1
33	NUT FLYWHEEL	1
34	CABLE AY MOTOR 40TE Models Only	1
35	TERM. 40977	1
36	TERMINAL	1
37	RING TERMINAL 0.312 in. (7.9mm) diameter	1
39	FUSE-20AMP/10 PACK (010 per pack)	1
40	TERM. 61867-2	1
42	J-CLAMP	2
43	RECTIFIER AY	1
45	CLAMP	0
46	SCREW	4
47	SCREW	0
48	LOCKWASHER (005 per pack)	3
49	RETAINER	1
50	BEARING SUPPORT	1
51	RETAINER-CABLE CON	1
52	RETAINER-CABLE CON	1
53	Детать	1
54	SUPPORT PLATE	1
55	CONNECTORAMPEHNOL	1
56	CLAMP 'J' Rope Start Models Only	1
57	CLAMP	1
58	CLAMP	1
59	CLAMP	1
60	KIT AYIGN COIL MODELS WITH "H" MODEL NUMBER SUFFIX	2
61	SP PLUG BOOT 10PK (010 per pack)	1
62	TERM. 61867-2 0.250 in. (6.3 mm) diameter	1
64	JOINT KIT 5 PK (005 per pack)	1
65	SCREW	5
66	Детать	1
67	SCREW	2
68	WASHER	3
0581853	SENSORCOILPLATE ROPE START MODELS Not Shown	1
0581855	Not Shown	1
