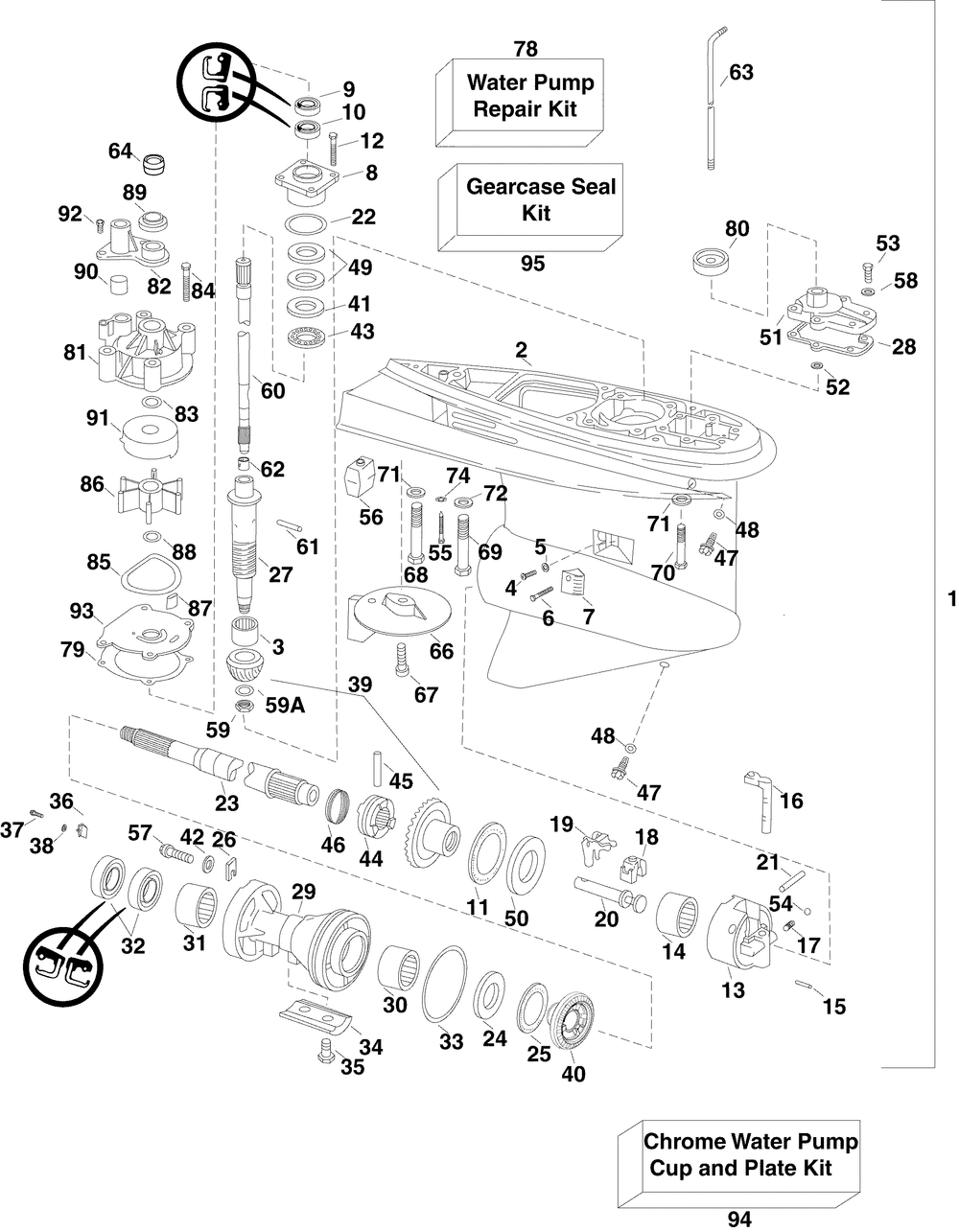

Johnson J150PLSOE J150PLSOE GEARCASE - PL - SL MODELS
GEARCASE - PL - SL MODELS
№ Наименование Примечание Кол-во
CUPIMP HSG-CHROME Chrome 1
PLATE WATER PUMP Chrome 1
1 G-CASE*V6/STD/OFFS Painted primer 1
1 GCASE*V6/OS/SMK 1
2 GCASE & BRG AY"O" 1
3 ROLLER BRG AY 1
4 RETAINING SCREW 1
5 WASHER 5PK (005 per pack) 1
6 SCREW 2
7 SCREENWATER INLET 2
8 DS BRG HSG&SEAL AY 1
9 OIL RETAINER Contents of GEARCASE SEAL KIT 1
10 OIL RETAINER Contents of GEARCASE SEAL KIT 1
11 THRUST BRG-FWD GR 1
12 SCREW Contents of GEARCASE SEAL KIT 4
13 HSG.& BEARING AY 1
14 BRG AY-FWD GEAR 0
15 PIN 1
16 DETENT 1
17 SPRING 1
18 CRADLE-SHIFT 1
19 SHIFTER-LEVER 1
20 SHAFT-SHIFTER 1
21 PIN-SHIFTER ARM 1
22 O-RING (Contents of GEARCASE SEAL KIT.) 1
23 PROPSHAFT AYSERV 1
24 THRUST WASHER 1
25 BEARING AYTHRUST 1
26 RETAINING TAB 2
27 DRIVESHAFTLOWER 1
28 GASKET Contents of GEARCASE SEAL KIT (005 per pack) 1
29 PS BRG HSG&SEAL AY 1
30 NEEDLE BRG 1
31 BEARING AYNEEDLE 1
32 SEAL Contents of GEARCASE SEAL KIT 2
33 O-RING Contents of GEARCASE SEAL KIT (010 per pack) 1
34 ANODE & INSERT AY 1
35 SCREW 2
36 WEDGE 1
37 SCREW 1
38 WASHERSPRING 1
39 GEARSETSVC STD Ratio 1
40 GEARREVERSE .54 1
41 THRUST WASHER 1
42 WASHER 2
43 THRUST BRG AY 1
44 SHIFTER-CLUTCH DOG 1
45 PIN 1
46 SPRING 1
47 DRAIN SCREW Contents of GEARCASE SEAL KIT 2
48 WASHER-10 PK (010 per pack) 1
49 SHIM-PINION-003 0
49 SHIM-PINION-004 0
49 SHIM 005 0
50 THRUST WASHER 1
51 COVER AYSHIFT ROD 1
52 O-RING (005 per pack) 1
53 SCREW (005 per pack) 6
54 BALL 1
55 SCREWANODE 1
56 ANODE&INSERT AY 1
57 SCREW BRG CARRIER 2
58 WASHER 6
59 NUT PINION 1
59A WASHER 1
60 KITUPPER D/S-20" 1
61 PINROLL 1
62 RETAINERDR SFT 1
63 SHIFT ROD 20" 1
64 SEALPUMP-EX HSG 20 in. Models 1
66 TABTRIM-STD DE200 1
67 SCREW 1
68 SCREW 1
69 SCREW 1
70 SCREW 4
71 WASHER 5
72 WASHER 1
74 LOCKWASHER 1
78 KIT AYWATER PUMP 3.3 L models 1
79 GASKETWTR PMP 5PK Contents of GEARCASE SEAL KIT (005 per pack) 1
80 GROMMET EXH HSG 1
81 HOUSING AYIMPLR 1
82 COVERIMPELLER HSG 3.3 L models 1
83 O-RING (005 per pack) 1
85 SEAL 1
86 KIT AYIMPELLER 1
87 IMP KEY-WHITE 1
88 O RING 1
89 GROMMET 1
90 GROMMET 3.3 L models 1
91 CUPIMP HOUSING Stainless 1
92 SCREW 2
93 PLATEWATER PUMP Stainless 1
94 CUP & PLATE AY Optional 1
95 KIT AYSEAL-GC 1
