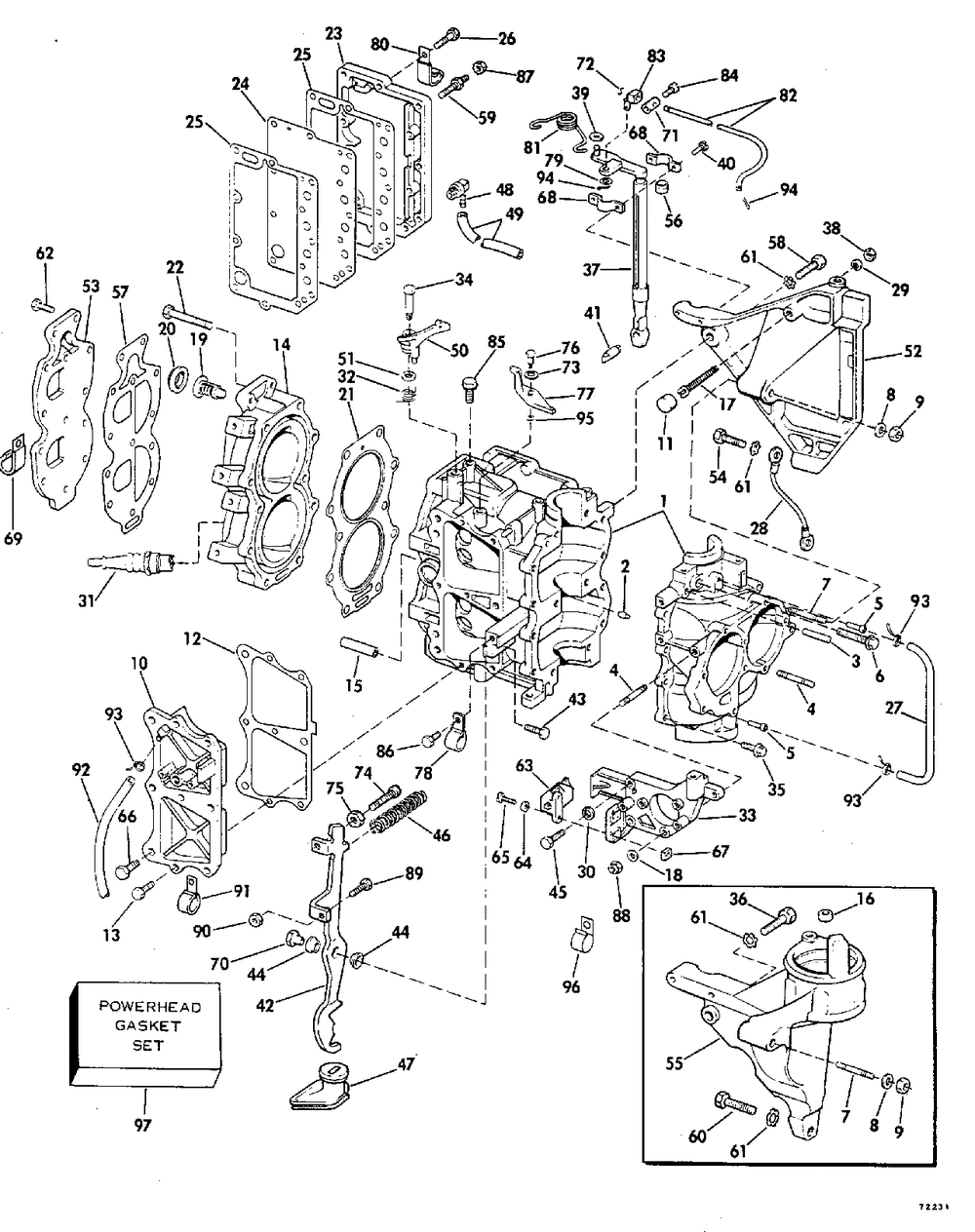

CYLINDER & CRANKCASE

Johnson 35RL77C 35RL77C CYLINDER & CRANKCASE

№	Наименование	Кол-во
1	25 HP Modeld Only	1
1	35 HP Models Only	1
2	DOWEL	1
3	PIN 4PK (004 per pack)	1
4	Детать	7
5	NIPPLE	2
6	SCREW	6
7	STUD	1
8	WASHER	1
9	NUT	1
10	COVER 35 HP MODELS ONLY	1
10	COVER-BY PASS 25 HP MODELS ONLY	1
11	BUMPER	1
12	FF GASKET CVR CYL	1
13	SCREW	6
14	25 HP Modeld Only	1
14	35 HP Models Only	1
15	DEFLECTOR	2
16	SEAL-STARTER	2
17	SCREW/SPARK ADJ Manual Start Models	1
17	Electric Start Models Only	1
19	THERMOSTAT AY Early Production	1
20	SEAL 4 PK (004 per pack)	1
21	Детать	1
22	SCREW	10
23	Детать	1
24	Детать	1
25	FF GASKET EXH CVR	2
26	SCREW	12
28	Детать	1
29	LOCKWASHER	1
30	WASHERLOCK	1
31	S PLUG L77JC4 8PK Optional (008 per pack)	2
32	SPRING RW Models Only	1
33	BRACKET	1
34	SCREW LOCKOUT LVR RW Models Only	1
35	SCREW EXH CVR	8
36	SCREW	1
37	Детать	1
38	NUT-SPARK ADJ	1
39	SHIM	1
40	SCREW	2
41	PIN	1
42	Детать	1
43	SCREW	1
44	Детать	2
45	SCREW	1
46	SPRING	1
47	Детать	1
48	ELBOW90DEG-5PK 40 HO 60 HP Models (005 per pack)	1
49	HOSE OVRBD PUMP	1
50	RW Models Only	1
51	WASHER	1
51	WASHER	1
52	BRACKET	1
53	Детать	1
54	SCREW	1
55	BRKT EL STARTER ELECTRIC START MODELS	1
56	Детать	1
57	FF GSKT CYL HD CVR	1
59	BOLT	1
60	SCREW	1
63	SAFETY SWITCH AY	1
64	WASHER 25 TE Models Electric Start 35 Models	2
65	SCREW 25 TE Models Electric Start 35 Models	2
66	SCREW	3
67	NUT ELECTRIC START MODELS	2
68	FF BEARING CLAMP	2
69	CLAMP	1
70	NUT	1
71	COLLAR	1
72	PIN	2
73	WASHER	1
73	WASHER	1
74	SCREW RW Models Only	1
75	NUT Electric Start Models	1
76	SCREW-SHIFT LOCK RW Models Only	1
76	SCREW ELECTRIC START MODELS	1
77	25 TE Models Manual Start Models	1
78	CLAMP	1
80	CLAMP 'J'	2
81	SPRING	1
82	FF THROTTLE CON RD	1
83	FF PIVOT PIN	2
84	SCREW	1
85	SCREW	1
86	SCREW Electric Start Models	1
89	SCREW 25 TE Models Electric Start 35 Models	1
90	NUT-SCREW THRTL	1
91	CLAMP Electric Start Models Only	1
93	TIE STRAP 100PK (100 per pack)	4
94	COTTER PIN	2
96	CLAMP 'J' Rope Start Models Only	1
97	Детать	1
0322702	GSKTMAKR 518tahos_37394 AR-As Required	0
