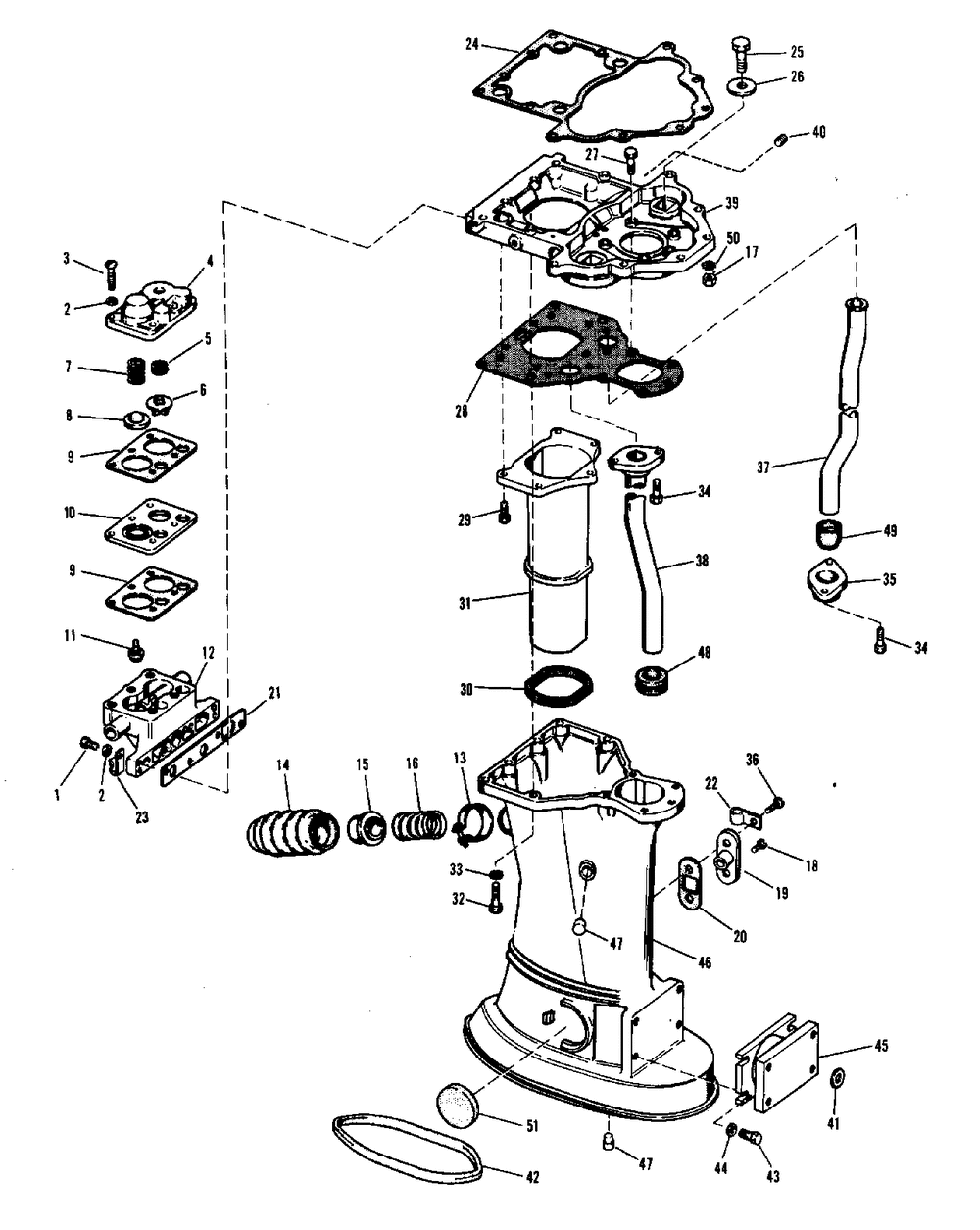

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SCREW | 4 | |
| 2 | WASHER | 9 | |
| 3 | SCREW | 5 | |
| 4 | COVER | 1 | |
| 5 | Детать | 1 | |
| 6 | CHECK VALVET-STAT | 1 | |
| 7 | Детать | 1 | |
| 8 | Детать | 1 | |
| 9 | GSKT | 2 | |
| 10 | PLATE | 1 | |
| 11 | Детать | 1 | |
| 12 | HOUSING | 1 | |
| 13 | CLAMP | 1 | |
| 14 | Детать | 1 | |
| 15 | RETAINER | 1 | |
| 16 | SPRING | 1 | |
| 17 | Детать | 6 | |
| 18 | SCREW | 1 | |
| 19 | COVER PLATE | 1 | |
| 20 | GASKET | 1 | |
| 21 | Детать | 1 | |
| 22 | CLAMP GAS LIN | 1 | |
| 23 | CLAMP | 2 | |
| 24 | GASKETPWHD-ADPTR | 1 | |
| 25 | SCREW POSITIVE | 2 | |
| 26 | Детать | 2 | |
| 27 | SCREW | 5 | |
| 28 | GASKET | 1 | |
| 29 | SCREW | 5 | |
| 30 | SEAL | 1 | |
| 31 | TUBE | 1 | |
| 32 | SCREW | 6 | |
| 33 | LOCKWASHER | 6 | |
| 34 | SCREW | 4 | |
| 35 | FLANGE COUPLING | 2 | |
| 36 | SCREW | 1 | |
| 37 | WATER TUBE THESE PARTS FOR STANDARD LENGTH MODELS ONLY.FOR LONG SHAFT MODELS SEE GEARCASE. | 1 | |
| 38 | RETAINER THESE PARTS FOR STANDARD LENGTH MODELS ONLY.FOR LONG SHAFT MODELS SEE GEARCASE. | 1 | |
| 39 | ADAPTOR | 1 | |
| 40 | PLUG | 2 | |
| 41 | SPACER | 4 | |
| 42 | SEAL RING | 1 | |
| 43 | SCREW | 4 | |
| 44 | WASHER | 4 | |
| 45 | RUBBER MOUNT | 1 | |
| 46 | Детать | 1 | |
| 47 | PLUG | 2 | |
| 48 | GROMMET | 2 | |
| 49 | GROMMET | 2 | |
| 50 | LOCK WASHER | 6 | |
| 51 | MOUNT | 2 |
