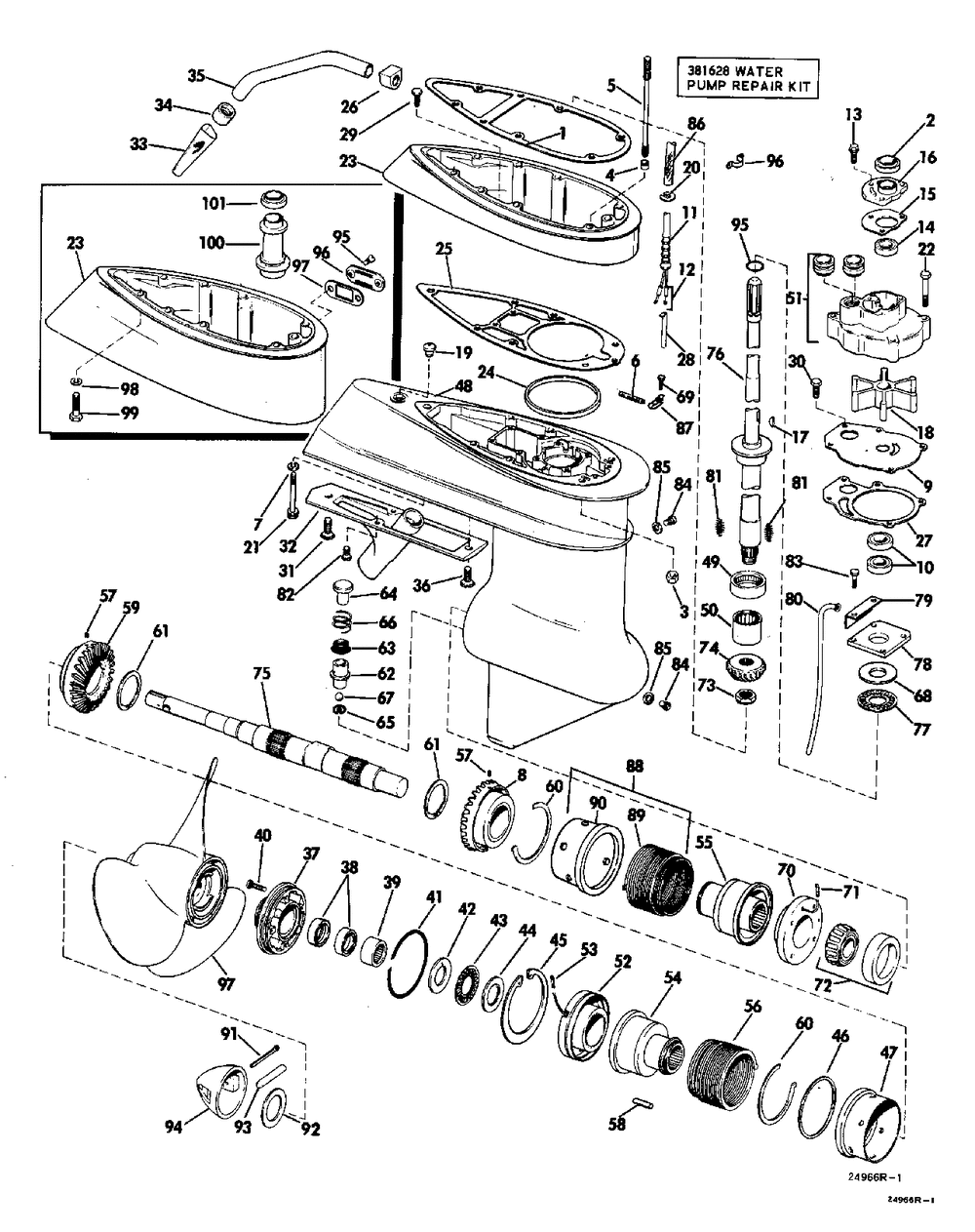

Johnson V4TL-14B V4TL-14B GEARCASE GROUP
GEARCASE GROUP
№ Наименование Примечание Кол-во
1 GASKET 1
2 GROMMET CONTENTS OF WATER PUMP REPAIR KIT 1
3 NUT 6
4 BUSHING 1
5 BOLT 6
5 STUD 1
6 Детать 1
7 LOCKWASHER 1
8 GEAR&BUSHING AY 1
9 PLATE 1
10 OIL SEAL/326716 2
11 Детать 1
12 TERMINAL KIT 1
13 SCREW 3
14 SEAL 1
15 GASKET 1
16 COVER 1
17 KEY 1
18 IMPELLER 1
19 BUMPER 1
20 RETAINER 1
21 BOLT 1
22 SCREW 4
23 EXTN & TUBE 1
23 EXT. RING 1
24 RING-G.CASE TO EXT 1
25 GASKET 1
26 GROMMET 1
27 GASKET WATER PUMP 1
28 Детать 2
29 SCREW 2
30 SCREW THESE PART No. ARE FOR STANDARD LENGTH MODELS ONLY. FOR LONG SHAFT MODELS SEE GEARCASE. 1
31 BOLT 1
32 INLET HOUSING 1
33 SCREEN 1
34 GROMMET 1
35 WATER TUBE 1
36 SCREW 1
37 Детать 1
38 SEAL 60 HP"E" MODELS 2
39 NEEDLE BRG AY 1
40 Детать 4
41 O RING 1
42 THRUST WASHER 1
43 THRUST BEARIN 1
44 WASHER 1
45 RET RING 1
46 SPACER 1
47 SLEEVE 1
48 Детать 1
49 BEARING AY 1
50 ROLLER BRG 1
51 HSG & GROM A HEAVY DUTY (CHROME PLATED BRONZE) IMPELLER HOUSING AND PLATE IS AVAILABLE. ORDER PART NUMBER 381284. 1
52 COIL 1
53 TERMINAL 1
54 HUB AYCLUTCH-REV 1
55 HUB AYCLUTCH-FWD 1
56 SPRING-CLUTCH 2
57 SCREW 6
58 NEEDLE BRG SET 1
59 GEAR 1
60 SPACER 2
61 RING 2
62 BODY AND SCREEN 1
63 SCREEN 1
64 PLUNGER 1
65 RETAINER 1
66 SPRING 1
67 BALL 1
68 WASHER 1
69 SCREW 1
70 HSG&LEAD AYCOIL 1
72 ROLLER BRG 1
73 LOCKNUT 1
74 PINION 1
75 Детать 1
76 DRIVE SHAFT 1
76 Детать 1
77 BEARING 1
78 PLATE 1
79 BRACKET 1
80 OIL LINE 1
81 MAGNET&SPRING AY 2
82 SCREW 2
83 SCREW 4
84 DRAIN FILL PLG 10P (010 per pack) 2
85 WASHER-10 PK (010 per pack) 1
86 SLEEVE 1
87 BRACKET 1
88 Детать 1
90 Детать 1
91 COTTER PIN 5 PK (005 per pack) 1
92 WASHER 1
93 DRIVE PIN 1
94 PROP NUT 1
95 SCREW (004 per pack) 2
95 O-RING (005 per pack) 1
96 COVER PLATE 1
96 CLMAP 1
97 GASKET 1
97 Детать 1
97 Детать 1
97 Детать 1
97 Детать 1
97 Детать 1
97 Детать 1
97 Детать 1
97 Детать 1
98 WASHER 2
99 SCREW 2
100 Детать 1
0312096 WATER TUBE Not Shown 1
0312097 WATER TUBE Not Shown 1
0312458 SCREW Not Shown 2
0381305 Not Shown 1
0381437 GROMMET & TAG Not Shown 2
0382817 Not Shown 1
