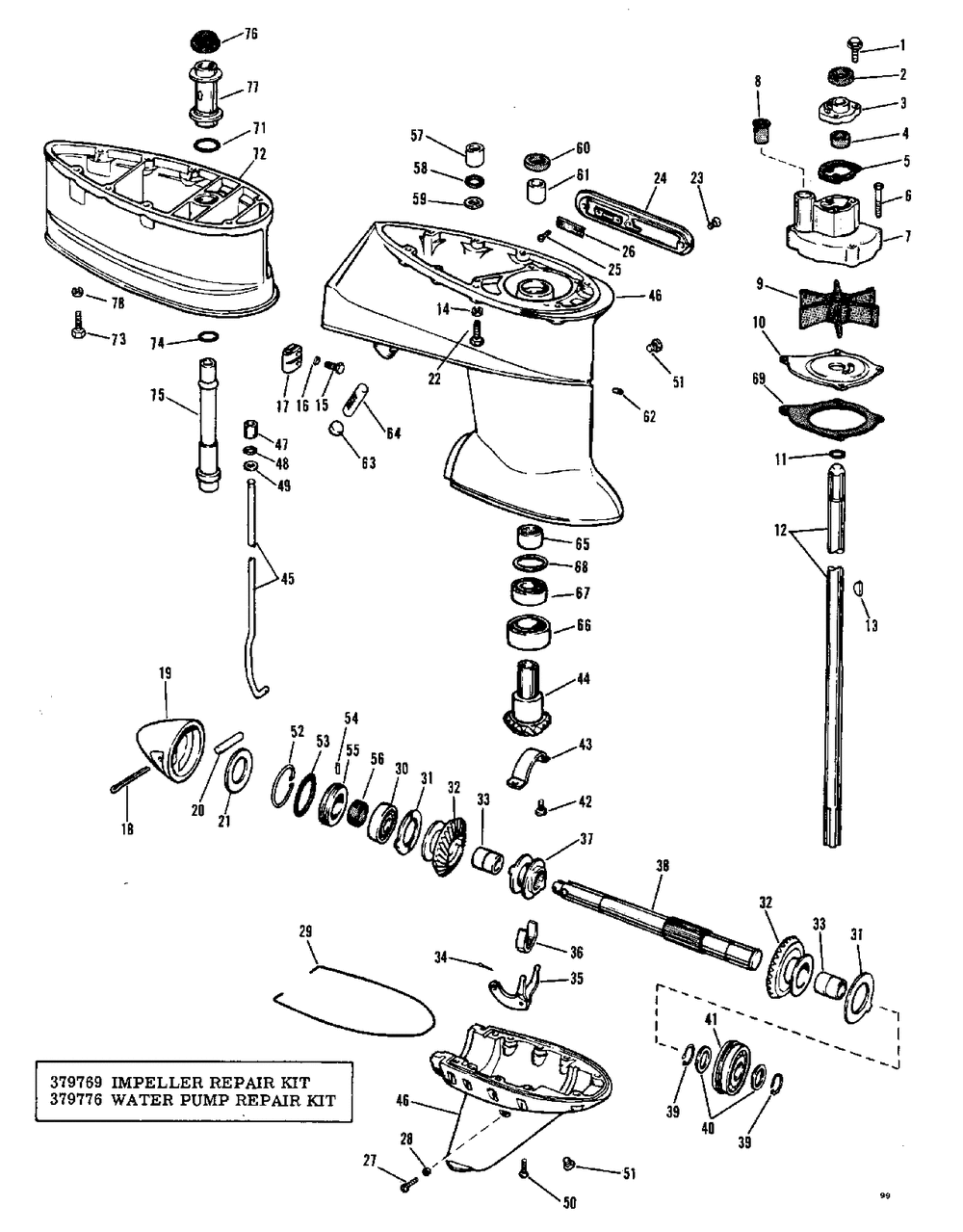

GEARCASE GROUP-HEAVY DUTY

Johnson VXL-14B VXL-14B GEARCASE GROUP-HEAVY DUTY

№	Наименование	Кол-во
1	SCREW	3
2	SEAL RING (WRL Models Only.)	1
3	COVER	1
4	SEAL	1
5	GASKET	1
6	SCREW	4
7	HSG & GROM A HEAVY DUTY (CHROME PLATED BRONZE) IMPELLER HOUSING AND PLATE IS AVAILABLE. ORDER PART NUMBER 381284.	1
8	GROMMET & TAG Not Shown	1
9	IMPELLER	1
10	HSG PLATE A HEAVY DUTY ( CHROME PLATED BRONZE ) IMPELLER HOUSING & PLATE IS AVAILABLE. ORDER PARRT NO. 377460	1
11	O-RING (005 per pack)	1
12	DRIVESHAFT	1
12	DRIVE SHAFT	1
13	KEY	1
14	LOCKWASHER	8
15	SCREW (005 per pack)	2
16	LOCKWASHER	2
17	CONNECTORSHFT ROD	1
17	CONNECTORSHFT ROD 20 INCH (508mm) LONG PARTS	1
18	COTTER PIN	1
19	PROP NUT	1
20	DRIVE PIN	1
21	THRUST WASHER	1
22	SCREW	8
23	SCREW	3
24	COVER	1
25	SCREW	2
26	SCREEN	1
27	PIN	1
28	Детать	1
30	BEARING	1
31	WASHER	2
32	GEAR	2
33	BUSHING	2
34	COTTER PIN	1
35	SHIFTER	1
36	CRADLE	1
37	CLUTCH DOG	1
38	PROP SHAFT	1
39	RING	2
40	T/WASHER	2
41	BEARING	1
42	SCREW	2
43	CLAMP	1
44	PINION	1
45	Детать	1
46	Детать	1
47	BUSHING	1
48	O RING	1
49	GASKET	1
50	SCREW (005 per pack)	10
51	DRAIN FILL PLG 10P (010 per pack)	2
52	RETAINING RING	1
53	O RING	1
54	DOWEL (Contents of Water Pump Repair Kit. RL RVL EL EVL Models.)	1
55	HOUSING-OIL RET.	1
56	RETAINER	1
57	BUSHINGWATER TUBE	1
58	O RING	1
59	WASHER	1
60	OIL SEAL/326716	1
61	BUSHING	1
62	PLUG	1
63	PLUG	1
64	SCREEN	1
65	NDLE BRG PROP SHFT	1
66	BEARING	1
67	BEARING	1
68	SHIM ONLY ONE SHIM OF THE REQUIRED THICKNESS IS USED WITH THIS ASSEMBLY.	0
68	BOLT ONLY ONE SHIM OF THE REQUIRED THICKNESS IS USED WITH THIS ASSEMBLY.	0
68	SHIM ONLY ONE SHIM OF THE REQUIRED THICKNESS IS USED WITH THIS ASSEMBLY.	0
68	SHIM ONLY ONE SHIM OF THE REQUIRED THICKNESS IS USED WITH THIS ASSEMBLY.	0
68	SHIM ONLY ONE SHIM OF THE REQUIRED THICKNESS IS USED WITH THIS ASSEMBLY.	0
68	SHIM ONLY ONE SHIM OF THE REQUIRED THICKNESS IS USED WITH THIS ASSEMBLY.	0
69	GASKET	1
71	O RING	1
72	EXTENSION HOUSING	1
75	WATER TUBE EX	2
76	GROMMET CONTENTS OF WATER PUMP REPAIR KIT	1
77	TUBEEXTENSION	1
0305535	Not Shown	1
0311598	WASHER-10 PK (010 per pack)	1
0311738	WATER TUBE Not Shown	1
0379990	Not Shown	1
0380549	EXTENSION KIT Not Shown	1
