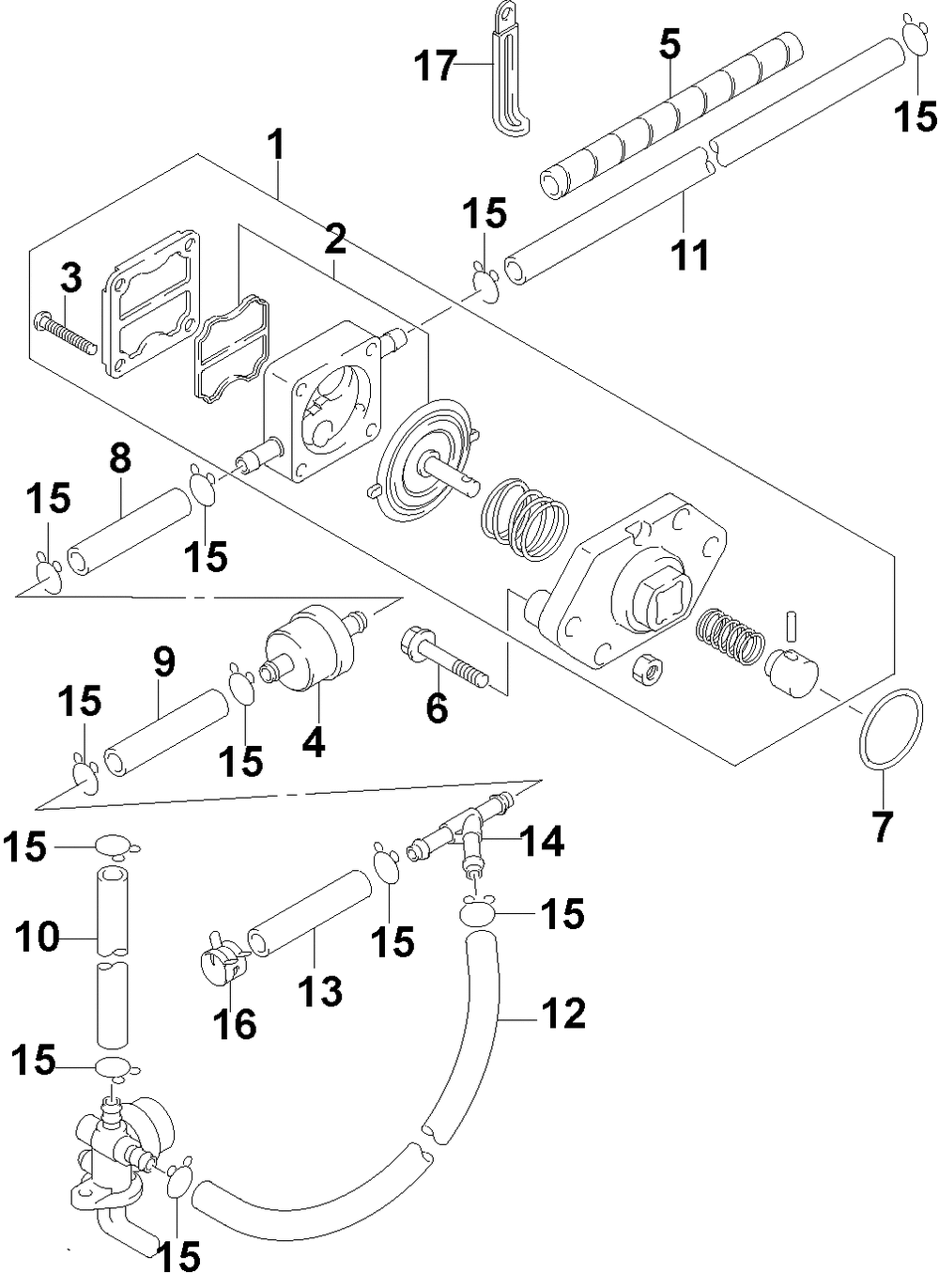

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PUMP AY | 1 | |
| 2 | DIAPHRAGM SET | 1 | |
| 3 | SCREW | 4 | |
| 4 | FILTERFUEL | 1 | |
| 5 | TUBE | 3 | |
| 6 | BOLT 6X28 | 2 | |
| 7 | RING(D:2 ID:27.5) | 1 | |
| 13 | HOSE 5X8.2X600 | 1 | |
| 14 | TEE | 1 | |
| 15 | CLIP | 11 | |
| 16 | CLIP | 1 | |
| 17 | CLAMPL:65 | 1 | |
| 18 | KIT AYFUEL CONN DR models | 1 | |
| 19 | SCREW | 1 | |
| 20 | WASHER Negative battery stud to center frame | 1 |
