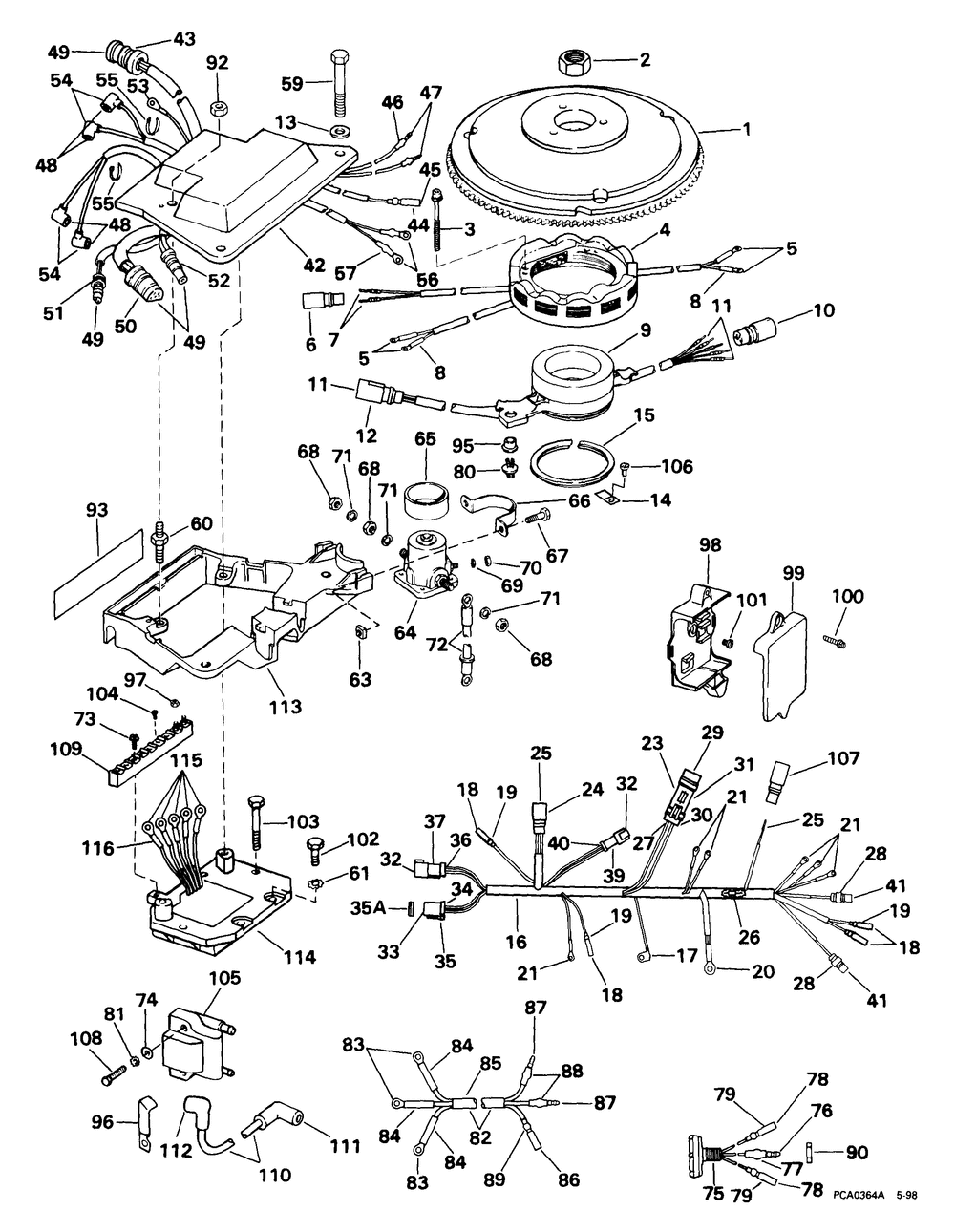

IGNITION SYSTEM

Корзина пуста
Наименование Примечание Кол-во
1 Детать 1
2 Детать 1
3 SCREW-STATOR 4
4 STATOR AY 3/9AMP 1
5 RING TERMINAL 4
6 CONN 2 PIN RCPT (Tiller Electric Models Only.) 1
7 PIN(10)44-100-1414 (010 per pack) 2
8 SLEEVE 4
9 TIMER BASE AY 1
10 CONNECTOR 5-PIN 1
12 CONN 4 PIN RCPT 1
13 WASHER Trim manifold to DPS manifold 1
14 CLAMP 4
15 Детать 1
16 CABLE AYMOTOR 1
17 RING TERMINAL (005 per pack) 1
18 TERMINAL (005 per pack) 4
19 SLEEVESOCKET BLUE 4
20 RING TERMINAL 0.312 in. (7.9mm) diameter 1
23 FUSE20 AMP (005 per pack) 2
26 DIODE KIT 1
27 TERMINALRCPT (002 per pack) 2
28 CONN1 SKT PLUG 2
29 PLUGFUSE 1
30 CONNFUSE PLUG 1
31 COVERINLINE FUSE 1
32 TERMINALPIN-10PK (010 per pack) 8
33 TERMINALSKT-10PK (010 per pack) 5
34 LOCKWEDGE-6S PLUG 1
35 CONN6SKT PLUG 1
35A SEAL6 LEAD PLUG 1
36 LOCKWEDGE-6P RCPT 1
37 CONN6PIN RCPT 1
38 PLUGSEALING 1
39 CONN2PIN RCPT 1
40 LOCKWEDGE 2P RCPT 1
41 TERMSCKT (010 per pack) 2
42 KIT AYCD4AL67 PP 1
43 CONNECTOR 1
46 SLEEVEBULLET TERM 2
47 TERM. 521616-ADZ (010 per pack) 2
48 PIN 481817-AE44 (010 per pack) 4
50 CONN 5 SKT PLUG 1
51 CONNECTOR PLUG 1
53 TERM. 61867-2 0.250 in. (6.3 mm) diameter 1
54 COVER IGN COIL 4
55 TIE STRAP 100PK (100 per pack) 6
59 SCREW 1
59 SCREW-IMP HSG 1
60 BOLT 2
61 LOCKWASHER (005 per pack) 2
62 TIE STRAP 100PK (100 per pack) 4
63 NUT 2
64 SOLENOID AYSTART 1
65 SLEEVE 1
66 CLAMP 1
67 SCREW 2
68 NUT 3
69 LOCKWASHER 2
70 NUT.190X32 BRASS 2
71 LOCKWASHER 3
72 LEAD SOL-STARTER 1
73 SCREW 2
74 WASHER Negative battery stud to center frame 6
75 SWITCH AYTNT 1
80 PIVOT BUSHING 1
82 Детать 1
83 TERM. 40724 (005 per pack) 3
85 TUBING 1
90 NUT 1
92 NUT 2
93 Детать 1
95 SOCKET 1
96 RETAINER 3
97 NUT-SCREW THRTL 2
98 BRACKETCONNECTORS 1
99 COVERCONN BRACKET 1
100 SCREW (005 per pack) 1
101 SCREW 2
102 SCREW 2
103 SCREW 4
104 SCREW 5
105 IGNITION COIL 4
106 SCREW 4
107 CONN1 PIN RCPT 1
108 SCREW 8
109 Детать 1
110 SP PLUG LEAD AY 4
111 SP PLUG BOOT 10PK (010 per pack) 1
112 COIL BOOT 10 PK (010 per pack) 1
113 BRACKET AYELEC 1
114 RCTFR REGULTR3/10 1
