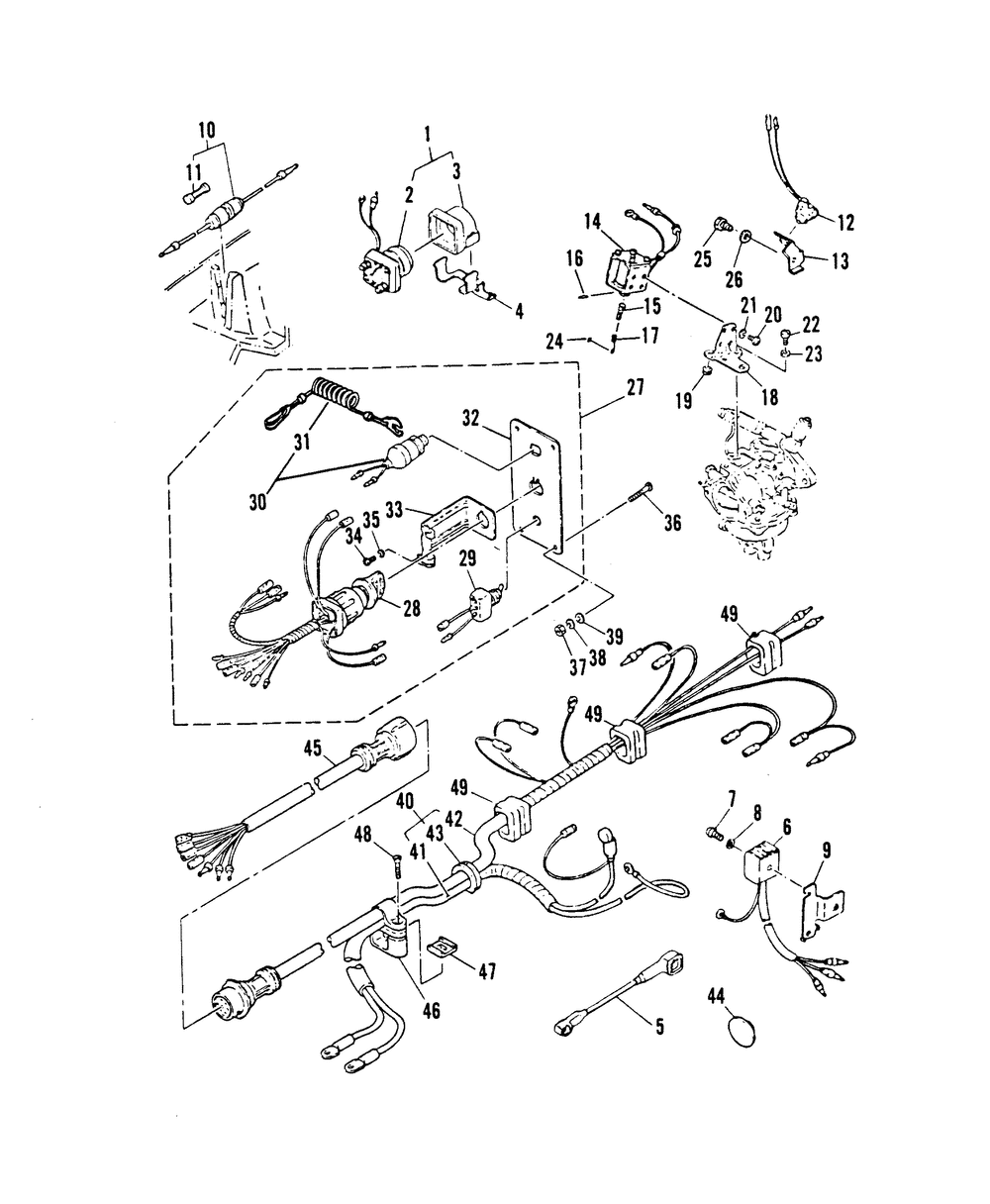

Mariner 20C (THRU PROP. EXHAUST) 6A9-550101 THRU 550693 20C (THRU PROP. EXHAUST) 6A9-550101 THRU 550693 ELECTRIC START COMPONENTS
ELECTRIC START COMPONENTS
№ Наименование Примечание Кол-во
1 ORD 89-8M0098898 1
3 HOLDER 1
4 PLATE 1
5 WIRING HARNESS SERIAL 00002351-09999999 1
5 WIRE SERIAL 00000000-00002350 1
6 RECTIFIER 1
7 SCREW 1
8 WASHER @5 (5 per pack) 1
9 PLATE SERIAL 00000000-00008215 1
10 HOSE 1
11 FUSE @5 (5 per pack) 1
12 SWITCH 1
13 BRACKET 1
14 CHOKE SOLENOID 1
15 HOOK 1
16 PIN 1
17 SPRING 1
18 RETAINER 1
19 GROMMET @2 (2 per pack) 1
20 SCREW @2 (2 per pack) 4
21 WASHER 4
22 SCREW 2
24 O RING @2 (2 per pack) 1
25 BOLT 1
26 WASHER @5 SERIAL 00008216-09999999 (5 per pack) 1
26 LOCKWASHER @5 SERIAL 00000000-00008215 (5 per pack) 1
27 PANEL SERIAL 00000000-00002350 1
27 KEY/SWITCH PANEL SERIAL 00002351-09999999 1
28 ORD 87-8M0078321 SERIAL 00002351-09999999 1
28 SWITCH SERIAL 00000000-00002350 1
29 SWITCH 1
30 SWITCH 1
31 LANYARD STOPPER SERIAL 00002351-09999999 1
31 LANYARD STOPPER SERIAL 00000000-00022350 1
32 PANEL SERIAL 00008216-09999999 1
32 SWITCH PANEL SERIAL 00000000-00008215 1
33 BRACKET 1
34 SCREW @5 (5 per pack) 1
35 LOCKWASHER @5 (5 per pack) 1
36 SCREW SERIAL 00008216-09999999 4
36 SCREW SERIAL 00000000-00008215 4
37 NUT @5 SERIAL 00008216-09999999 (5 per pack) 4
37 NUT @2 SERIAL 00000000-00008215 (2 per pack) 4
38 LOCKWASHER @5 SERIAL 00000000-00008215 (5 per pack) 4
40 HARNESS SERIAL 00002351-09999999 1
40 WIRING HARNESS SERIAL 00000000-00002350 1
41 WIRE SERIAL 00008216-09999999 1
41 WIRING HARNESS SERIAL 00000000-00002350 1
42 WIRE SERIAL 00002351-09999999 1
42 WIRING HARNESS SERIAL 00000000-00002350 1
43 GROMMET 1
44 PLUG 1
45 HARNESS ASSY 1
46 CLAMP SERIAL 00002351-09999999 1
47 PLATE 1
48 SCREW 1
49 GROMMET 3
