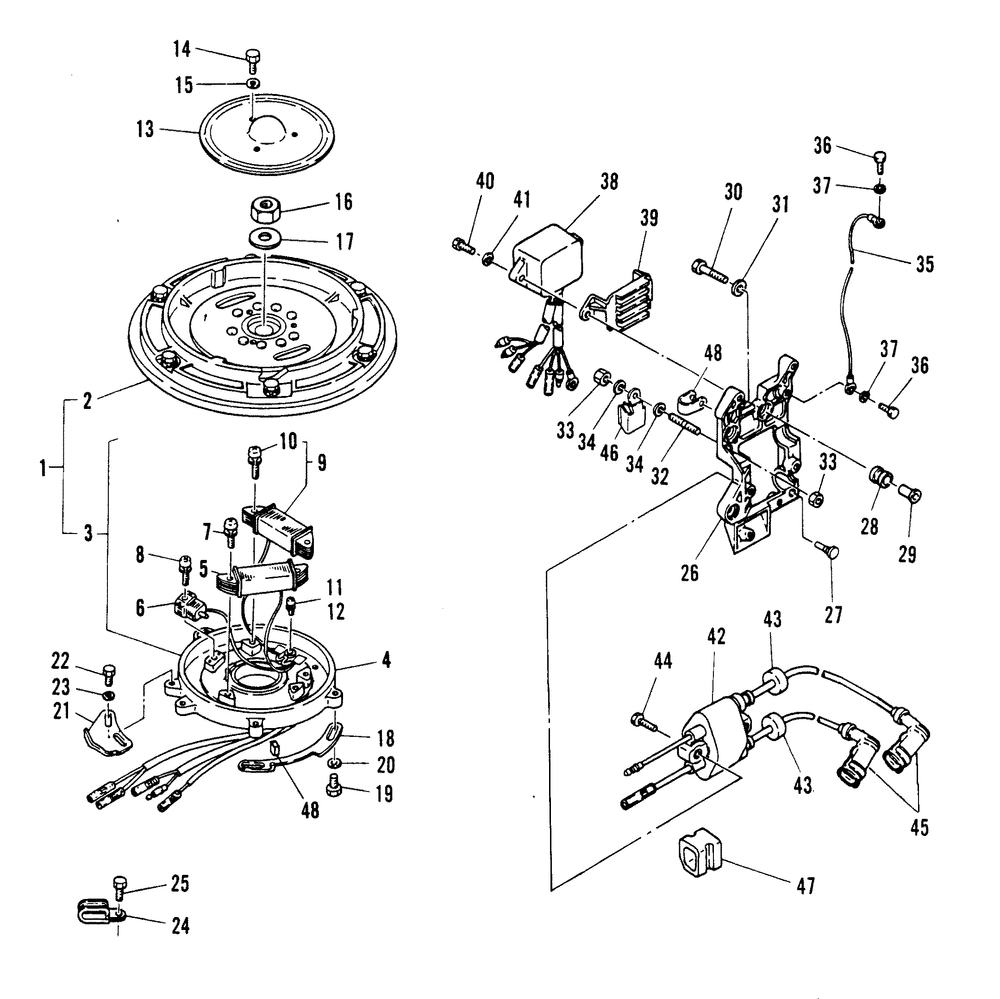

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FLYWHEEL | 1 | |
| 1 | FLYWHEEL | 1 | |
| 2 | FLYWHEEL | 1 | |
| 2 | FLYWHEEL | 1 | |
| 3 | BASE | 1 | |
| 4 | BASE | 1 | |
| 5 | COIL | 1 | |
| 6 | COIL | 1 | |
| 7 | SCREW | 2 | |
| 8 | SCREW | 1 | |
| 9 | LIGHTING COIL | 1 | |
| 10 | SCREW | 2 | |
| 11 | SCREW | 1 | |
| 12 | SCREW | 1 | |
| 13 | COVER | 1 | |
| 14 | BOLT | 3 | |
| 15 | WASHER @5 (5 per pack) | 3 | |
| 16 | NUT @2 (2 per pack) | 1 | |
| 17 | WASHER @2 (2 per pack) | 1 | |
| 18 | BRACKET (SERIAL 00000000-00009375) | 1 | |
| 18 | BRACKET (SERIAL 00009376-09999999) | 1 | |
| 21 | THROTTLE CAM SERIAL 00000000-00008215 | 1 | |
| 22 | BOLT | 2 | |
| 23 | WASHER @5 (5 per pack) | 2 | |
| 24 | CLAMP | 1 | |
| 25 | BOLT | 1 | |
| 26 | BRACKET | 1 | |
| 27 | DAMPER | 1 | |
| 28 | MOUNT | 3 | |
| 29 | COLLAR | 3 | |
| 30 | SCREW @2 (2 per pack) | 3 | |
| 31 | WASHER | 3 | |
| 32 | STUD | 1 | |
| 33 | NUT @2 (2 per pack) | 2 | |
| 34 | WASHER @5 SERIAL 00008216-09999999 (5 per pack) | 2 | |
| 35 | GROUND CABLE | 1 | |
| 37 | LOCKWASHER @5 SERIAL 00000000-00008215 (5 per pack) | 2 | |
| 38 | SWITCH BOX | 1 | |
| 39 | HOLDER | 1 | |
| 42 | IGITION COIL | 1 | |
| 43 | GROMMET | 2 | |
| 45 | PROTECTOR | 2 | |
| 45 | BOOT KIT-BLK@10 (10 per pack) | 2 | |
| 46 | CLAMP | 1 | |
| 47 | GROMMET | 1 | |
| 48 | CLAMP | 1 | |
| 49 | CAP SERIAL 00002351-09999999 | 1 |
