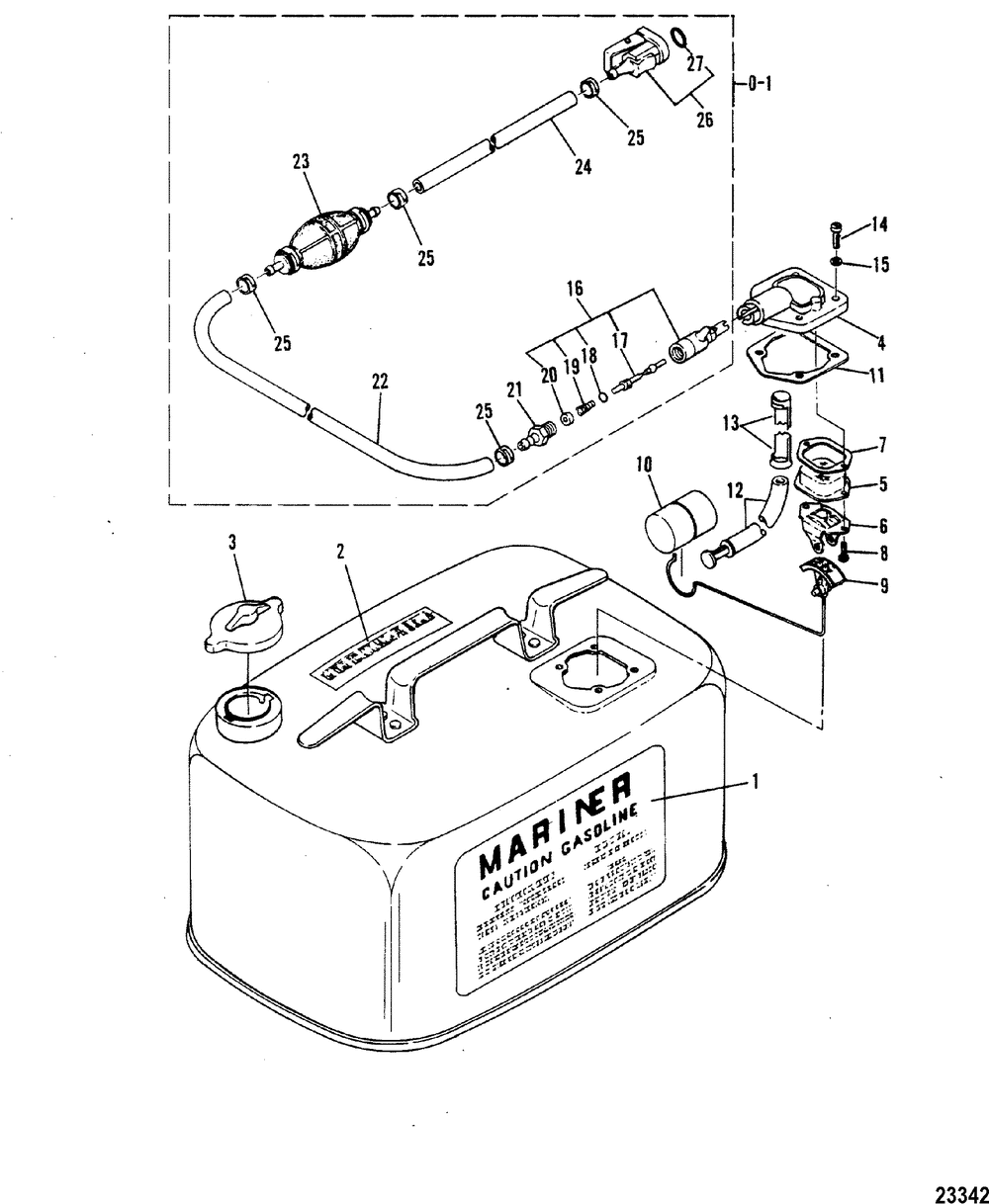

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 0-1 | REF OB SB 2011-06 | 1 | |
| 1 | DECAL | 1 | |
| 2 | DECAL | 1 | |
| 3 | GASKET | 1 | |
| 4 | HOUSING | 1 | |
| 5 | NLA SERV BLT 84-1 | 1 | |
| 6 | SUPPORT | 1 | |
| 7 | GASKET | 1 | |
| 8 | SCREW @2 (2 per pack) | 2 | |
| 9 | INDICATOR | 1 | |
| 10 | FLOAT | 1 | |
| 11 | GASKET @2 (2 per pack) | 1 | |
| 12 | HOSE | 1 | |
| 13 | CLAMP | 1 | |
| 14 | SCREW @2 (2 per pack) | 4 | |
| 15 | WASHER | 4 | |
| 16 | FUEL CONNECT@3 (3 per pack) | 1 | |
| 17 | ORD 30185Q 3 | 1 | |
| 18 | O RING @2 (2 per pack) | 1 | |
| 19 | SPRING @5 (5 per pack) | 1 | |
| 20 | WASHER-CUP @3 (3 per pack) | 1 | |
| 21 | FITTING @2 (2 per pack) | 1 | |
| 22 | HOSE | 1 | |
| 23 | PRIMER BULB @4 (4 per pack) | 1 | |
| 24 | HOSE | 1 | |
| 25 | CLAMP @5 (5 per pack) | 4 | |
| 26 | FITTING-FUEL@2 (2 per pack) | 1 | |
| 27 | O RING @5 (5 per pack) | 1 |
