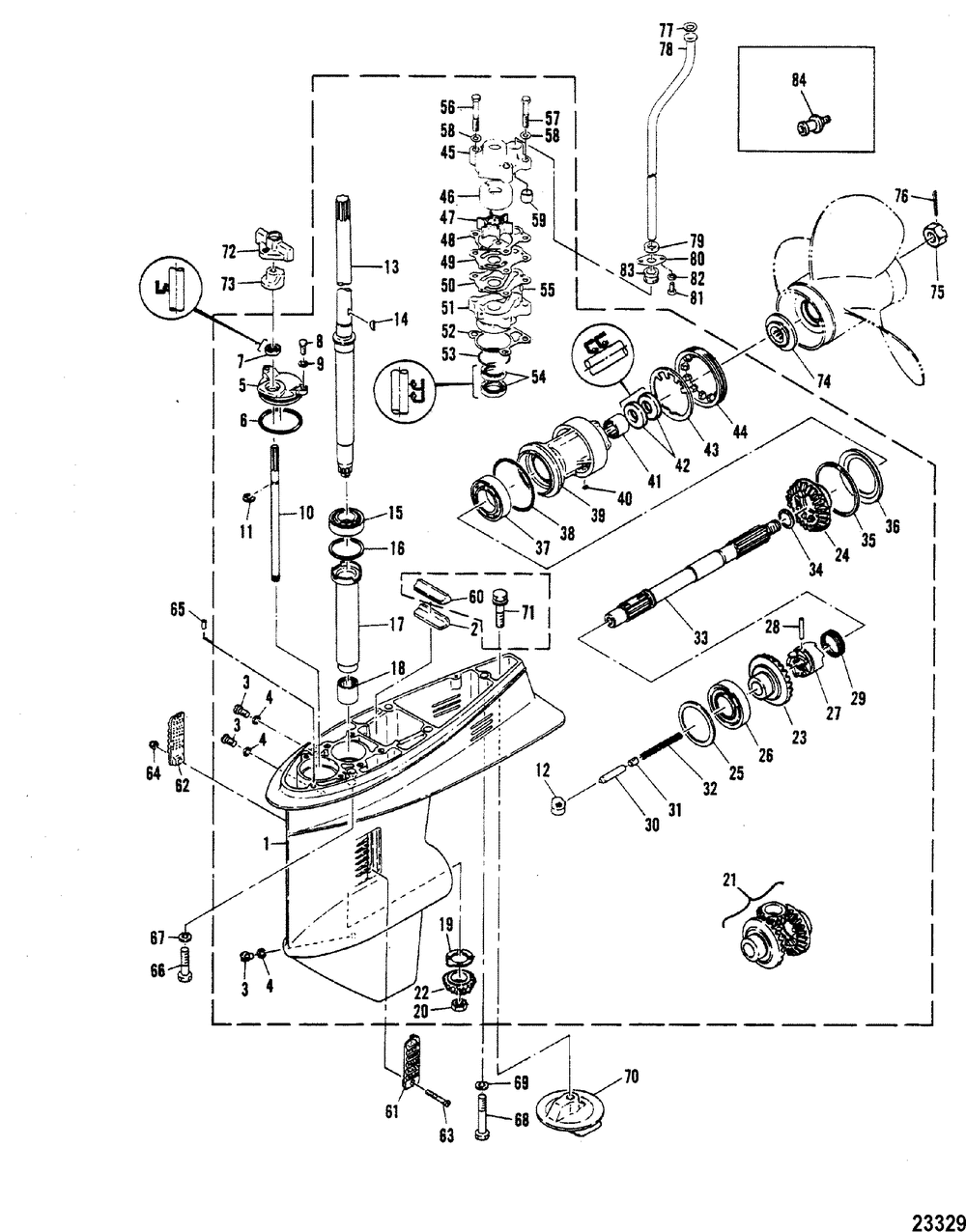

Mariner 60 (2 CYL.) E-675-00101 THRU E-675-001170 60 (2 CYL.) E-675-00101 THRU E-675-001170 GEARHOUSING ASS'Y
GEARHOUSING ASS'Y
№ Наименование Примечание Кол-во
- REPAIR KIT REPLACEMENT PARTS 1
- GASKET SET 1
0-1 GEAR HOUSING 1
0-1 GEAR HOUSING 1
1 GEAR HOUSING 1
2 GUIDE 1
3 PLUG @5 (5 per pack) 3
4 GASKET @5 (5 per pack) 3
5 COVER 1
6 O RING 1
7 SEAL 1
8 BOLT 2
9 WASHER @5 SERIAL 00008216-09999999 (5 per pack) 2
10 SHIFT SHAFT 1
11 E RING 1
12 CAM 1
13 DRIVE SHAFT 1
13 DRIVE SHAFT 1
14 KEY @2 SERIAL 00000000-00001330 (2 per pack) 1
15 BEARING 1
16 SHIM @2 (2 per pack) 0
16 SHIM @2 (2 per pack) 0
16 SHIM @5 (5 per pack) 0
16 SHIM @5 (5 per pack) 0
16 SHIM @5 (5 per pack) 0
17 SLEEVE 1
18 BEARING 1
19 WASHER 1
20 NUT 1
21 NLA-ORD COMPONENT 1
22 PINION GEAR 1
23 FORWARD GEAR 1
24 REVERSE GEAR 1
25 SHIM @2 (2 per pack) 0
25 SHIM @2 (2 per pack) 0
25 SHIM @5 (5 per pack) 0
25 SHIM @5 (5 per pack) 0
25 SHIM @5 (5 per pack) 0
26 BEARING 1
27 CLUTCH 1
28 PIN 1
29 RING 1
30 PLUNGER 1
31 SLIDE 1
32 SPRING 1
33 PROP SHAFT 1
34 WASHER 1
35 SHIM @2 (2 per pack) 0
35 SHIM @2 (2 per pack) 0
35 SHIM @5 (5 per pack) 0
35 SHIM @5 (5 per pack) 0
35 SHIM @5 (5 per pack) 0
36 WASHER 1
37 BALL BEARING 1
38 O RING @5 (5 per pack) 1
39 BEARING CARRIER 1
40 KEY 1
41 BEARING 1
42 SEAL-OIL @2 (2 per pack) 2
43 WASHER-TAB 1
44 NUT 1
45 WATER PUMP BODY 1
46 INSERT 1
47 IMPELLER SERIAL 00000000-00001395 1
48 GASKET @2 (2 per pack) 1
49 PLATE 1
50 GASKET @5 (5 per pack) 1
51 WATER PUMP BASE 1
52 GASKET @5 (5 per pack) 1
53 O RING @2 (2 per pack) 1
54 SEAL 2
55 PIN-DOWEL @2 (2 per pack) 2
56 BOLT 2
57 BOLT 2
58 WASHER @5 (5 per pack) 4
59 SEAL 1
60 SEAL 1
61 COVER 1
62 COVER 1
63 SCREW @2 (2 per pack) 1
64 NUT 1
65 PIN-DOWEL @2 (2 per pack) 2
66 SCREW SERIAL 00008216-09999999 4
67 LOCKWASHER @5 (5 per pack) 4
68 BOLT 1
69 LOCKWASHER @5 (5 per pack) 1
70 TRIM TAB 1
71 BOLT 1
72 GUIDE 1
73 CAM 1
74 THRUST WASHER 1
75 PROP NUT 1
76 PIN-COTTER @5 (5 per pack) 1
77 WASHER 1
78 TUBING 1
78 TUBING 1
79 O RING @2 (2 per pack) 1
80 RETAINER 1
81 BOLT 2
82 LOCKWASHER @5 SERIAL 00000000-00008215 (5 per pack) 2
83 SEAL 1
84 PLUG OPTIONAL PARTS 1
