Mariner 80 JET 0G760300 THRU 0T979999 80 JET 0G760300 THRU 0T979999 Gear Housing Drive 2.07:1 USA-0T627235 / BEL-0P215669 and Up

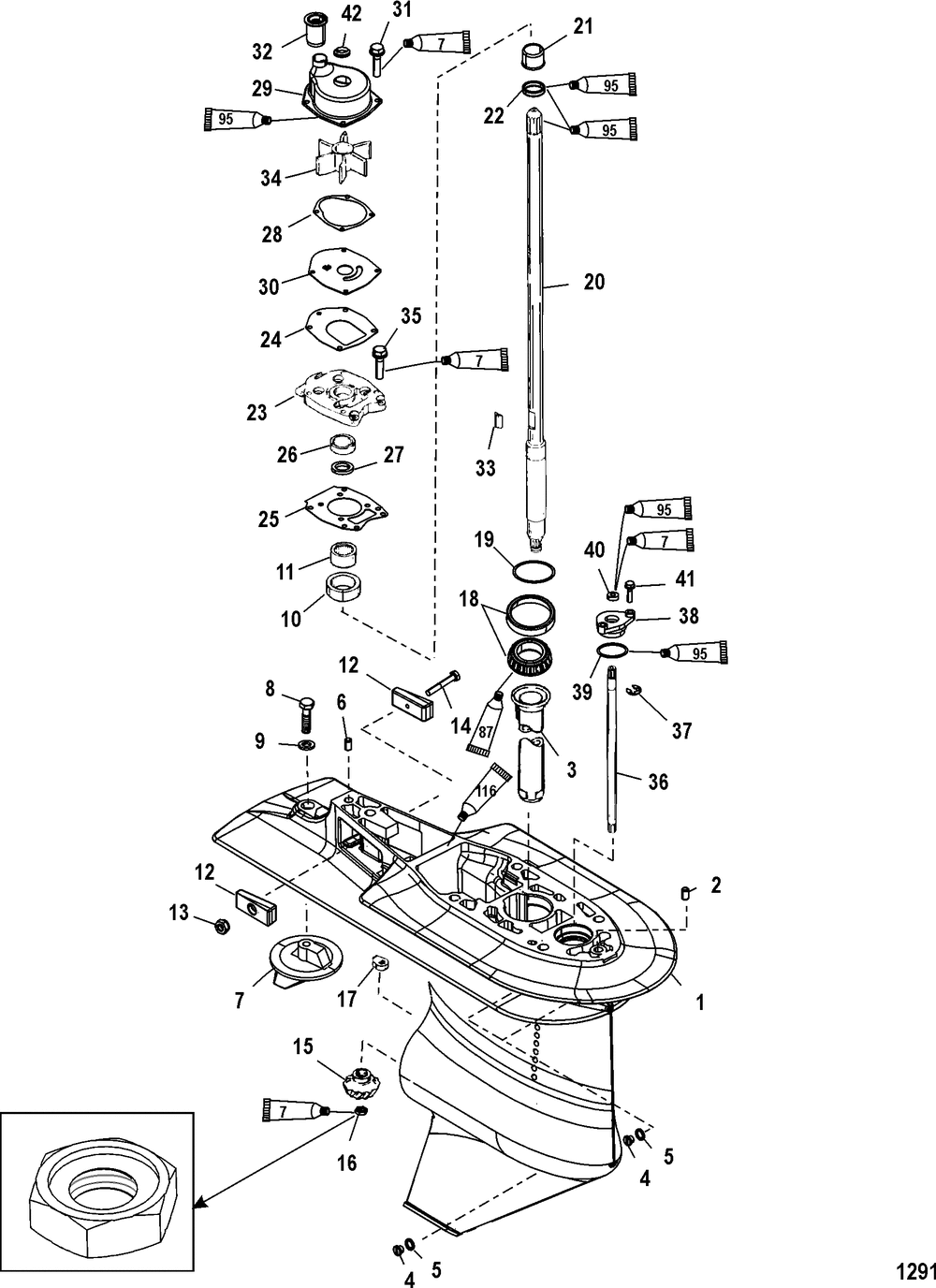

Gear Housing Drive 2.07:1 USA-0T627235 / BEL-0P215669 and Up
№ Наименование Примечание Кол-во
- GASKET SET 1
- SEAL KIT 1
- GC 115-125 LG BLK (LONG) (BLACK) 6 JAW REVERSE CLUTCH 1
- GC 115-125 XL BLK (X-LONG) (BLACK) 6 JAW REVERSE CLUTCH 1
- GC 75-125 LG 2.33 (BLACK) (HIGH ALTITUDE - 2.3:1 RATIO) 6 JAW REVERSE CLUTCH 1
- REPAIR KIT - IMP 1
- ORD 8M0113799 1
1 GEAR HSG-BASIC-BL (BLACK) 1
2 PIN - DOWEL X-LONG 1
3 TUBE-OILER 1
4 SCREW KIT @2 (2 per pack) 0
4 SCREW-DRAIN @2 (2 per pack) 3
5 SEAL-BLUE @15 (15 per pack) 3
6 PIN-DOWEL-SOLID 1
7 TRIM TAB 1
8 SCREW 1
9 WASHER 1
10 CARRIER ASSY 1
12 ANODE @3 DESIGN II (3 per pack) 2
13 NUT @5 (5 per pack) 1
14 SCREW @5 (5 per pack) 1
16 NUT @5 (5 per pack) 1
17 CAM-SHIFT CONTROL 1
18 BEARING ASSY (Use W/Pinion stamped 43-881259) 1
19 ORD 15-8M0063265 1
20 D SHAFT ASSY-L (LONG) 1
20 D SHAFT ASSY-XL (X-LONG) 1
21 SLEEVE/RING KIT 1
23 ORD 8M0113262 1
24 GASKET 1
25 GASKET 1
26 SEAL 1
27 SEAL 1
28 GASKET 1
29 HOUSING-W/P UPPER 1
30 FACEPLATE-W/P 1
31 SCREW @5 (5 per pack) 4
32 SEAL 1
33 KEY 1
34 IMPELLER-W/P 1
35 SCREW 6
36 SHAFT KIT-LONG (LONG-12 IN.) 1
36 SHAFT KIT-XL (X-LONG-17 IN.) 1
37 E RING @2 (2 per pack) 1
38 BUSHING KIT 1
39 O RING @5 (5 per pack) 1
40 SEAL 1
42 ORD 26-816575A 2 1
