| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

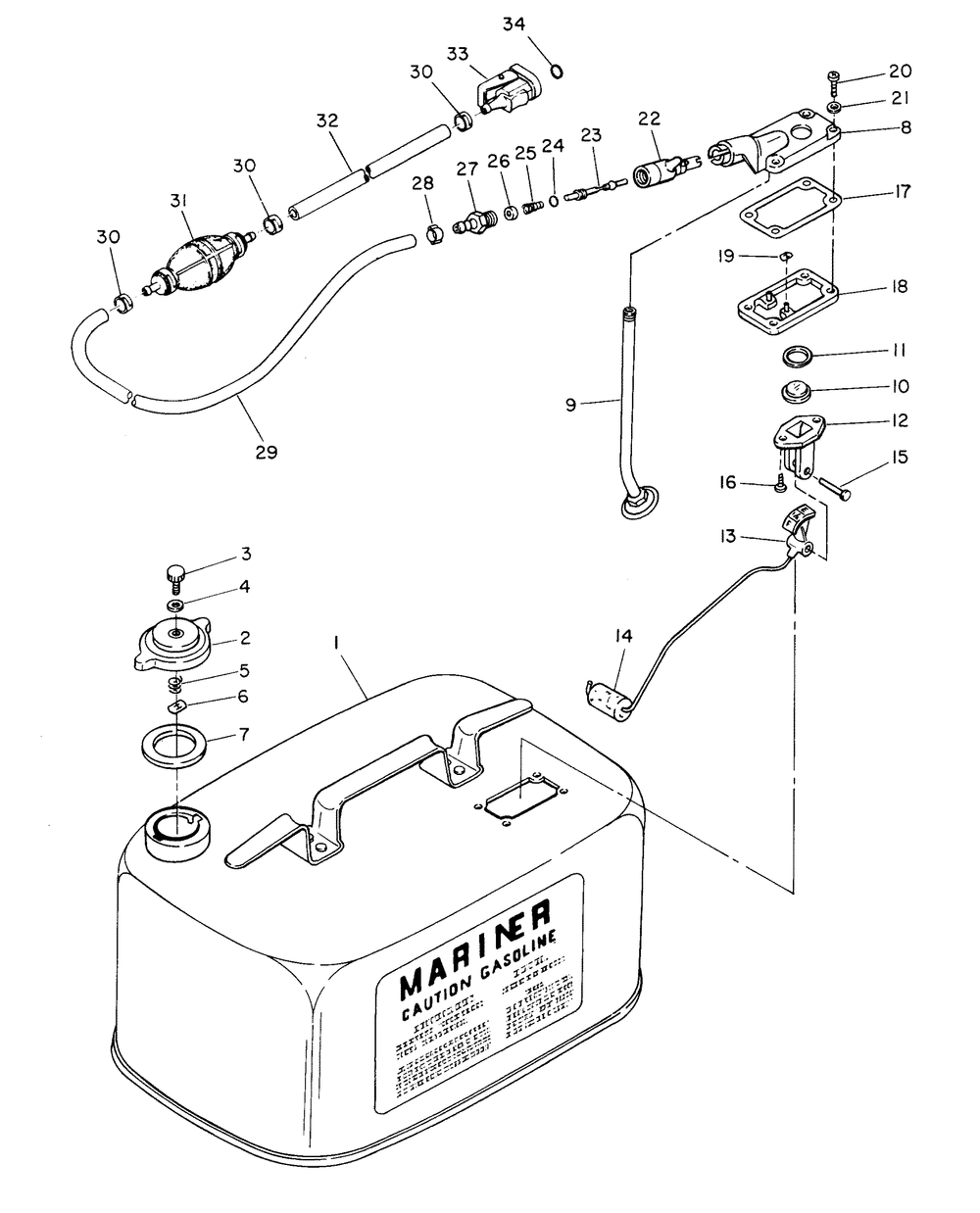

| 0-1 | TANK-FUEL-6.6 GAL | 1 | |
| 1 | TANK-FUEL-6.6 GAL | 1 | |
| 2 | CAP | 1 | |
| 3 | SCREW | 1 | |
| 4 | WASHER @5 (5 per pack) | 1 | |
| 5 | SPRING | 1 | |
| 6 | NUT @5 (5 per pack) | 1 | |
| 7 | GASKET | 1 | |
| 8 | PICK UP ASSY | 1 | |
| 9 | TUBING | 1 | |
| 10 | WINDOW ASSY | 1 | |
| 11 | ORD 98542A 1 | 1 | |
| 12 | RETAINER | 1 | |
| 13 | FLOAT ASSY | 1 | |
| 14 | FLOAT-FUEL TANK | 1 | |
| 15 | RIVET @3 (3 per pack) | 1 | |
| 16 | SCREW @4 (4 per pack) | 2 | |
| 17 | GASKET @5 (5 per pack) | 1 | |
| 18 | FRAME | 1 | |
| 19 | NUT @5 (5 per pack) | 2 | |
| 20 | SCREW @5 (5 per pack) | 4 | |
| 21 | WASHER @5 (5 per pack) | 4 | |
| 22 | FUEL CONNECT@3 (3 per pack) | 1 | |
| 23 | ORD 30185Q 3 | 1 | |
| 24 | O RING @2 (2 per pack) | 1 | |
| 25 | SPRING @5 (5 per pack) | 1 | |
| 26 | WASHER-CUP @3 (3 per pack) | 1 | |
| 27 | FITTING @2 (2 per pack) | 1 | |
| 28 | CLAMP @5 (5 per pack) | 1 | |
| 29 | HOSE | 1 | |
| 30 | CLAMP @5 (5 per pack) | 3 | |
| 31 | PRIMER BULB @4 (4 per pack) | 1 | |
| 32 | HOSE | 1 | |
| 33 | FITTING-FUEL@2 (2 per pack) | 1 | |
| 34 | O RING @5 (5 per pack) | 1 |
