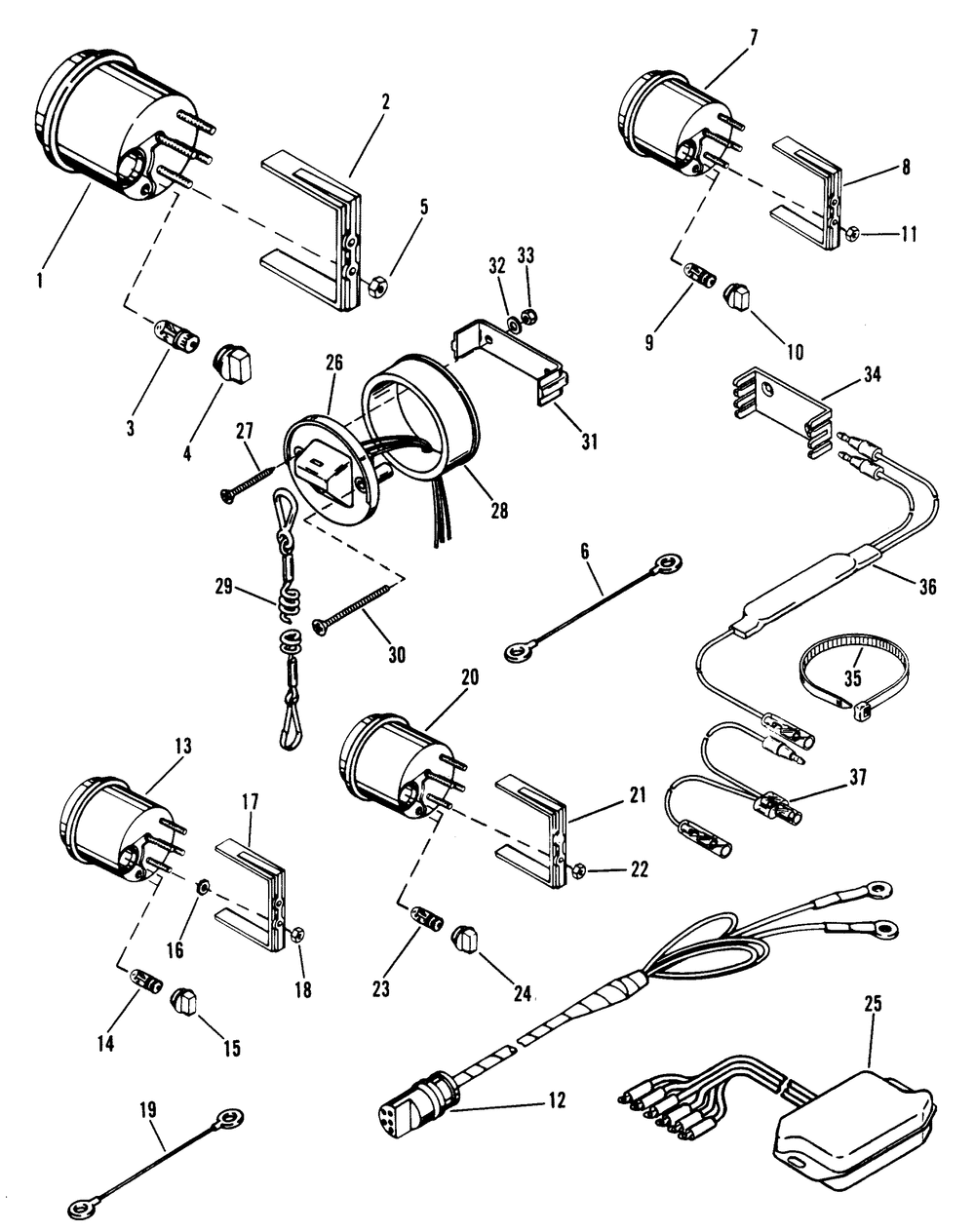

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | TACH 0-6000 | 1 | |
| 2 | BRACKET-MOUNTING | 1 | |
| 3 | BULB | 1 | |
| 4 | SOCKET | 1 | |
| 5 | NUT @5 (5 per pack) | 5 | |
| 6 | WIRE ASSY | 1 | |
| 6 | WIRE ASSY | 1 | |
| 7 | GAUGE PWR TRIM | 1 | |
| 8 | BRACKET-MOUNTING | 1 | |
| 12 | HARNESS KIT | 1 | |
| 13 | GAUGE WTR TEMP | 1 | |
| 16 | WASHER | 2 | |
| 19 | CABLE ASSY | 1 | |
| 19 | CABLE ASSY | 1 | |
| 19 | CABLE ASSY | 1 | |
| 20 | GAUGE ENG SYCH (COUNTER ROTATION ENGINES) | 1 | |
| 25 | ORD 8M0053532 (COUNTER ROTATION ENGINES) | 1 | |
| 26 | SWITCH ASSEMBLY | 1 | |
| 27 | SCREW | 2 | |
| 28 | ADAPTOR | 1 | |
| 29 | ORDER 8M0092850 | 1 | |
| 30 | SCREW @5 (5 per pack) | 2 | |
| 31 | CLAMP | 1 | |
| 32 | WASHER | 2 | |
| 33 | NUT @5 (5 per pack) | 4 | |
| 34 | RETAINER | 3 | |
| 35 | TIE STRAP @100 (100 per pack) | 9 | |
| 36 | ORD 84-898289A72 (Not Included with Kit Reference tahos_28) | 1 | |
| 37 | CABLE ASSY | 1 |
