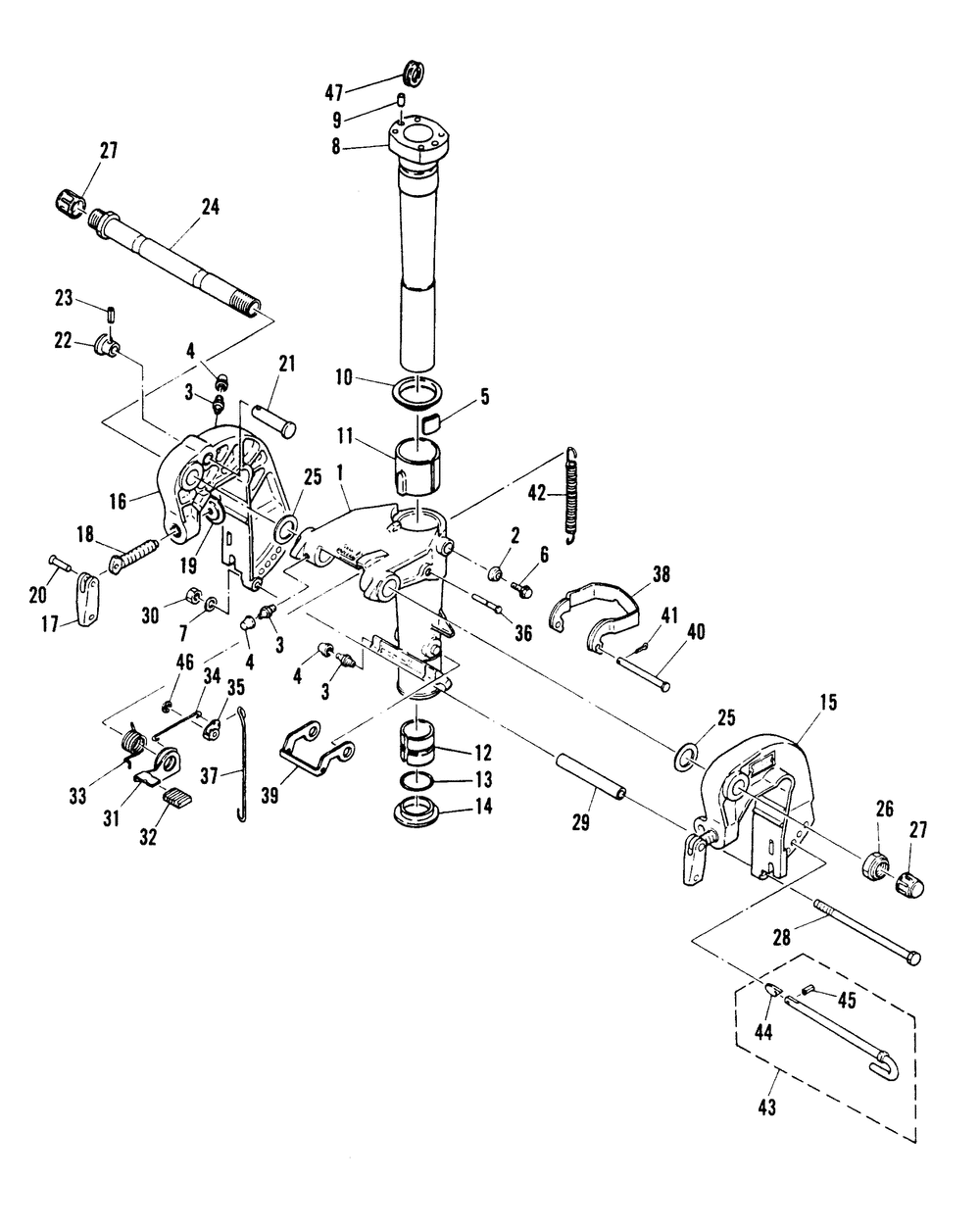

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SWIVEL BRACKET SERIAL 00000000-00008215 | 1 | |
| 2 | SEAL | 1 | |
| 3 | FITTING @2 (2 per pack) | 4 | |
| 4 | LUBRICAP @5 (5 per pack) | 4 | |
| 5 | PLATE | 1 | |
| 6 | BOLT | 1 | |
| 7 | WASHER @5 (5 per pack) | 2 | |
| 8 | SHAFT | 1 | |
| 9 | PIN-DOWEL | 2 | |
| 10 | WASHER | 1 | |
| 11 | BUSHING | 1 | |
| 12 | COLLAR | 1 | |
| 13 | O RING @2 (2 per pack) | 1 | |
| 14 | BUSHING | 1 | |
| 15 | CLAMP BRACKET | 1 | |
| 16 | CLAMP BRKT | 1 | |
| 17 | HANDLE | 2 | |
| 18 | SCREW | 2 | |
| 19 | WASHER | 2 | |
| 20 | PIN @2 (2 per pack) | 2 | |
| 21 | SHAFT | 1 | |
| 22 | KNOB | 1 | |
| 23 | PIN-ROLL | 1 | |
| 24 | SCREW | 1 | |
| 25 | WASHER @2 (2 per pack) | 2 | |
| 26 | NUT | 1 | |
| 27 | CAP | 2 | |
| 28 | BOLT | 1 | |
| 29 | SPACER | 1 | |
| 30 | NUT @5 (5 per pack) | 1 | |
| 31 | LEVER | 1 | |
| 32 | COVER | 1 | |
| 33 | SPRING | 1 | |
| 35 | CAM | 1 | |
| 36 | PIN | 1 | |
| 37 | ROD | 1 | |
| 38 | HOOK | 1 | |
| 39 | HOOK | 1 | |
| 40 | PIN | 1 | |
| 41 | PIN-COTTER @2 SERIAL 00000000-00008215 (2 per pack) | 1 | |
| 42 | SPRING | 1 | |
| 43 | PIN-TILT | 1 | |
| 44 | STOPPER | 1 | |
| 45 | PIN-ROLL | 1 | |
| 46 | E RING @2 (2 per pack) | 1 | |
| 47 | GROMMET | 1 |
