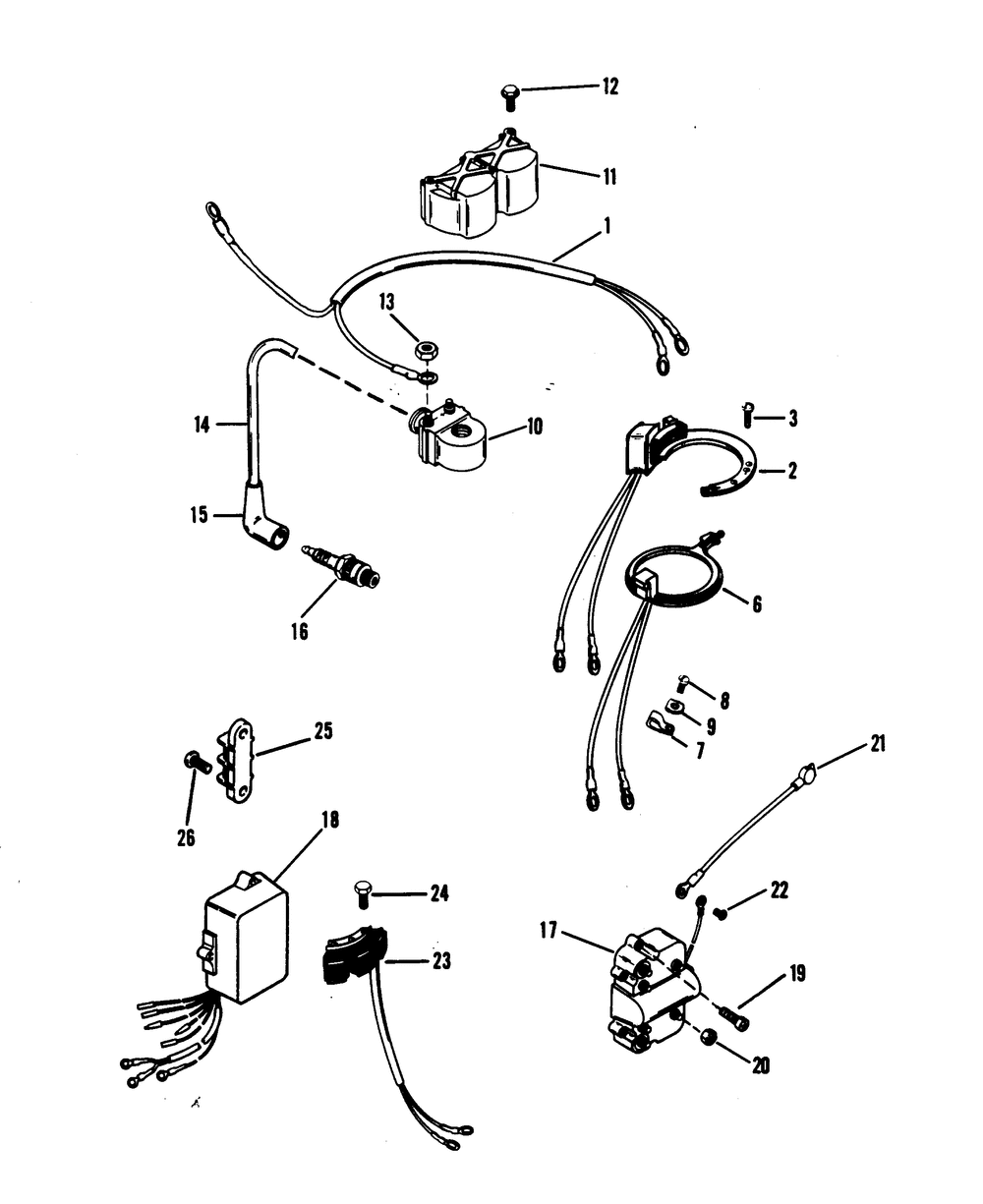

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HARNESS ASSY (W/NUT CONNECTIONS) | 1 | |
| 2 | STATOR ASSY | 1 | |
| 3 | SCREW @2 (2 per pack) | 2 | |
| 3 | SCREW | 2 | |
| 6 | TRIGGER ASSY | 1 | |
| 7 | CLIP @5 (5 per pack) | 1 | |
| 8 | SCREW | 1 | |
| 9 | WASHER | 1 | |
| 10 | COIL KIT | 2 | |
| 11 | COVER | 1 | |
| 12 | SCREW | 3 | |
| 13 | NUT @10 (10 per pack) | 4 | |
| 14 | CABLE ASSY-IGN | 2 | |
| 15 | BOOT KIT-BLK@10 (10 per pack) | 2 | |
| 16 | NGK BUHW @10 (10 per pack) | 2 | |
| 16 | NGK BUZHW-2 @10 (10 per pack) | 2 | |
| 17 | ORD 899883230 | 1 | |
| 18 | SWITCHBOX ASSY | 1 | |
| 19 | SCREW | 3 | |
| 21 | CABLE ASSY | 2 | |
| 22 | SCREW | 1 | |
| 23 | STATOR ASSY | 1 | |
| 24 | SCREW | 3 | |
| 25 | BLOCK-TERMINAL | 1 | |
| 26 | SCREW @2 (2 per pack) | 2 |
