Mercury 200 VERADO (4-STROKE)(4 CYL.) 1B517159 & Up 200 VERADO (4-STROKE)(4 CYL.) 1B517159 & Up Cylinder Head and Camshaft

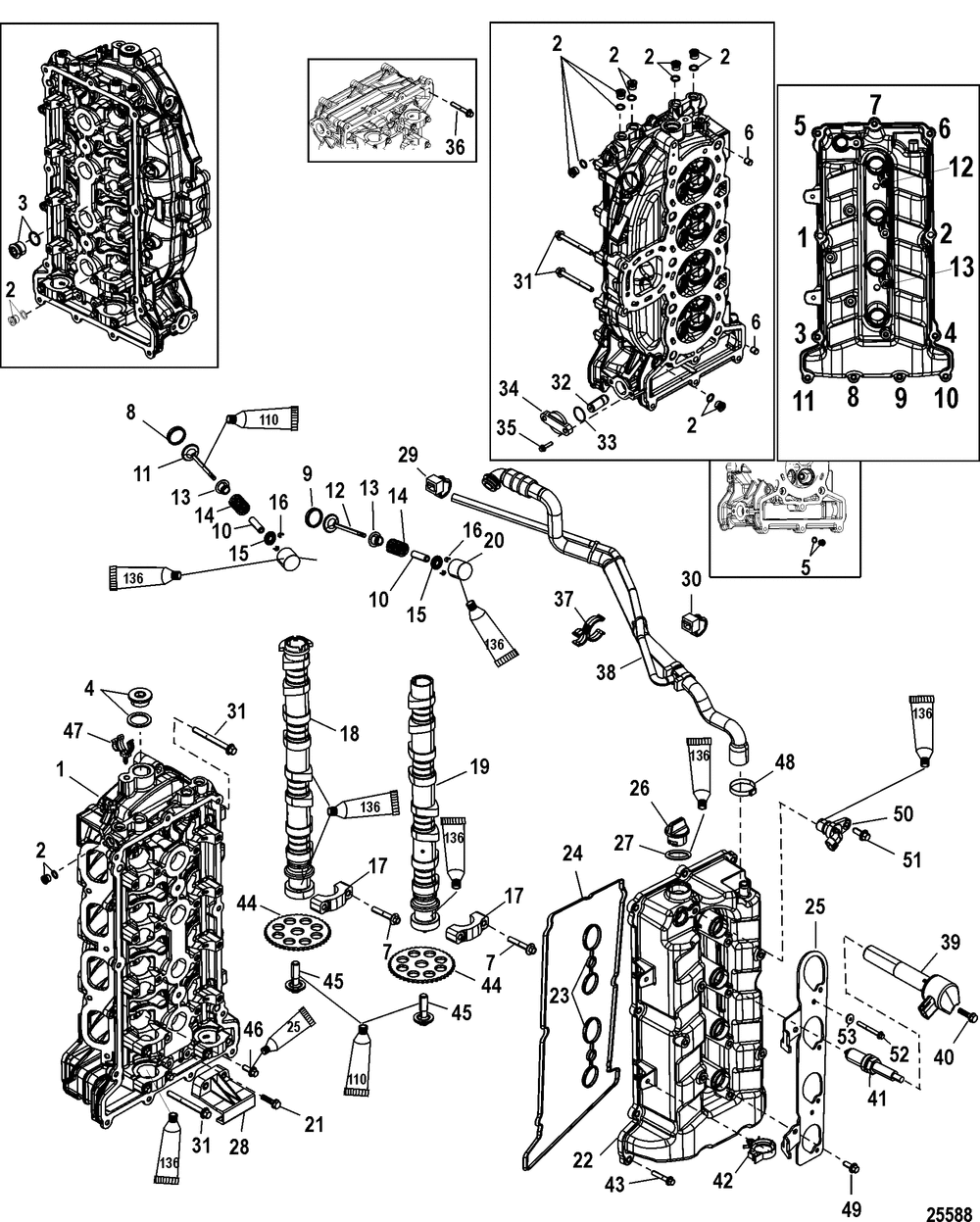

Cylinder Head and Camshaft
№ Наименование Примечание Кол-во
- HEAD ASY-COMPLETE 1
- GASKET SET 1
- PH L4 4S 1
1 CYLINDER HEAD ASY 1
2 PLUG @2 (2 per pack) 8
3 PLUG 1
4 PLUG 1
5 PLUG 10 MM 1
6 PIN 2
7 SCREW @2 (2 per pack) 20
8 SEAT-INTAKE 8
9 SEAT-EXHAUST 8
10 GUIDE-VALVE 16
11 VALVE-INTAKE 8
12 VALVE-EXHAUST 8
13 SEAL 16
14 ORD 8M0103092 16
15 RETAINER ASSY 16
16 KEY @24 (24 per pack) 32
18 CAMSHAFT ASSY 1
19 CAMSHAFT ASSY 1
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
20 TAPPET 16
21 SCREW @2 SNtahos_ 1B733388 & Below (2 per pack) 2
22 COVER ASSEMBLY SNtahos_ 1B733388 & Below 1
23 SEAL 2
24 SEAL 1
25 COIL PLATE 1
26 PLUG ASSY-OIL 1
27 O RING 1
28 GUIDE-SHORT SNtahos_ 1B733388 & Below 1
29 CABLE TIE (100 per pack) 1
31 SCREW @2 (2 per pack) 4
32 TENSIONER ASSY 1
33 O-RING 1
34 END CAP CAM TENS 1
35 SCREW @2 (2 per pack) 2
36 SCREW @2 (2 per pack) 3
37 CLIP 1
38 HOSE-BREATHER 1
39 COIL-PENCIL 4
41 PLUG ILFR6GE@4 (4 per pack) 4
42 CLIP 2
44 SPROCKET 2
45 SCREW 2
46 SCREW @2 (2 per pack) 2
47 CLIP 1
48 CLAMP 1
50 SENSOR 1
51 SCREW @2 (2 per pack) 1
52 SCREW @2 (2 per pack) 2
53 WASHER @2 (2 per pack) 2
