Mercury 225 (3.0L CARB) 0D280813 THRU 0G760299 225 (3.0L CARB) 0D280813 THRU 0G760299 ELECTRICAL(ALL MODELS-S / N:0G303046 & UP)

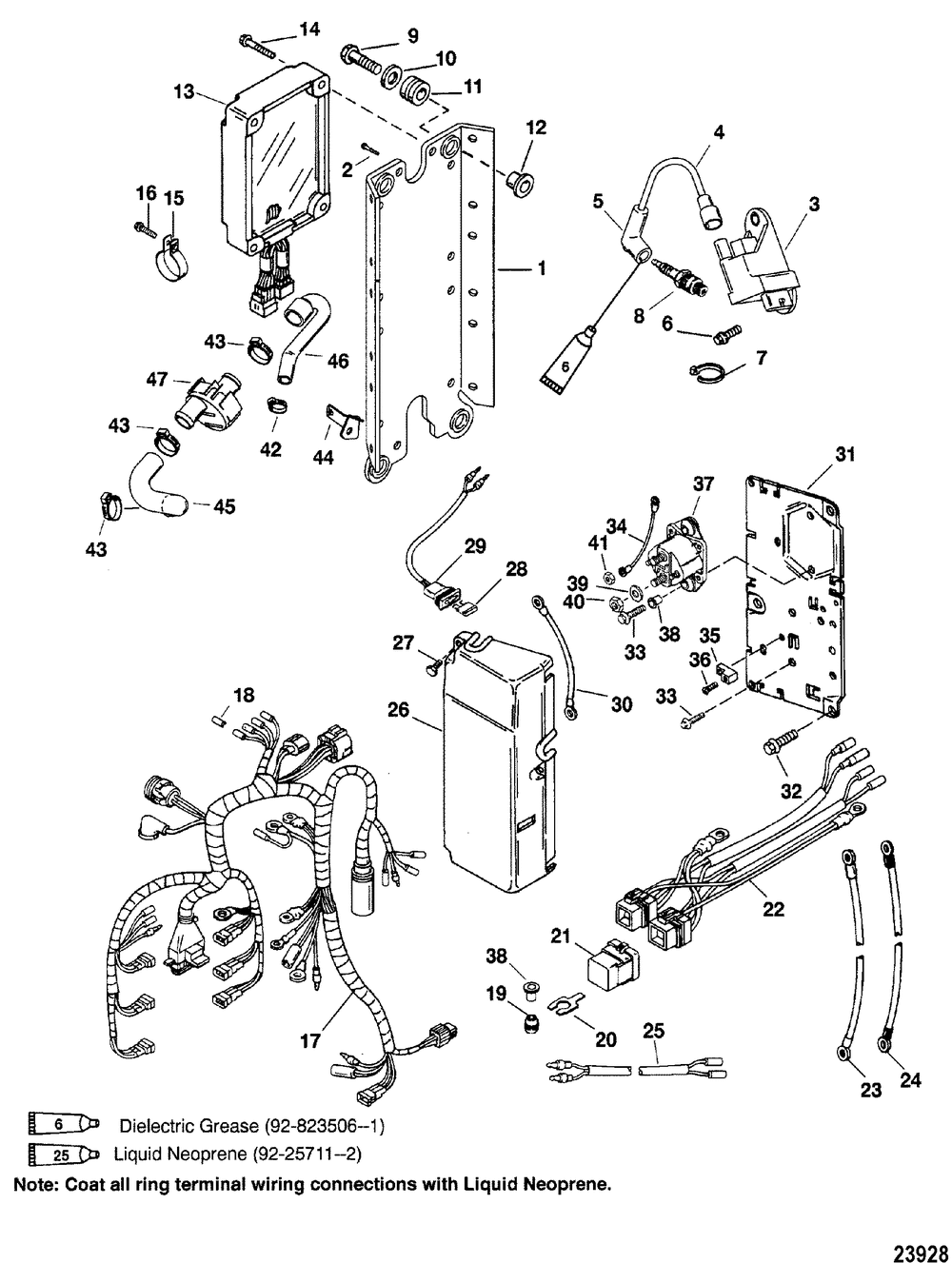

ELECTRICAL(ALL MODELS-S / N:0G303046 & UP)
№ Наименование Примечание Кол-во
1 PLATE 1
2 SCREW 2
3 CDM MODULE ASSY 6
4 CABLE ASSY-BLACK 6
4 CABLE KIT 1
5 BOOT KIT-BLK@10 (10 per pack) 6
6 SCREW @5 (5 per pack) 12
7 TIE STRAP @100 (100 per pack) 0
8 SP tahos_QL77CC @6 (6 per pack) 6
8 NGKBPZ8HN-10@10 (10 per pack) 6
9 SCREW 4
10 WASHER 4
11 GROMMET @5 (5 per pack) 4
12 BUSHING 4
13 ECU SNtahos_ 0G303046 THRU 0G437999 1
13 ECU (SEAPRO/MARATHON) SNtahos_ 0G303046 THRU 0G437999 1
13 ECU SNtahos_ 0G438000 & Up 1
13 ECU (SEAPRO/MARATHON) SNtahos_ 0G438000 & Up 1
14 SCREW @5 (5 per pack) 4
15 CLAMP 1
16 SCREW SEAPRO/MARATHON 1
17 HARNESS-IGNITION 1
18 PLUG 0
19 GROMMET 2
20 BRACKET 2
21 RELAY ASSY-TRIM 2
22 HARNESS-TRIM 1
23 CABLE 1
24 CABLE-BATTERY 1
25 HARNESS ASSY 1
26 COVER 1
27 SCREW 3
28 FUSE-YELLOW-20AMP 1
29 SOCKET 1
30 CABLE ASSY 1
31 PLATE-SOLENOID 1
32 SCREW @5 (5 per pack) 3
33 SCREW SNtahos_ USA-0G438000/BEL-9927000 & Up 4
34 CABLE ASSY 1
35 BLOCK-TERMINAL 1
36 SCREW 1
36 SCREW 1
37 SOLENOID KIT 1
38 BUSHING 0
39 LOCKWASHER @5 (5 per pack) 2
40 NUT @5 (5 per pack) 2
41 NUT @10 (10 per pack) 2
42 CLAMP 1
43 CLAMP 3
44 BRACKET 1
45 HOSE-INLET 1
46 HOSE-OUTLET 1
47 PULSE FLUSH 1
