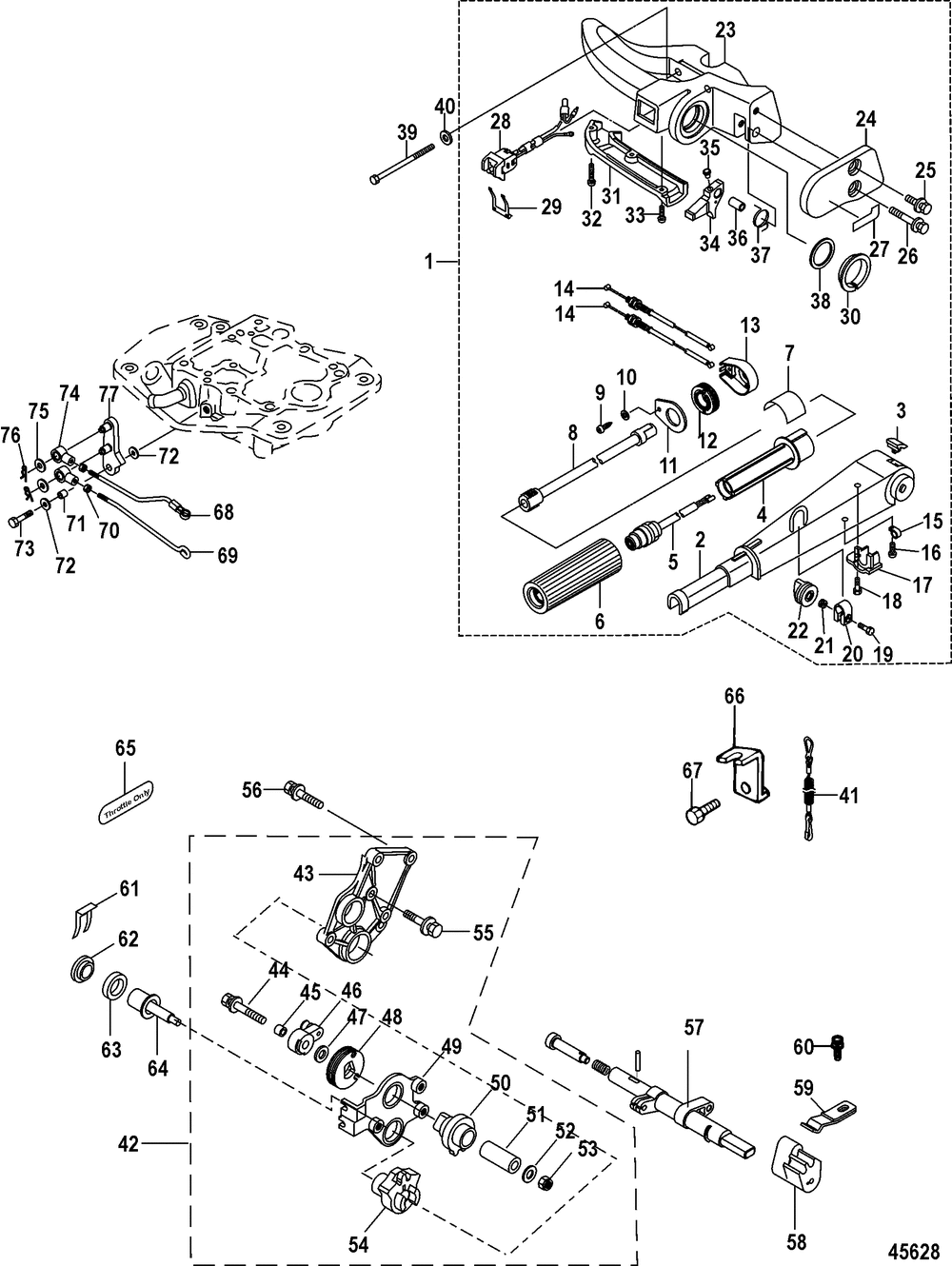

Tiller Handle Conversion Kit Manual

Tiller Handle Conversion Kit Manual - 8M0051061

№	Наименование	Кол-во
-	CONV. KIT-TILLER	1
2	HANDLE-TILLER	1
3	PLUG	1
4	HANDLE-GRIP	1
5	SWITCH ASSY	1
6	GRIP-HANDLE	1
7	DECAL-THROTTLE	1
8	SHAFT-THROTTLE	1
9	SCREW	1
10	WASHER	1
11	COVER	1
12	PULLEY	1
13	HOUSING	1
14	CABLE-THROTTLE	2
15	CLIP	1
16	SCREW	1
17	BRACKET	1
19	SCREW @5 (5 per pack)	1
20	CLAMP	1
21	SPRING	1
22	KNOB	1
23	HANDLE-CARRY	1
24	COVER	1
25	BOLT	1
26	SCREW	1
27	DECAL	1
28	SWITCH-STOP	1
29	RETAINER	1
30	BUSHING	2
31	COVER	1
33	SCREW	2
34	LEVER-LOCK	1
36	COLLAR	1
37	SPRING	1
38	WASHER	2
39	BOLT	2
40	WASHER	2
41	ORDER 8M0092850	1
43	GEAR PLATE Handle	1
44	BOLT	1
45	COLLAR Handle SNtahos_ 0R148896 & Up	1
46	THROTTLE OPENER Handle	1
47	WASHER	1
48	THROTTLE DRUM Handle	1
49	GEAR PLATE Starboard - Handle	1
50	DRIVE GEAR Handle	1
51	COLLAR Handle	1
52	WASHER @2 (2 per pack)	1
53	NUT Handle	1
54	DRIVEN GEAR Handle	1
55	BOLT	3
57	SHIFT SHAFT LEVER	1
58	LEVER	1
59	STOPPER	1
60	BOLT	1
61	RETAINER	1
62	PLUG	1
63	GROMMET	1
64	KNOB	1
65	DECAL-THROTLLE	1
66	BRACKET	1
67	BOLT	1
68	THROTTLE ROD	1
69	SHIFT ROD	1
70	NUT	2
71	COLLAR	1
73	BOLT	1
74	CABLE JOINT	2
75	WASHER	2
76	COTTER PIN	2
77	THROTTLE ARM	1
