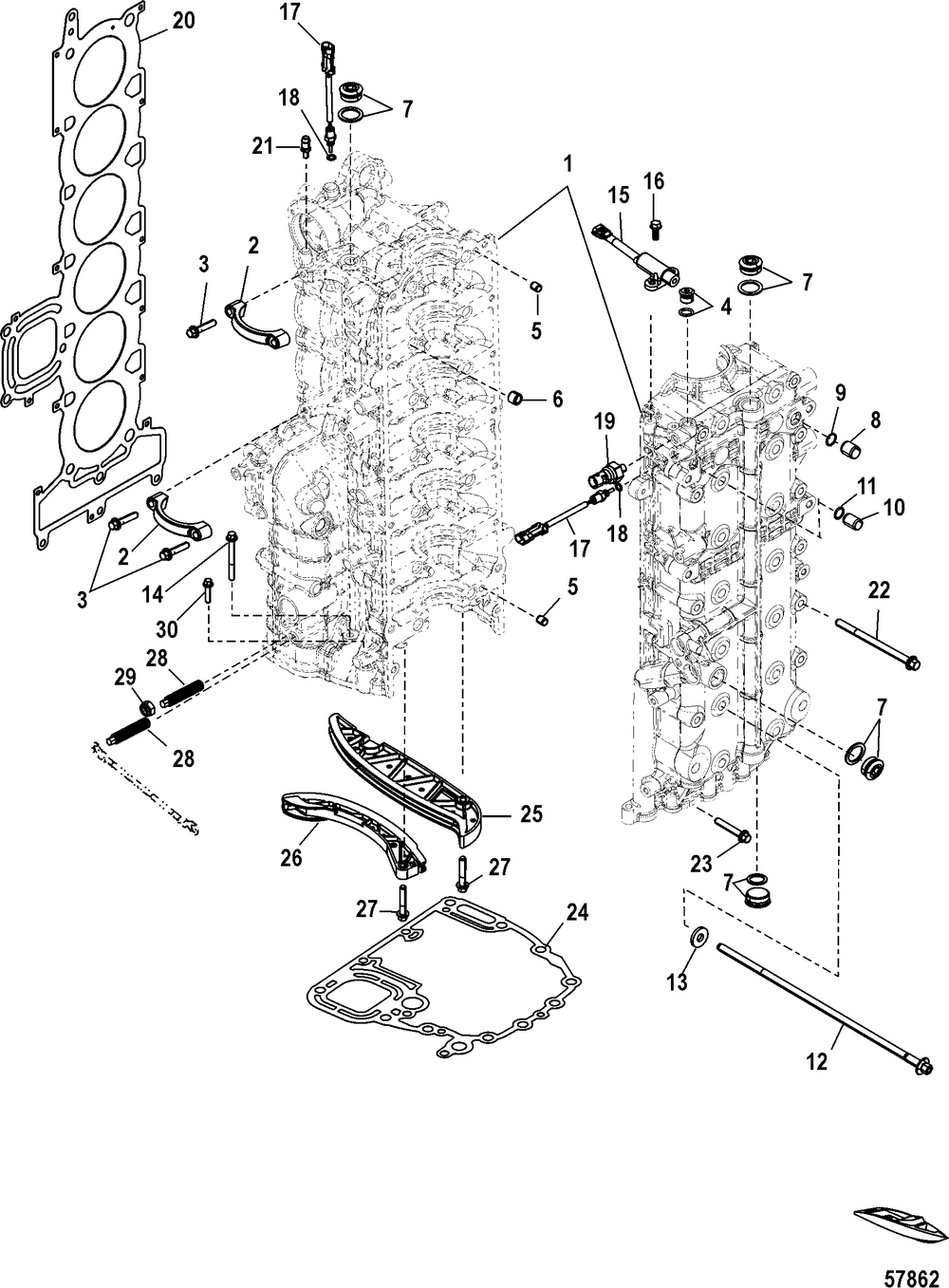

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | GASKET SET | 1 | |
| - | LONG BLOCK ASSY | 1 | |
| 1 | CYLINDER BLOCK | 1 | |
| 2 | COVER | 2 | |
| 3 | SCREW @2 (2 per pack) | 4 | |
| 4 | PLUG @2 (2 per pack) | 1 | |
| 5 | PIN-DOWEL-SOLID | 2 | |
| 6 | BUSHING | 14 | |
| 7 | PLUG | 4 | |
| 8 | PIN | 1 | |
| 9 | O RING | 1 | |
| 10 | PIN-DOWEL | 1 | |
| 11 | O RING | 1 | |
| 12 | SCREW | 14 | |
| 13 | WASHER @2 (2 per pack) | 14 | |
| 14 | SCREW @2 (2 per pack) | 1 | |
| 15 | SENSOR ASSY | 1 | |
| 16 | SCREW | 2 | |
| 17 | SENSOR | 2 | |
| 18 | O-RING | 2 | |
| 19 | SENSOR | 1 | |
| 20 | GASKET | 1 | |
| 21 | PIN | 1 | |
| 22 | SCREW @2 (2 per pack) | 12 | |
| 23 | SCREW | 2 | |
| 24 | GASKET | 1 | |
| 25 | GUIDE-FIXED | 1 | |
| 26 | GUIDE-MOVEABLE | 1 | |
| 27 | SCREW @2 (2 per pack) | 2 | |
| 28 | STUD | 2 | |
| 29 | NUT @5 (5 per pack) | 1 | |
| 30 | SCREW @2 (2 per pack) | 1 |
