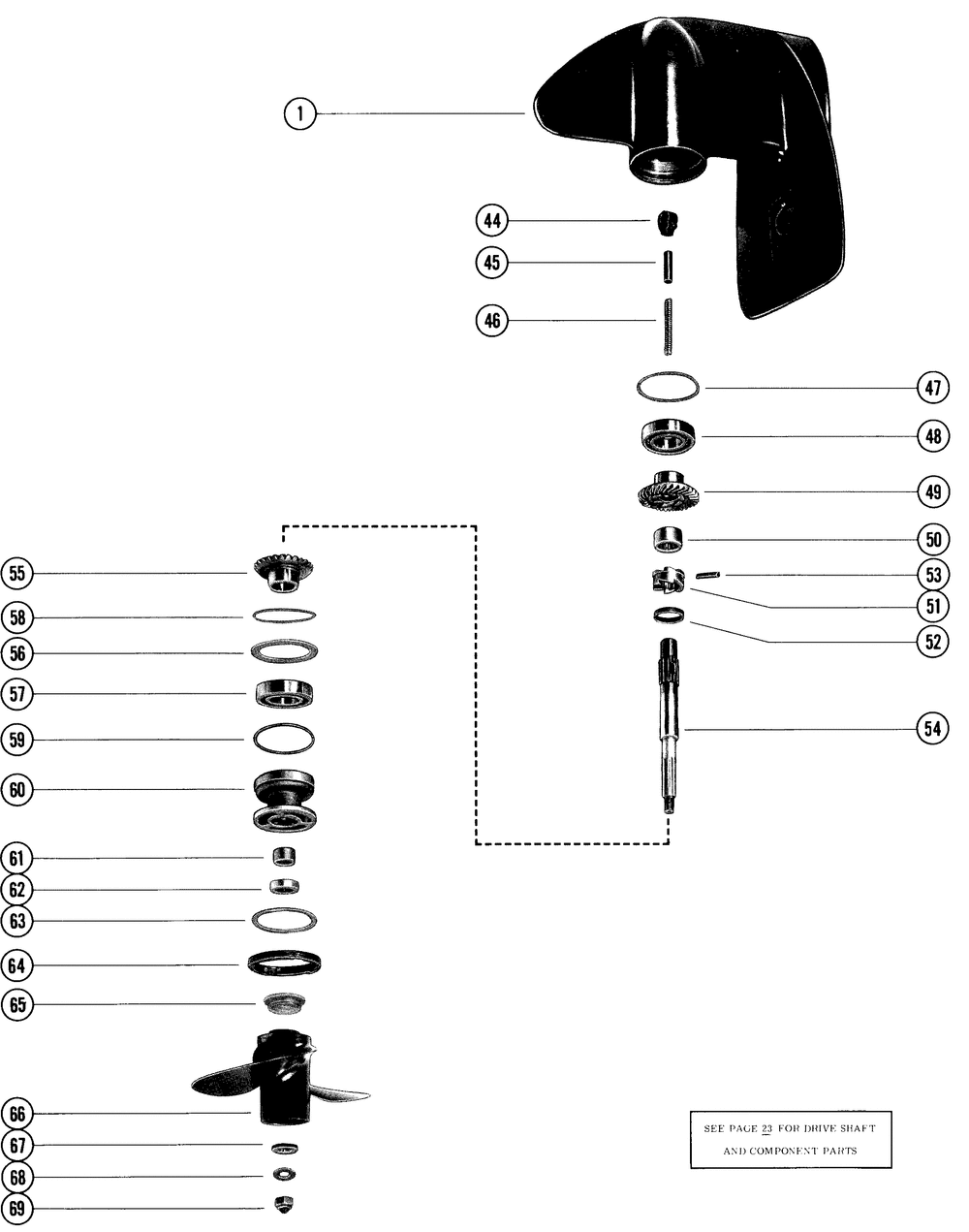

GEAR HOUSING ASSEMBLY COMPLETE (PAGE 2)

Корзина пуста
Mercury 45, 4.5 (1 CYL.) 7045758 THRU 7147237 45, 4.5 (1 CYL.) 7045758 THRU 7147237 GEAR HOUSING ASSEMBLY COMPLETE (PAGE 2)
GEAR HOUSING ASSEMBLY COMPLETE (PAGE 2)
№ Наименование Примечание Кол-во
- GEAR HOUSING ASSY UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP 1
- GEAR HOUSING ASSY UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP 1
- GEAR HOUSING ASSY UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 1
- GEAR HOUSING ASSY UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 1
- GEAR HOUSING ASSY A-1630-4407A4A5 AND A-1630-4921A3A2 GEARHOUSING ASSEMBLIES COMPLETE INCLUDE ALL PARTS GROM REFERENCE tahos_1 THRU tahos_66 AS LISTED ON PAGES 31 AND 34 SERIAL 00348275-09999999 1
- GASKET SET 0
- 7360A11BASICAVAIL SEE NOTE BELOW UNITED STATES 5397702 AND UP BELGIUM 9244406 AND UP CANADA 7137937 AND UP 1
- GEAR HOUSING ASSY SEE NOTE BELOW UNITED STATES 5397702 AND UP BELGIUM 9244406 AND UP CANADA 7137937 AND UP 1
-- THRUST HUB 1
1 GEAR HOUSING ASSY UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP 1
1 GEAR HOUSING ASSY SEE PAGE 31 FOR BREAKDOWN SERIAL 03482753-09999999 1
44 CAM SERIAL tahos_3002814-09999999 1
45 FOLLOWER-CAM 1
46 SPRING UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP 1
46 SPRING 1
47 SHIM SET 0
48 BALL BEARING 1
49 GEAR ASSY-FORWARD 1
50 BEARING 1
51 CLUTCH SERIAL 03482753-09999999 1
52 RETNING RING@2 (2 per pack) 1
53 PIN @3 (3 per pack) 1
54 PROPELLER SHAFT UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 1
55 REVERSE GEAR SERIAL 03482753-09999999 1
56 WASHER 1
56 THRUST SLEEVE UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP 1
58 SHIM SET 0
59 O RING @5 (5 per pack) 1
60 CARRIER ASSY UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 1
60 CARRIER ASSY UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP 1
62 SEAL @5 (5 per pack) 1
63 WASHER 1
64 COVER UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP 1
64 COVER 1
65 THRUST WASHER 1
66 BLMX 8 1/4R6 0
66 BLMX 8 1/4R6 (2 BLADE - ALUMINUM - 7"PITCH) 1
66 PROP ASSY @4 (2 BLADE - 8 1/4" DIA. ) - NYLON (4 per pack) 0
67 PROP NUT KIT 1
68 WASHER 0
69 PROP NUT KIT 1
