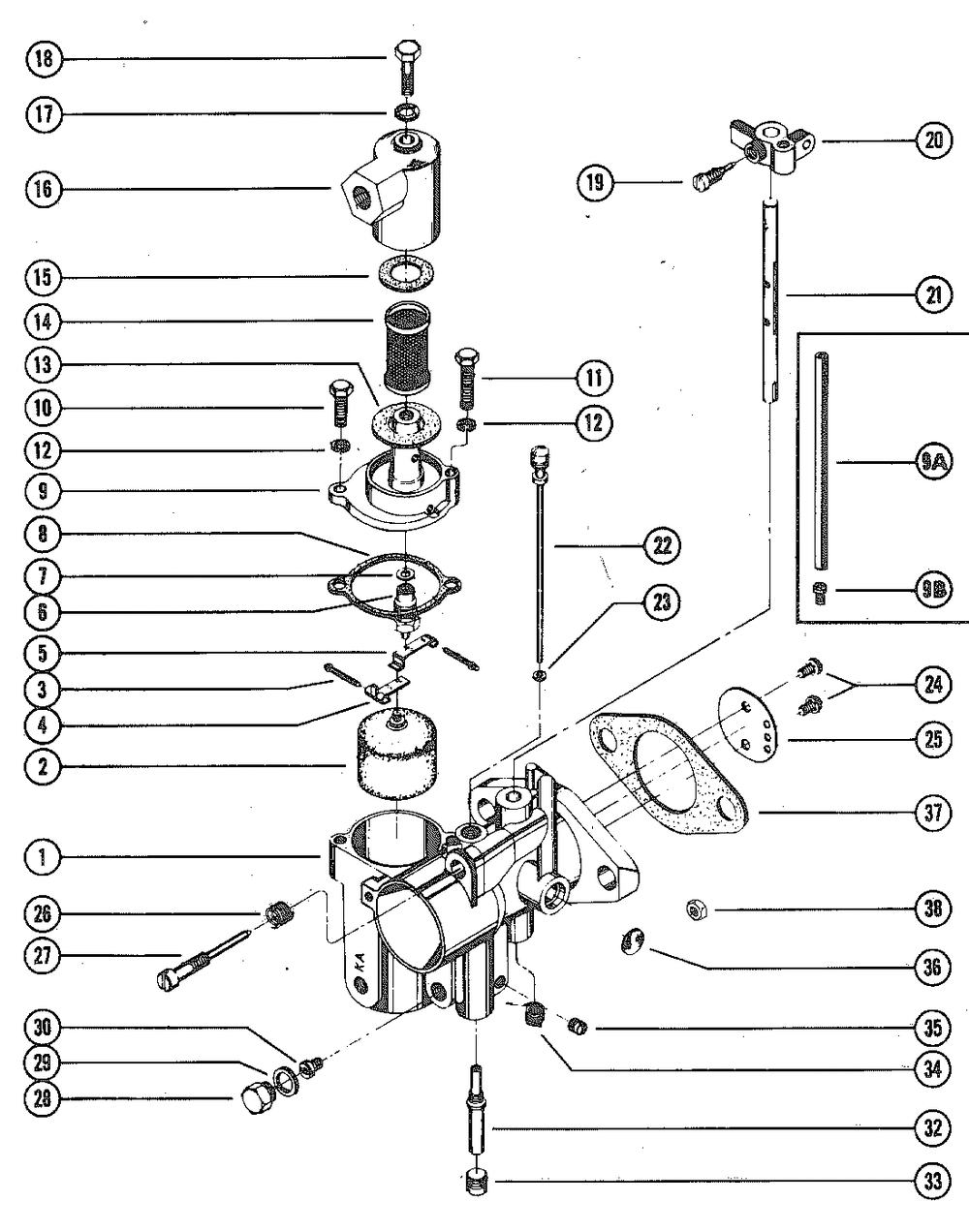

CARBURETOR ASSEMBLY COMPLETE

Корзина пуста
Mercury 500 4141000 THRU 4357639 500 4141000 THRU 4357639 CARBURETOR ASSEMBLY COMPLETE
CARBURETOR ASSEMBLY COMPLETE
№ Наименование Примечание Кол-во
-- REPAIR KIT-CARB UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP 2
-- GASKET SET 2
-- NLA UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP 2
1 CARBURETOR UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP 2
1 CARBURETOR UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP 2
2 FLOAT ASSY 2
6 VALVE SEAT KIT 2
9 COVER 2
9 COVER UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP 2
9B JET-.086 UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP 2
10 SCREW @3 (3 per pack) 2
11 SCREW @3 (3 per pack) 2
12 LOCKWASHER @5 (5 per pack) 4
13 GASKET @5 (5 per pack) 2
14 SCREEN @3 (3 per pack) 2
15 GASKET @5 (5 per pack) 2
16 COVER 2
19 SCREW 2
20 NLA 2
21 THROTTLE SHAFT 2
25 THROTTLE SHUTTER UNITED STATES 4102790 THRU 4351589 AUSTRALIA 8026165 THRU 8036049 BELGIUM 9070129 THRU 9104813 CANADA 7044783 THRU 7067847 2
25 THROTTLE SHUTTER 2
28 SCREW @2 (2 per pack) 2
30 JET 061 0
30 JET-.059 0
30 JET 065 0
33 SCREW 2
35 SCREW 2
37 GASKET @5 (5 per pack) 2
38 NUT @5 (5 per pack) 4
