Mercury 60 1408611 THRU 1916138 60 1408611 THRU 1916138 TOP COWL AND STARTER ASSEMBLY (MERC 60-3 AND MERC 60-4)

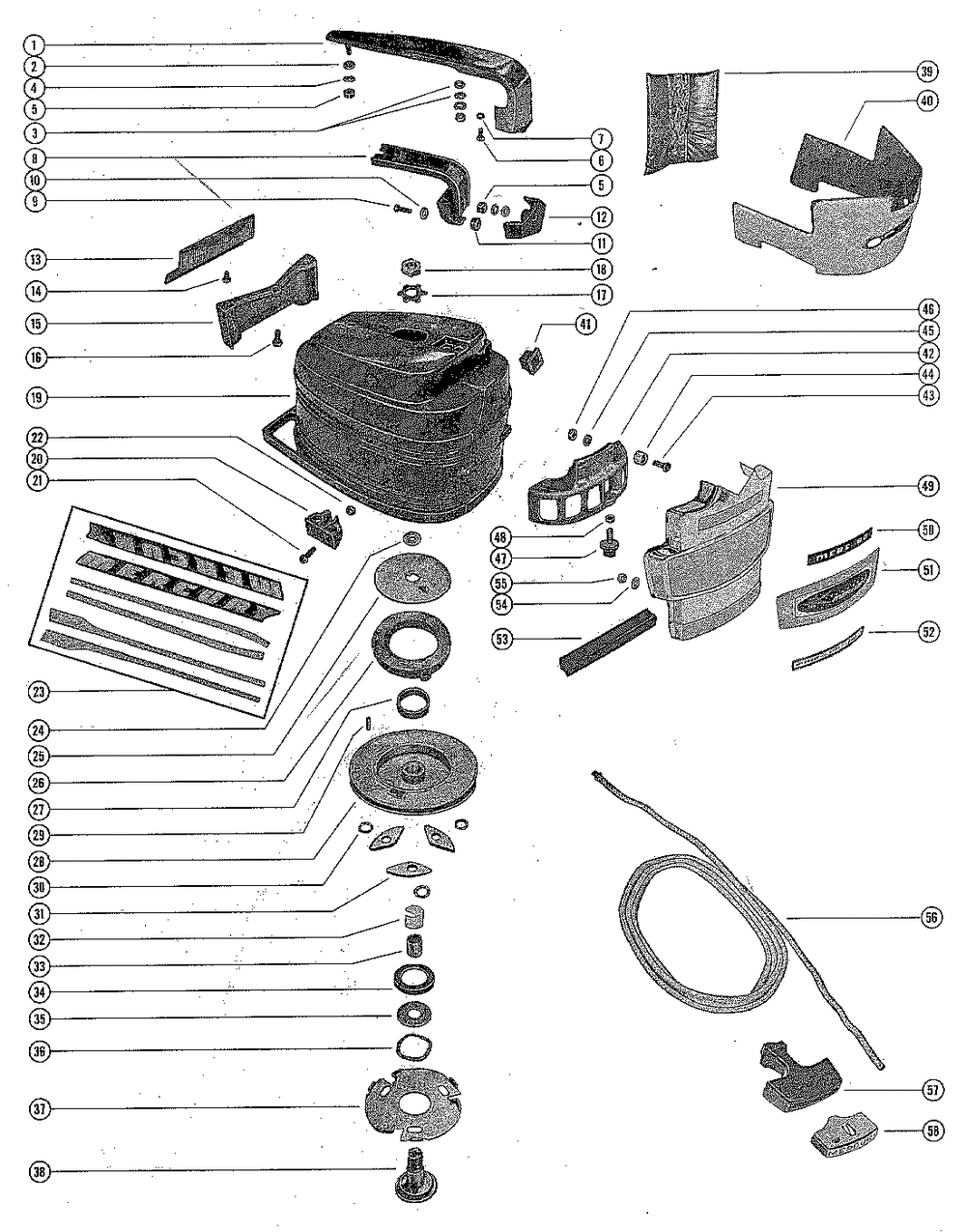

TOP COWL AND STARTER ASSEMBLY (MERC 60-3 AND MERC 60-4)
№ Наименование Примечание Кол-во
1 HANDLE 11
2 WASHER @5 (5 per pack) 11
3 WASHER (10 per pack) 33
4 LOCKWASHER @5 (5 per pack) 22
4 WASHER @5 (5 per pack) 11
5 NUT @5 (5 per pack) 11
5 NUT @5 (5 per pack) 22
6 SCREW @5 (5 per pack) 11
8 HANDLE 11
9 SCREW @5 (5 per pack) 11
11 NUT @5 (5 per pack) 11
12 KEY 11
13 SCREEN 11
14 SCREW @4 (4 per pack) 22
15 BRACKET 11
16 SCREW 33
17 WASHER-TAB @10 (10 per pack) 11
18 NUT @5 (5 per pack) 11
19 TOP COWL 11
20 BRACKET SERIAL 00187266-09999999 0
20 BRACKET SERIAL 00187266-09999999 0
20 BRACKET SERIAL 00000000-01872665 11
20 BRACKET SERIAL 00000000-01872665 11
21 SCREW @5 (5 per pack) 44
22 NUT W/LW @5 (5 per pack) 44
23 DECAL SET 0
23 DECAL SET 1
24 WASHER (USED ON EARLY PRODUCTION ENGINES ONLY) 1
25 RETAINER 11
26 SPRING-RECOIL 11
27 BUSHING 11
28 SHEAVE ASSY 11
29 PIN-ROLL @5 (5 per pack) 11
30 WASHER-WAVE @5 SERIAL 01858009-09999999 (5 per pack) 33
31 PAWL @2 (2 per pack) 33
32 BUSHING @3 (3 per pack) 11
33 SHAFT ASSY 1
33 SPACER 11
34 RETAINER 11
35 WASHER 1
35 WASHER @2 (2 per pack) 11
36 WASHER-WAVE @5 (5 per pack) 11
37 PLATE RETAINER - STARTER PAWLER (MANUAL) 11
38 SHAFT 1
38 SHAFT 11
39 BLANKET 11
40 BLANKET 11
41 GUIDE NOTE: ORDER A-37938 ROPE GUIDE INSERT FOR ALL MERC 200-1 AND MERC 200L-1 ENGINES. 0
42 BRACKET 11
43 SCREW @5 (5 per pack) 22
44 SPACER 22
47 MOUNT 11
49 COWL FRONT COVER 1
50 DECAL 1
51 DECAL 1
52 DECAL 0
53 STRIP 11
56 ROPE-STARTR @2 (2 per pack) 11
57 HANDLE 11
58 RETAINER KIT-ROPE 11
