GEAR HOUSING ASSEMBLY COMPLETE (G6)

Корзина пуста
Mercury 650 (3 CYL.) 7073473 THRU 7087822 650 (3 CYL.) 7073473 THRU 7087822 GEAR HOUSING ASSEMBLY COMPLETE (G6)

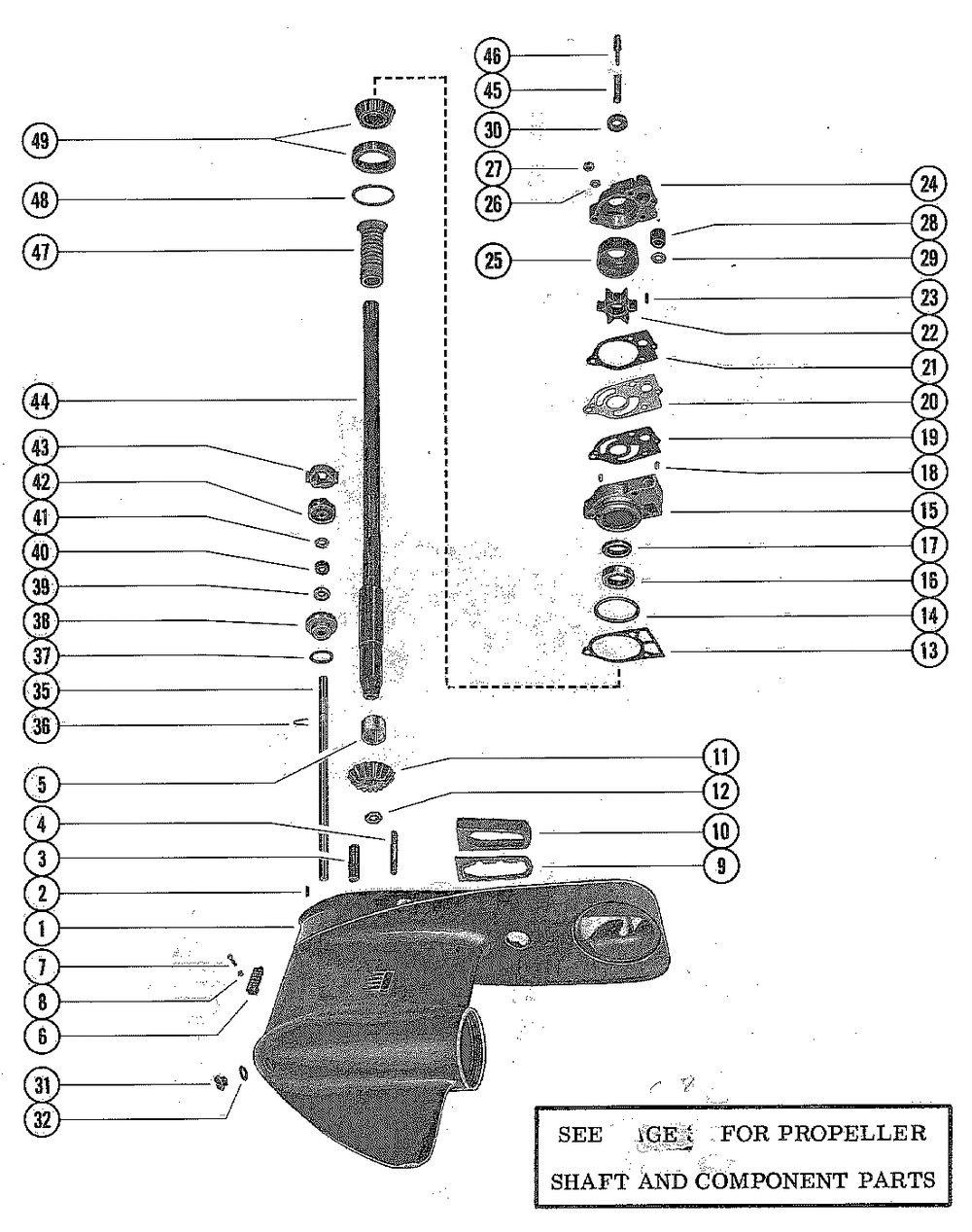

GEAR HOUSING ASSEMBLY COMPLETE (G6)
№ Наименование Примечание Кол-во
- GEAR HOUSING SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259240-UP BELGM 9096014-UP CAN 7058208-UP U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOW 1
- GEAR HOUSING SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259240-UP BELGM 9096014-UP CAN 7058208-UP U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOW 1
1 GEAR HOUSING ASSY SEE PAGE 31 FOR BREAKDOWN UNITED STATES 3346835 THRU 3474577 AUSTRALIA 8002335 THRU 8004329 BELGIUM 3339688 THRU 9005203 CANADA 3340783 THRU 7006600 1
2 PIN-DOWEL 2
3 STUD 3
4 STUD 2
5 BEARING 1
6 SCREEN ASSY UNITED STATES 3474578 AND UP AUSTRALIA 8004360 AND UP BELGIUM 9005204 AND UP CANADA 7006601 AND UP 1
6 ORD 72849A 1 UNITED STATES 3474578 AND UP AUSTRALIA 8004360 AND UP BELGIUM 9005204 AND UP CANADA 7006601 AND UP 1
6 SCREEN ASSY 1
7 SCREW @5 (5 per pack) 1
8 NUT @2 (2 per pack) 1
9 PLATE 1
10 SEAL @2 (2 per pack) 1
11 PINION GEAR 1
12 NUT @5 (5 per pack) 1
13 GASKET @5 (5 per pack) 1
14 O RING @4 (4 per pack) 1
15 BASE ASY-WTR PMP UNITED STATES 4362215 AND UP AUSTRALIA 8036450 AND UP BELGIUM 9108564 AND UP CANADA 7070273 AND UP 1
16 SEAL 1
17 SEAL @2 (2 per pack) 1
18 PIN-DOWEL @5 (5 per pack) 2
19 GASKET @5 (5 per pack) 1
20 FACEPLATE 1
21 GASKET @5 (5 per pack) 1
22 IMPELLER 1
23 KEY @5 (5 per pack) 1
24 BODY ASSY-W/P 1
25 INSERT 1
26 WASHER (10 per pack) 3
27 NUT @5 (5 per pack) 3
28 SEAL @2 (2 per pack) 1
29 WASHER @3 (3 per pack) 1
30 O RING @5 (5 per pack) 1
31 SCREW-DRAIN @2 (2 per pack) 2
32 SEAL-BLUE @15 (15 per pack) 2
35 SHIFT SHAFT ASSY UNITED STATES 4275245 THRU 4564001 AUSTRALIA 8033705 THRU 8041799 BELGIUM 9099814 THRU 9135224 CANADA 7059933 THRU 7086372 1
36 E RING @2 (2 per pack) 1
37 O RING @5 (5 per pack) 1
38 BUSHING ASSY 1
39 SEAL @2 (2 per pack) 1
40 SEAL 1
41 WASHER @5 (5 per pack) 1
42 BASE @3 NOT USED WITH FULL POWER TRIM (3 per pack) 1
43 CAM UNITED STATES 4275245 THRU 4564001 AUSTRALIA 8033705 THRU 8041799 BELGIUM 9099814 THRU 9135224 CANADA 7059933 THRU 7086372 1
44 DRIVE SHAFT ASSY UNITED STATES 4564001 AND BELOW AUSTRALIA 8041799AND BELOW BELGIUM 9135224 AND BELOW CANADA 7086372 AND BELOW 1
44 DRIVE SHAFT ASSY UNITED STATES 4564001 AND BELOW AUSTRALIA 8041799AND BELOW BELGIUM 9135224 AND BELOW CANADA 7086372 AND BELOW 1
45 SPRING 1
46 PIN @3 (3 per pack) 1
47 SLEEVE 1
48 SHIM SET 0
49 BEARING 1
