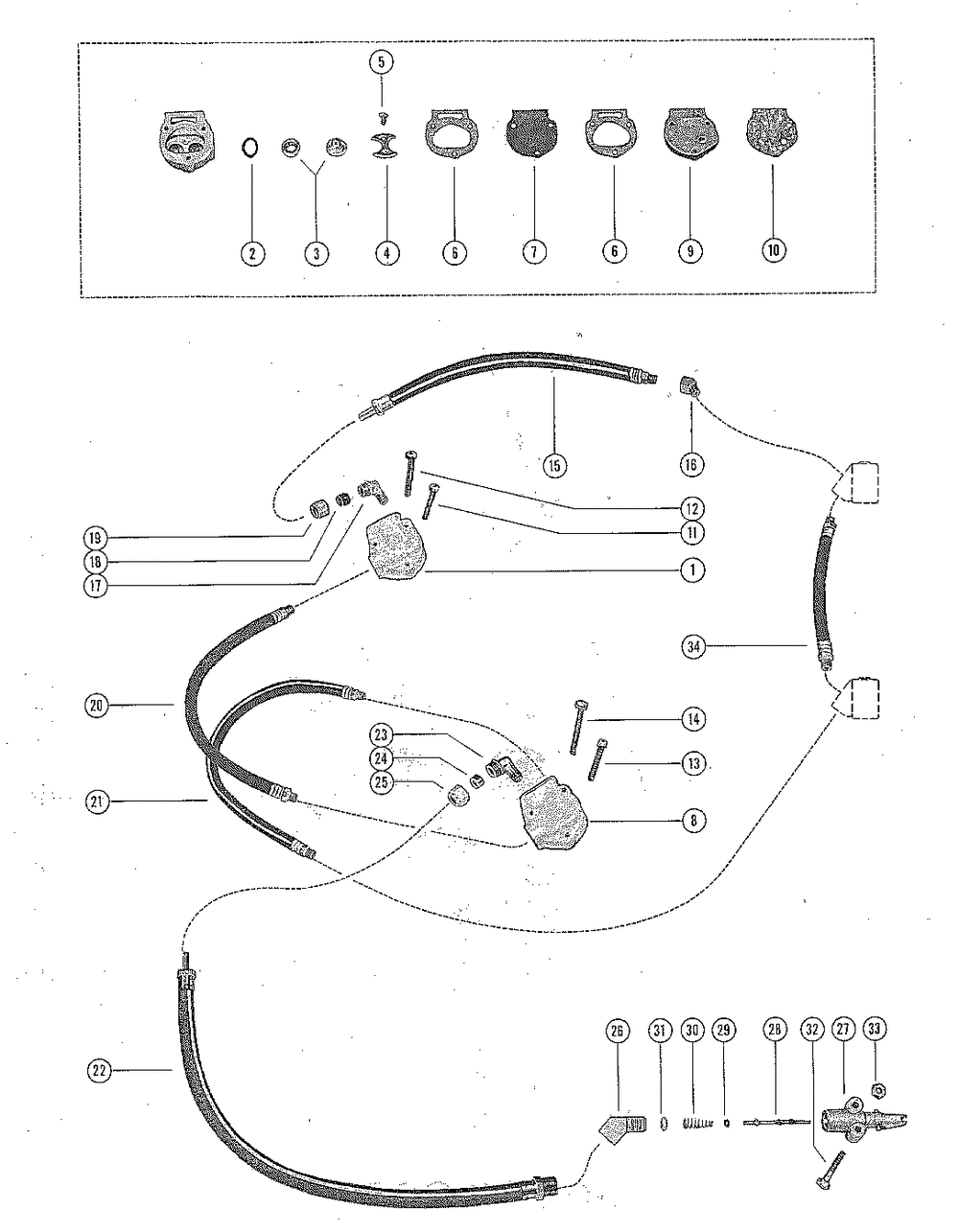

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL PUMP ASSY | 11 | |
| 2 | GASKET | 22 | |
| 3 | CHECK VALVE | 22 | |
| 4 | RETAINER | 11 | |
| 5 | SCREW | 22 | |
| 6 | GASKET-FUEL PUMP | 22 | |
| 7 | DIAPHRAGM | 11 | |
| 8 | FUEL PUMP ASSY | 11 | |
| 9 | COVER | 22 | |
| 10 | GASKET-PUMP COVER | 22 | |
| 11 | SCREW @5 (5 per pack) | 11 | |
| 12 | SCREW @5 (5 per pack) | 22 | |
| 13 | SCREW | 11 | |
| 14 | SCREW | 22 | |
| 15 | FUEL LINE | 11 | |
| 16 | FITTING SNtahos_ 5866776 & Below | 11 | |
| 17 | ELBOW | 11 | |
| 18 | FITTING @5 (5 per pack) | 11 | |
| 19 | NUT | 11 | |
| 20 | FUEL LINE | 11 | |
| 21 | FUEL LINE | 11 | |
| 22 | FUEL LINE | 11 | |
| 26 | ELBOW | 11 | |
| 27 | ADAPTER IDENTIFIED BY 30186 CASTING ON REF. tahos_28 | 11 | |
| 28 | ORD 30185Q 3 | 11 | |
| 29 | O RING @2 (2 per pack) | 11 | |
| 30 | SPRING @5 (5 per pack) | 11 | |
| 31 | WASHER-CUP @3 (3 per pack) | 11 | |
| 32 | SCREW @5 (5 per pack) | 22 | |
| 33 | NUT @5 (5 per pack) | 22 | |
| 34 | FUEL LINE | 11 |
