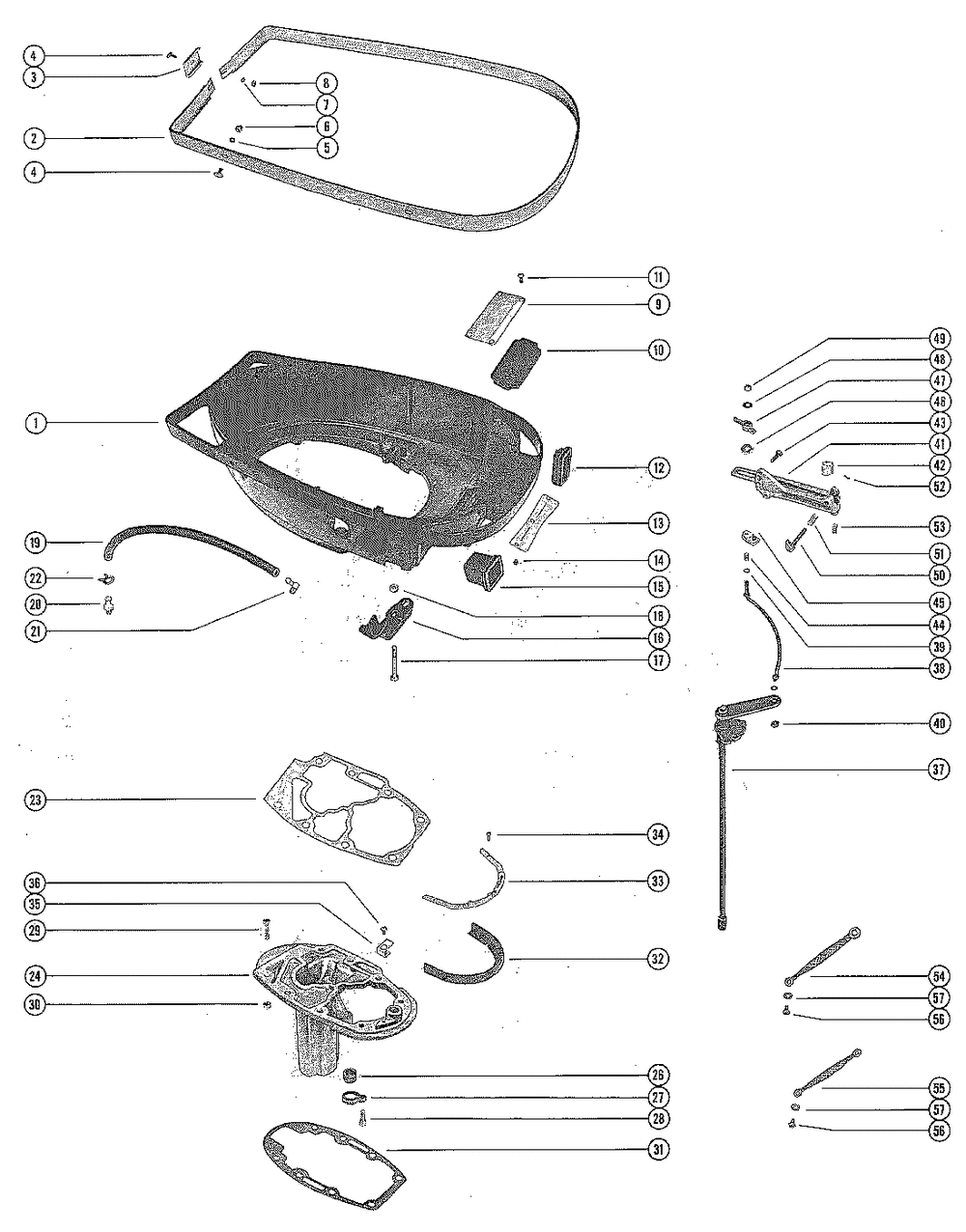

Mercury 650 (4 CYL.) 2119749 THRU 2309310 650 (4 CYL.) 2119749 THRU 2309310 BOTTOM COWL AND SHIFT LINKAGE
BOTTOM COWL AND SHIFT LINKAGE
№ Наименование Примечание Кол-во
1 BOTTOM COWL SERIAL 02208678-09999999 11
2 MOULDING ASSY 11
3 SPLICER 11
4 SCREW @5 (5 per pack) 55
5 WASHER @5 (5 per pack) 22
6 NUT @2 (2 per pack) 22
7 LOCKWASHER @5 (5 per pack) 33
8 NUT @5 (5 per pack) 33
9 PLATE ASSY 11
10 PAD 11
11 SCREW @5 (5 per pack) 44
12 BOOT 11
13 BAFFLE 11
14 SCREW @5 (5 per pack) 33
15 BOOT 11
16 SUPPORT 11
17 SCREW @5 (5 per pack) 0
17 SCREW UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW 2
17 SCREW @5 (5 per pack) 0
18 NUT @5 (5 per pack) 22
19 HOSE-57 INCH 11
20 FITTING 11
21 ELBOW 11
22 CLAMP 22
23 GASKET 11
24 PLATE ASSY 11
26 SEAL @5 (5 per pack) 11
27 RETAINER SERIAL 01809704-09999999 11
28 SCREW SERIAL 01809704-09999999 11
29 SCREW @5 (5 per pack) 11
31 GASKET 11
32 SEAL 11
33 RETAINER 11
34 SCREW @5 (5 per pack) 55
35 BRACKET 11
36 SCREW PART OF A-2129-3728A2 BOTTOM COWL ASSEMBLY 11
37 SHAFT ASSY 11
37 SHAFT ASSY 11
38 LINK ASSY 11
39 WASHER-WAVE @5 (5 per pack) 22
40 NUT @5 (5 per pack) 11
41 BRACKET KIT 11
42 CAP SERIAL 01850449-09999999 11
43 SCREW @5 (5 per pack) 33
44 SPRING @5 (5 per pack) 11
45 BLOCK 11
46 WASHER 11
47 LATCH 11
48 WASHER 11
50 LEVER ASSY 11
51 SPRING 11
52 PIN-ROLL @5 (5 per pack) 11
53 SPRING 0
54 STRAP ASSY @2 (2 per pack) 0
55 STRAP ASSY @2 (2 per pack) 0
56 SCREW @5 (5 per pack) 0
57 LOCKWASHER @5 (5 per pack) 0
