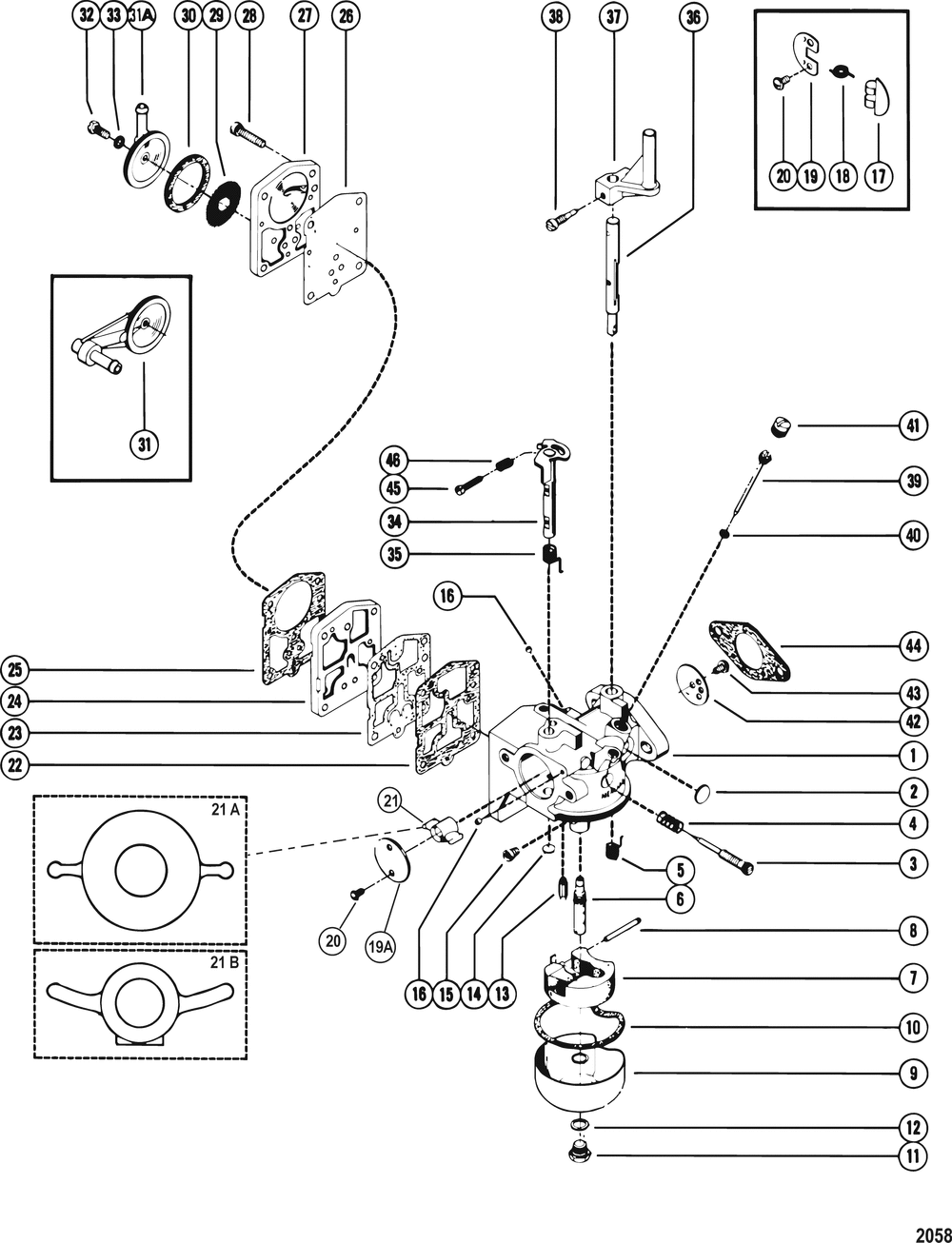

CARBURETOR ASSEMBLY COMPLETE

Корзина пуста
Mercury 75 3801458 THRU 4851692 75 3801458 THRU 4851692 CARBURETOR ASSEMBLY COMPLETE
CARBURETOR ASSEMBLY COMPLETE
№ Наименование Примечание Кол-во
-- REPAIR KIT-CARB UNITED STATES 4131610 THRU 4314384 AUSTRALIA 8028840 THRU 8035569 BELGIUM 9079489 THRU 9102613 CANADA 7050208 THRU 7065472 1
-- NLA UNITED STATES 4085865 THRU 4131609 AUSTRALIA 8024690 THRU 8028839 BELGIUM 9068874 THRU 9079488 CANADA 7043133 THRU 7050207 1
-- DIAPH/GASKET KIT 1
-- REPAIR KIT-CARB 1
-- REPAIR KIT-CARB UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP 1
-- GASKET SET 1
-- REPAIR KIT-CARB UNITED STATES 4314385 THRU 4397536 AUSTRALIA 8035570 THRU 8038449 BELGIUM 9102614 THRU 9115164 CANADA 7065473 THRU 7076122 1
1 CARBURETOR 1
1 CARBURETOR UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP 1
1 CARBURETOR UNITED STATES 4131610 THRU 4248574 AUSTRALIA 8028840 THRU 8031714 BELGIUM 9079489 THRU 9092863 CANADA 7050208 THRU 7056957 1
1 CARBURETOR UNITED STATES 4085865 THRU 4131609 AUSTRALIA 8024690 THRU 8028839 BELGIUM 9068874 THRU 9079488 CANADA 7043133 THRU 7050207 1
1 CARBURETOR UNITED STATES 4248575 THRU 4314384 AUSTRALIA 8031715 THRU 8035569 BELGIUM 9092864 THRU 9102613 CANADA 7056958 THRU 7065472 1
7 FLOAT ASSY 1
9 BOWL-FUEL (WMA-7B) 1
11 SCREW UNITED STATES 4102789 AND BELOW AUSTRALIA 8026164 AND BELOW BELGIUM 9070128 AND BELOW CANADA 7044782 AND BELOW 1
13 INLET NEEDLE UNITED STATES 4102789 AND BELOW AUSTRALIA 8026164 AND BELOW BELGIUM 9070128 AND BELOW CANADA 7044782 AND BELOW 2
13 NEEDLE-INLET UNITED STATES 4102790 THRU 4351589 AUSTRALIA 8026165 THRU 8036049 BELGIUM 9070129 THRU 9104813 CANADA 7044783 THRU 7067847 1
15 JET-.032 WMV-7 LEFT BORE 1
15 JET .034 (150) (Starboard) 1
15 JET-.045 1
17 RELIEF VALVE 1
18 SPRING UNITED STATES 4102789 AND BELOW AUSTRALIA 8026164 AND BELOW BELGIUM 9070128 AND BELOW CANADA 7044782 AND BELOW 1
19 CHOKE SHUTTER 1
19A CHOKE SHUTTER UNITED STATES 4079000 AND UP AUSTRALIA 8023990 AND UP BELGIUM 9068374 AND UP CANADA 7042123 AND UP 1
20 NLA 2
21A VENTURI 1
21B VENTURI UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP 1
24 BODY-FUEL PUMP 1
27 STRAINER BODY 1
28 SCREW & WASHER WMH-19 4
29 SCREEN UNITED STATES 4102789 AND BELOW AUSTRALIA 8026164 AND BELOW BELGIUM 9070128 AND BELOW CANADA 7044782 AND BELOW 1
31 COVER ASSY UNITED STATES 4102789 AND BELOW AUSTRALIA 8026164 AND BELOW BELGIUM 9070128 AND BELOW CANADA 7044782 AND BELOW 1
31A COVER 1
34 SHAFT & LEVER UNITED STATES 4079000 THRU 4126459 AUSTRALIA 8023990 THRU 8028439 BELGIUM 9068374 THRU 9078138 CANADA 7042123 THRU 7049107 1
34 CHOKE SHAFT UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP 1
34 SHAFT AND LEVER 1
36 THROTTLE SHAFT 1
37 LEVER 1
38 SCREW 1
41 SCREW 1
42 THROTTLE SHUTTER UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 1
42 THROTTLE SHUTTER UNITED STATES 4079000 AND UP AUSTRALIA 8023990 AND UP BELGIUM 9068374 AND UP CANADA 7042123 AND UP 1
44 GASKET @3 (3 per pack) 1
