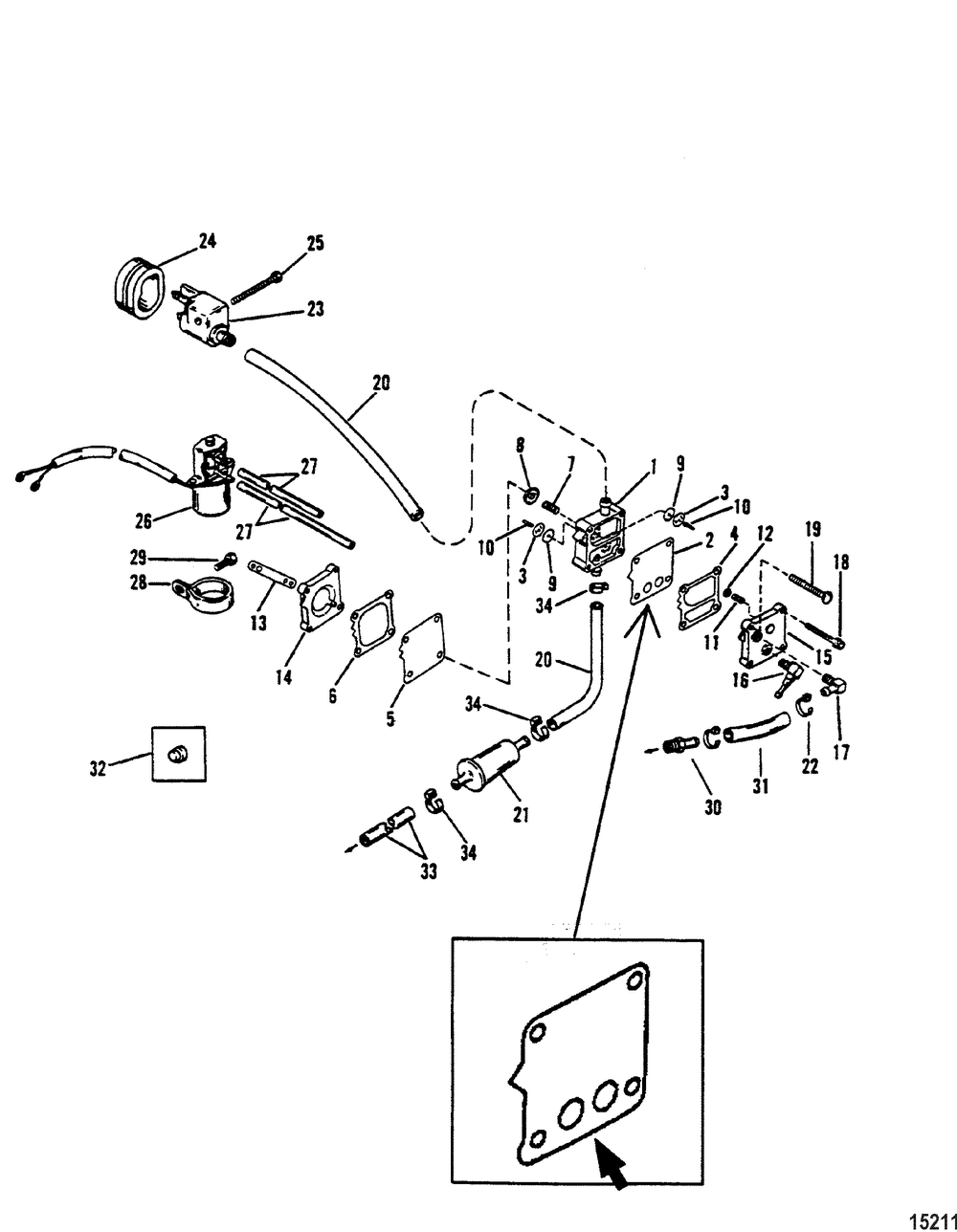

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | GASKET SET | 1 | |
| 1 | PUMP KIT-FUEL | 1 | |
| 2 | DIAPHRAGM KIT | 1 | |
| 13 | GASKET | 1 | |
| 14 | BASE | 1 | |
| 15 | PLATE ASSY | 1 | |
| 16 | VALVE-CHECK | 1 | |
| 17 | FITTING | 1 | |
| 18 | SCREW | 2 | |
| 19 | SCREW | 2 | |
| 20 | HOSE-70 INCH | 2 | |
| 21 | FILTER-FUEL @3 (3 per pack) | 1 | |
| 22 | TIE STRAP @100 (100 per pack) | 0 | |
| 23 | CONNECTOR @2 (2 per pack) | 1 | |
| 24 | GROMMET | 1 | |
| 25 | SCREW | 1 | |
| 26 | SOLENOID KIT | 1 | |
| 27 | TUBING-38 INCH | 2 | |
| 28 | CLAMP (1.10) | 1 | |
| 29 | SCREW | 1 | |
| 30 | FITTING | 1 | |
| 31 | HOSE-57 INCH | 1 | |
| 32 | PLUG-PIPE | 1 | |
| 33 | LINE KIT-FUEL (Oil Injection) | 1 | |
| 34 | CLAMP | 4 |
