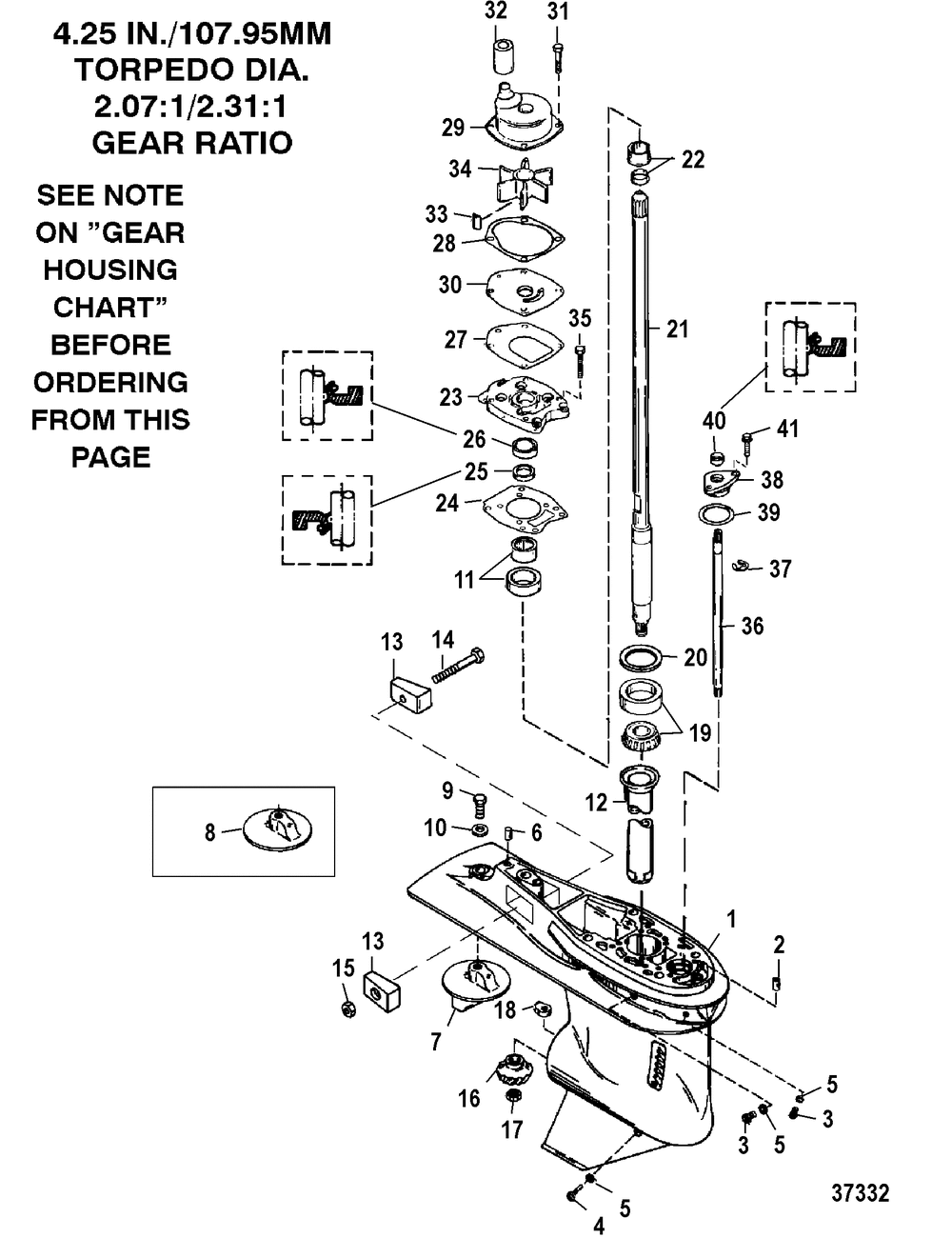

GEAR HOUSING(DRIVESHAFT)(3 JAW REVERSE CLUTCH)

Корзина пуста
Mercury 125 (4 CYL.) 0D283222 THRU 0G760299 125 (4 CYL.) 0D283222 THRU 0G760299 GEAR HOUSING(DRIVESHAFT)(3 JAW REVERSE CLUTCH)
GEAR HOUSING(DRIVESHAFT)(3 JAW REVERSE CLUTCH)
№ Наименование Примечание Кол-во
- GASKET SET 1
- SEAL KIT 1
- ORD 8M0113799 1
1 GEAR HSG-BASIC-BL (BLACK) 1
1 ORD 1667-9011T73 (GRAY) 1
1 ORD 1667-9011T73 (TRACKER-GRAPHITE GRAY) 1
2 PIN - DOWEL X-LONG 1
3 SCREW-DRAIN @2 (2 per pack) 2
4 SCREW KIT @2 (2 per pack) 1
5 SEAL-BLUE @15 (15 per pack) 3
6 PIN-DOWEL-SOLID 1
7 ANODE/TRIM TAB (USE W/GH W/O ANODES) 1
8 TRIM TAB (USE W/GH WITH ANODES) 1
9 SCREW 1
10 WASHER @5 (5 per pack) 1
11 CARRIER ASSY 1
12 TUBE-OILER 1
13 ANODE @3 DESIGN II (3 per pack) 2
14 SCREW @5 (5 per pack) 1
15 NUT @5 (5 per pack) 1
16 GEAR SET (2.07:1 GEAR RATIO - 14 TEETH) 1
16 GEAR-PINION (HIGH ALTITUDE) (2.31:1 GEAR RATIO - 13 TEETH) 1
17 NUT @5 (5 per pack) 1
18 CAM-SHIFT @2 (2 per pack) 1
19 BEARING KIT 1
20 ORD 15-8M0063265 1
21 D SHAFT ASSY-XL (X-LONG) 1
21 D SHAFT ASSY-L (LONG) 1
22 SLEEVE/RING KIT 1
23 ORD 8M0113262 1
24 GASKET 1
25 SEAL 1
26 SEAL 1
27 GASKET 1
28 GASKET 1
29 HOUSING-W/P UPPER 1
30 FACEPLATE-W/P 1
31 SCREW 4
32 SEAL 1
33 KEY 1
34 IMPELLER-W/P 1
35 SCREW 6
36 SHAFT KIT-XL (X-LONG) 1
36 SHAFT KIT-SHIFT (LONG) 1
37 E RING @2 (2 per pack) 1
38 BUSHING KIT 1
39 O RING @5 (5 per pack) 1
40 SEAL 1
